FBD (Function Block Diagram).
LD (Ladder Diagram).
After that you will see a newly created device in the project tree.
3.4 Device properties
To open device properties double-click on a device in the project tree.
The properties will appear in the middle of the screen:
You can set the following settings:
1. "Release coefficient in comparison operations" – for details see
3 .9.7.
16

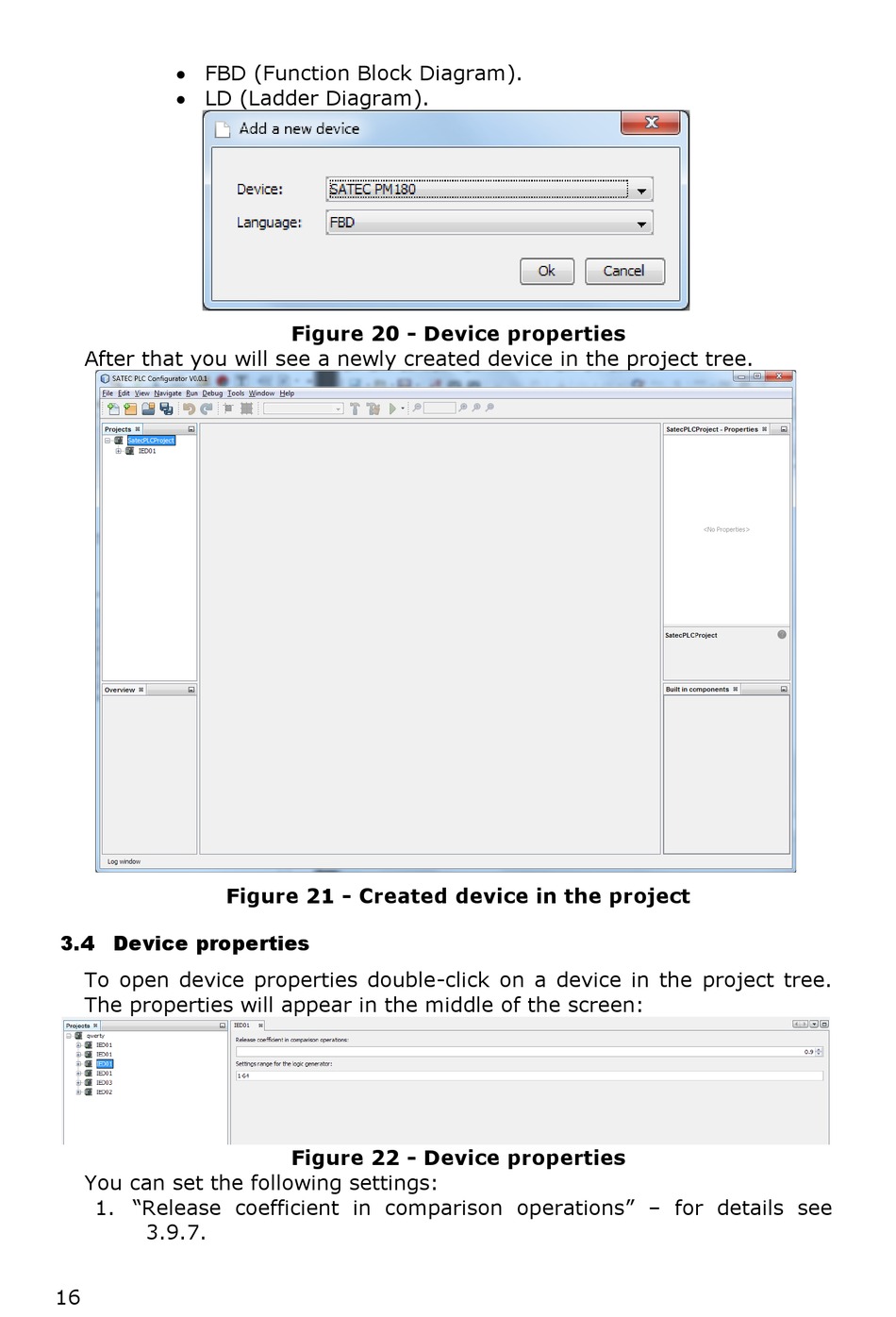

Figure 20 - Device properties
Figure 21 - Created device in the project
Figure 22 - Device properties
