Sharp TL-M5200 Setup Manual page 36

Multi Screen Projection
■ Preparation
Follow the procedure below after setting up the basic connection.
•
• When "User Name" and "Password" have been set to the monitor, reset them before the stack projection
setup. To set "User Name" and "Password", use the same user name and password for both of the
master and slave monitors. (See page 18.)
• Set "Data Port" with the same number for both of the master and slave monitors. (See page 19.)
Info
• Do not use network software or equipment while it is accessing the monitor via the port of the same
number used for the master or slave monitor, otherwise you cannot properly control multiple monitors with
one remote control.
1
Change the TCP/IP settings for the
computer as shown below.
(See "Setting an IP Address for the Computer"
on page 12 for the details.)
•
IP address
•
Subnet mask
•
Default gateway : (Do not input any values.)
2
Change the TCP/IP settings for
each monitor as shown below.
(See "Setting up a Network Connection for the
Monitor" on page
•
IP address
•
Subnet mask
•
Default gateway
Monitor 1 : Master
LAN terminal
Monitor 3 : Slave
LAN terminal
-36
: 192.168.150.2
: 255.255.255.0
14 for the details.)
Monitor 1 : 192.168.150.3
Monitor 2 : 192.168.150.4
Monitor 3 : 192.168.150.5
Monitor 4 : 192.168.150.6
: 255.255.255.0
: 0.0.0.0
Monitor 2 : Slave
Monitor 4 : Slave
Note
• The TCP/IP settings shown are examples
to make connections following the dia-
gram.
• When using other equipment in the same
network, be careful about the IP address
overlap or other network settings.
• Consult your network administrator for as-
sistance with the network settings.

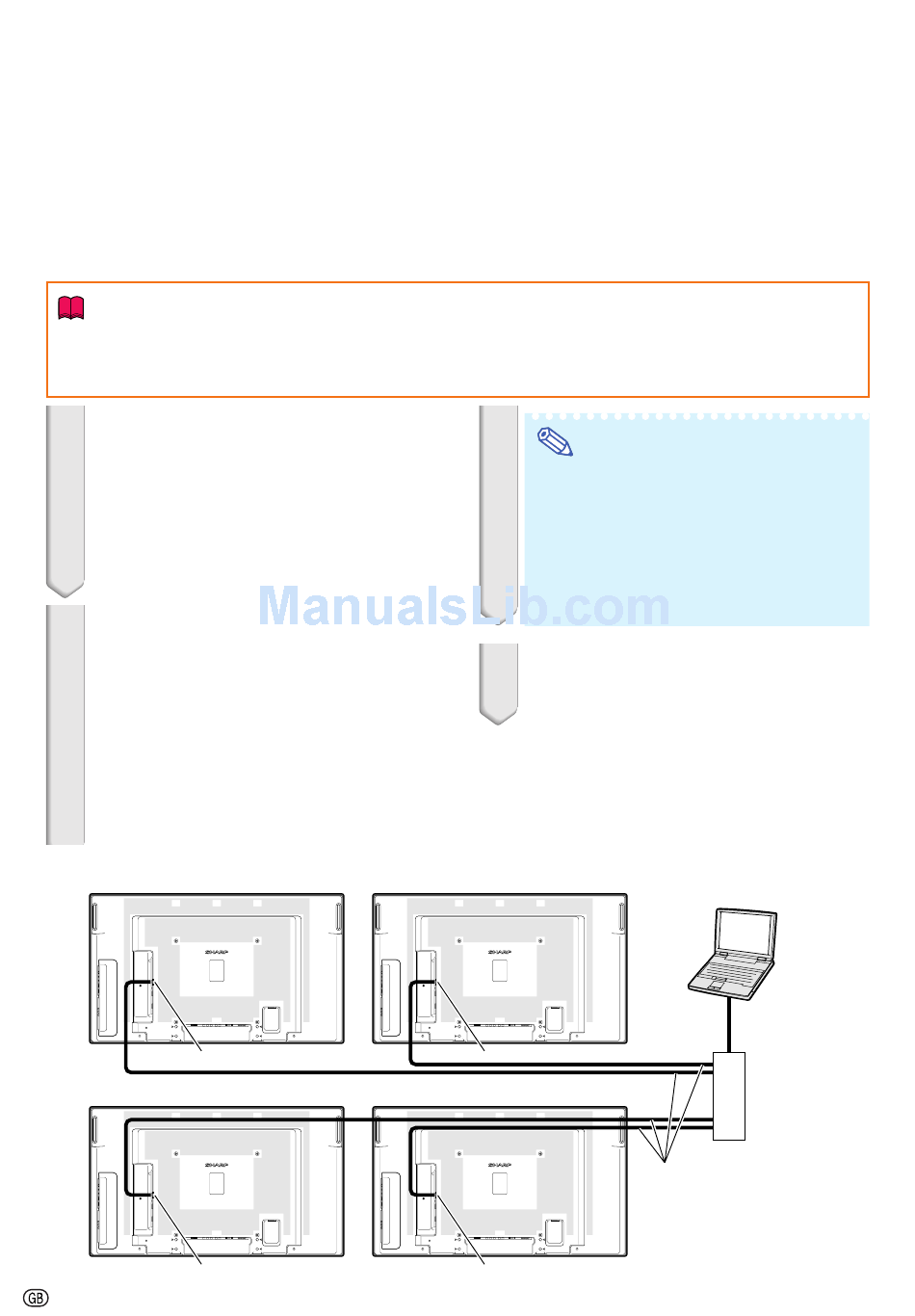

3
Connect the computer and the
monitors as shown below.
LAN terminal
LAN cable
(straight-through type)
LAN terminal
Computer
LAN cable
Hub
