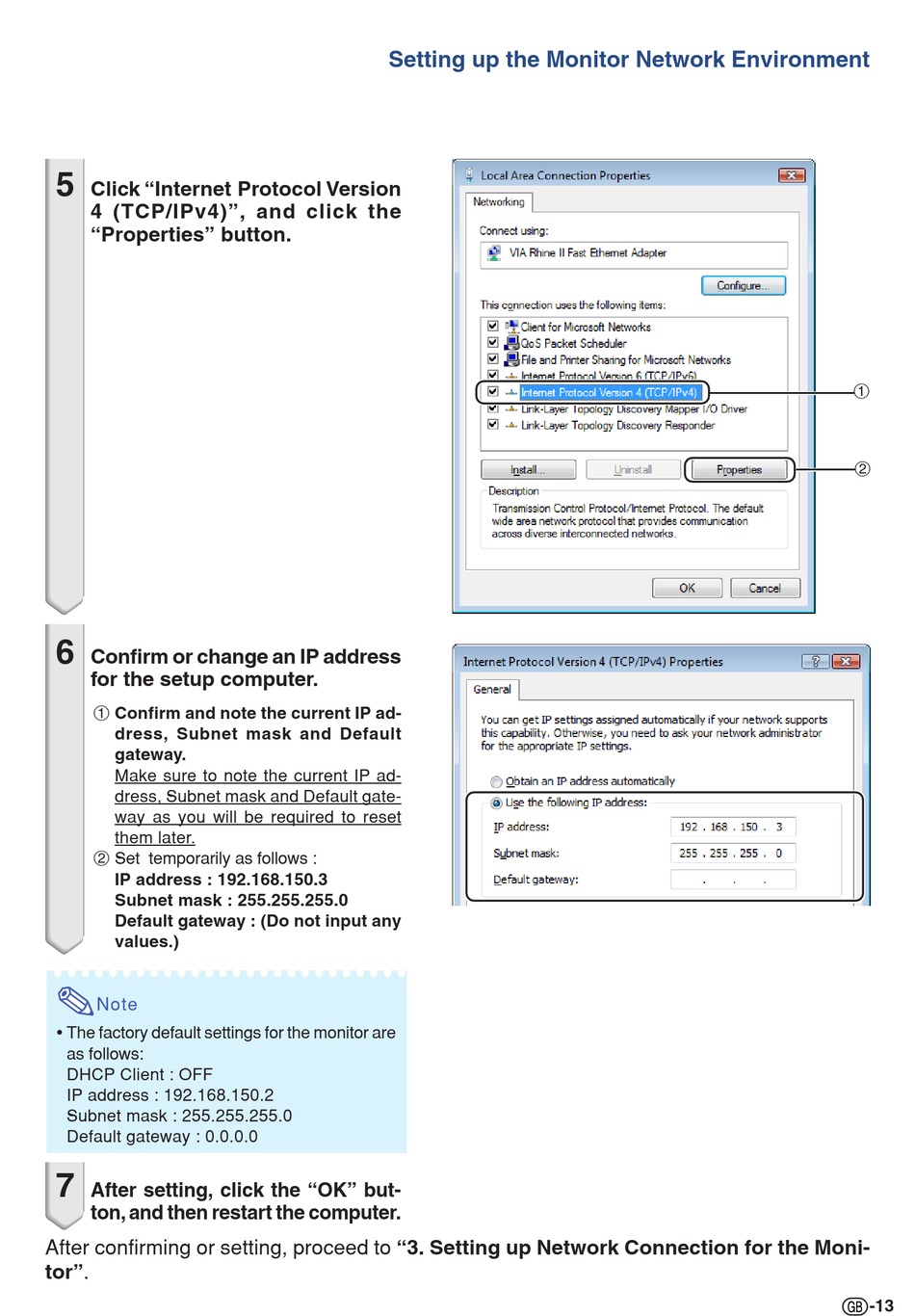

Sharp TL-M5200 Setup Manual page 13

5
Click "Internet Protocol Version
4 (TCP/IPv4)", and click the
"Properties" button.
6
Confirm or change an IP address
for the setup computer.
1 Confirm and note the current IP ad-
dress, Subnet mask and Default
gateway.
Make sure to note the current IP ad-
dress, Subnet mask and Default gate-
way as you will be required to reset
them later.
2 Set temporarily as follows :
IP address : 192.168.150.3
Subnet mask : 255.255.255.0
Default gateway : (Do not input any
values.)
Note
• The factory default settings for the monitor are
as follows:
DHCP Client : OFF
IP address : 192.168.150.2
Subnet mask : 255.255.255.0
Default gateway : 0.0.0.0
7
After setting, click the "OK" but-
ton, and then restart the computer.
After confirming or setting, proceed to "3. Setting up Network Connection for the Moni-
tor".
Setting up the Monitor Network Environment
1
2
-13
