Multi Screen Projection

Setting up the Multi Screen Projection Input Signal

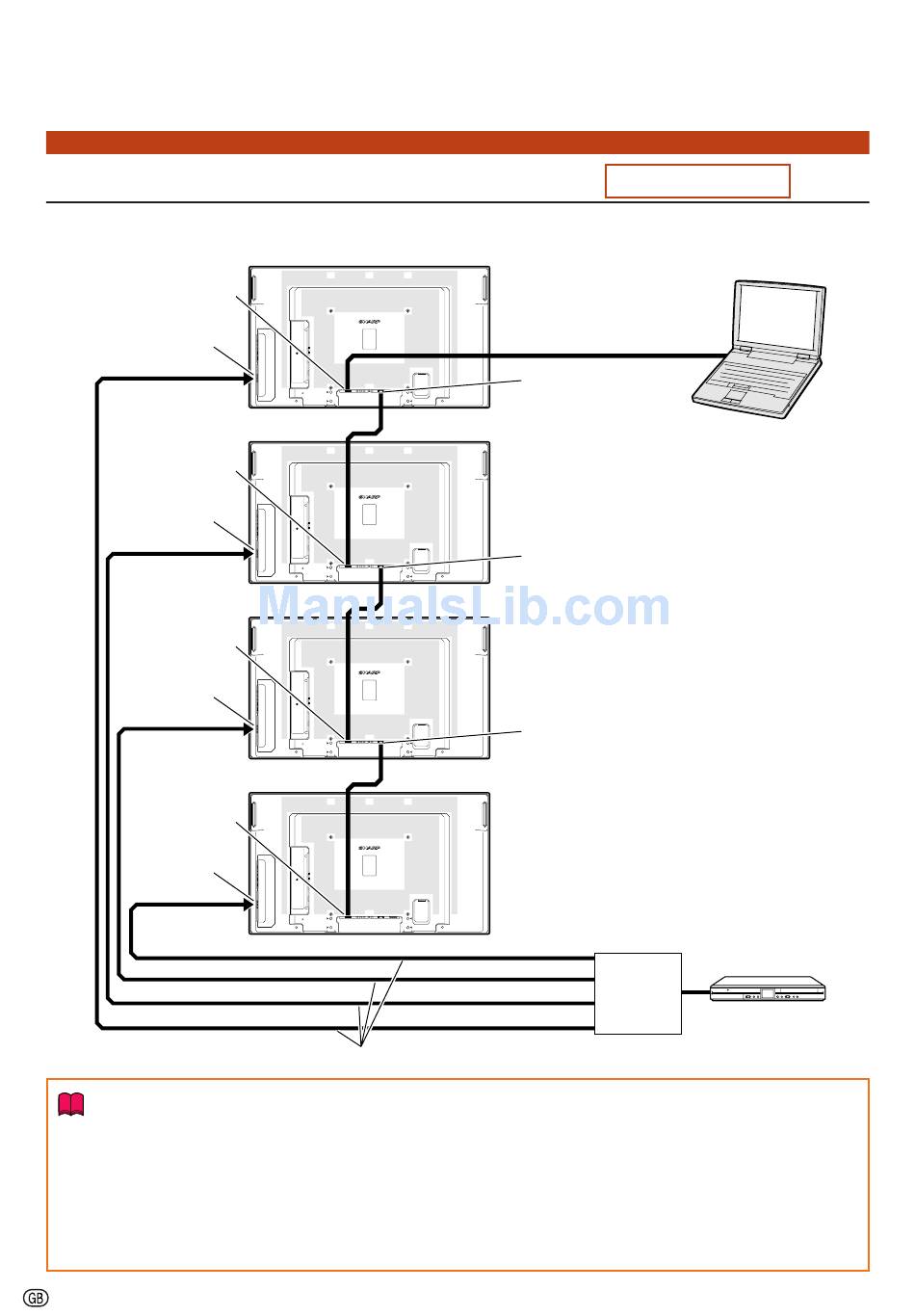

Following is an example of how to use 4 monitors.
Monitor 1
COMPUTER
IN 1 terminal
VIDEO IN
terminal
Monitor 2
COMPUTER
IN 1 terminal
VIDEO IN
terminal
Monitor 3
COMPUTER
IN 1 terminal
VIDEO IN
terminal
Monitor 4
COMPUTER
IN 1 terminal
VIDEO IN
terminal
Info
• Depending on the input signal, Auto Sync adjustment of the multi screen projection using the MONITOR
OUT terminal may not be possible. Note the following.
- The multi screen projection is not compatible with resolutions higher than SXGA.
- Adjust "H-Position", "V-Position", "Clock" and "Phase" manually. (See page 37 of the monitor's operation
manual.)
- If the image quality deteriorates, use a distributor (commercially available).
• For the VIDEO, S-VIDEO, DVI-D or HDMI signal, use a distributor (commercially available).
-32
RGB cable
RGB cable
RGB cable
Composite video cable
RGB cable
MONITOR OUT
terminal
MONITOR OUT
terminal
MONITOR OUT
terminal
Distributor
Computer
Video equipment
