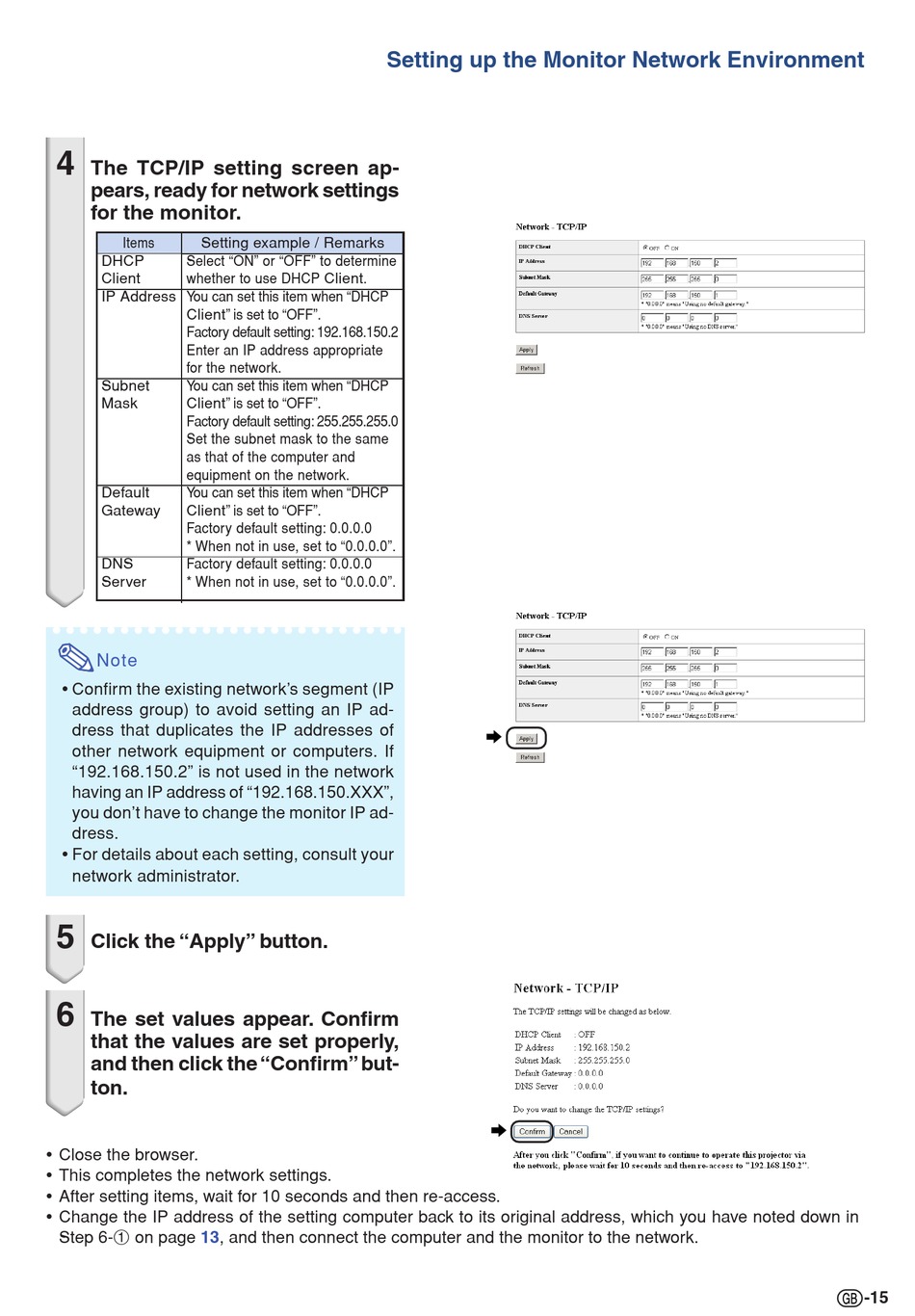

Sharp TL-M5200 Setup Manual page 15

4
The TCP/IP setting screen ap-
pears, ready for network settings
for the monitor.
Items Setting example / Remarks
DHCP Select "ON" or "OFF" to determine
Client whether to use DHCP Client.
IP Address You can set this item when "DHCP
Client" is set to "OFF".
Factory default setting: 192.168.150.2
Enter an IP address appropriate
for the network.
Subnet You can set this item when "DHCP
Mask Client" is set to "OFF".
Factory default setting: 255.255.255.0
Set the subnet mask to the same
as that of the computer and
equipment on the network.
Default You can set this item when "DHCP
Gateway Client" is set to "OFF".
Factory default setting: 0.0.0.0
* When not in use, set to "0.0.0.0".
DNS
Factory default setting: 0.0.0.0
Server * When not in use, set to "0.0.0.0".
Note
• Confirm the existing network's segment (IP
address group) to avoid setting an IP ad-
dress that duplicates the IP addresses of
other network equipment or computers. If
"192.168.150.2" is not used in the network
having an IP address of "192.168.150.XXX",
you don't have to change the monitor IP ad-
dress.
• For details about each setting, consult your
network administrator.
5
Click the "Apply" button.
6
The set values appear. Confirm
that the values are set properly,
and then click the "Confirm" but-
ton.
• Close the browser.
• This completes the network settings.
• After setting items, wait for 10 seconds and then re-access.
• Change the IP address of the setting computer back to its original address, which you have noted down in
Step 6-1 on page 13, and then connect the computer and the monitor to the network.
Setting up the Monitor Network Environment
