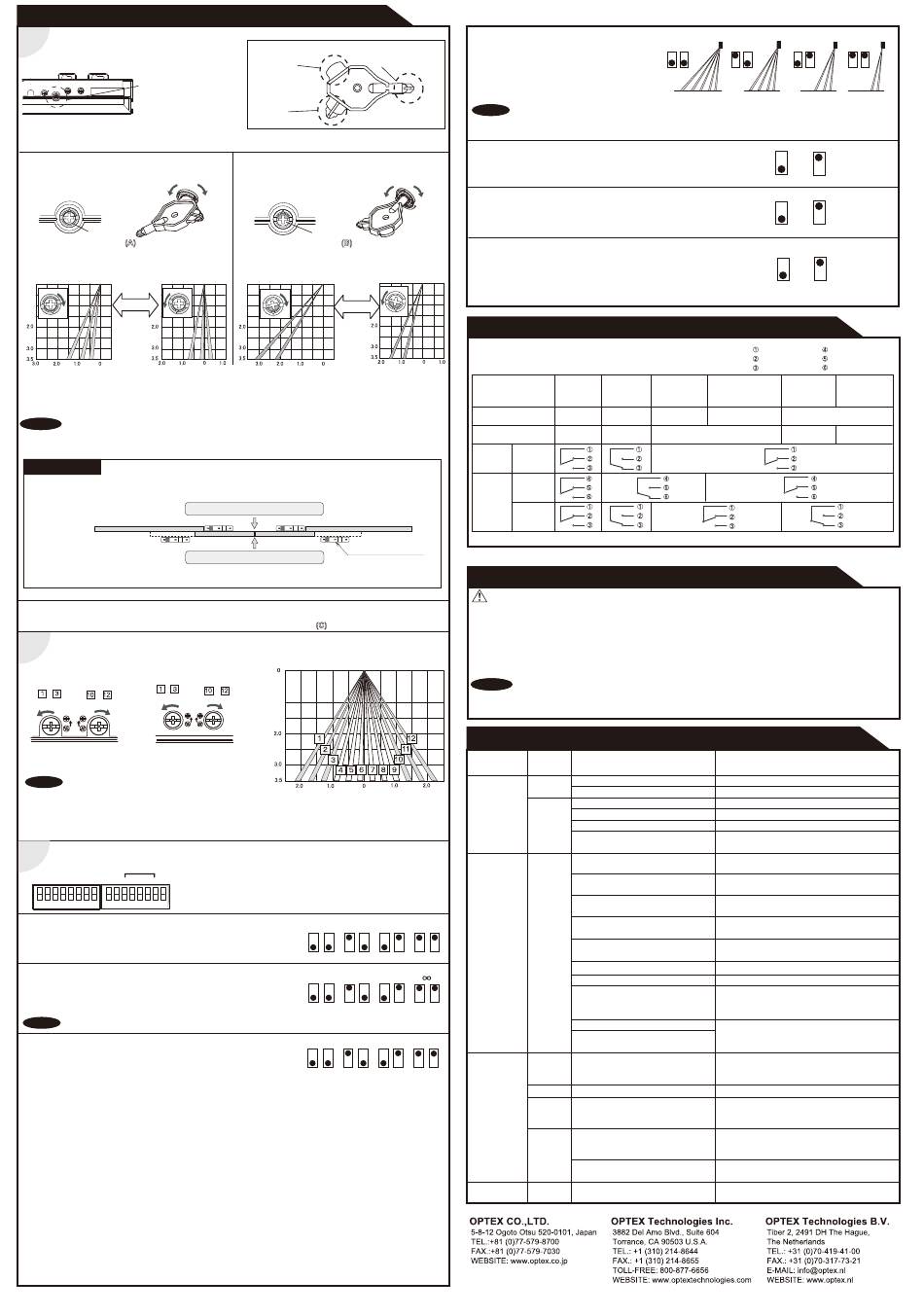

ADJUSTMENTS
1
Area depth angle adjustment
Depth angle
adjustment screw
The detection area depth can be changed by
the area adjustment tool.
When adjusting the 1st to 3rd rows close to the door, follow 3-7 Installation mode.
1-1. Independent adjustment
1st to 3rd rows
Shallow
Depth angle adjustment screw
for 1st to 3rd rows
Red
Use the area adjustment tool (A) as shown above and
change the depth of the detection area by turning the depth
angle adjustment screw.
[m]
Deep Shallow
Check the area position with Red LED of the Operation LED using a tool such as a reflecting mirror.
Make sure the detection area does not overlap with the door / header,otherwise ghosting / signal saturation
NOTE NOTA
may occur.
Do not place any highly reflecting objects in the detection area, otherwise signal saturation may occur.
REFERENCE
Area depth adjustment with INFRARED FINDER (Separately available)
1. Turn the depth adjustment screw to the right (Deep) to place the area most away from the door.
2. Set INFRARED FINDER sensitivity to "H" (High) and place it on the floor as shown below.
3. Turn the depth adjustment screw to the left (Shallow) until the emitting area is placed at the position where
INFRARED FINDER is in the low detection status (Slow Red blinking).
1-2. Simultaneous adjustment
For the simultaneous adjustment of 1st to 5th rows, use the adjustment tool (C).
2
Width detection area adjustment
1st to 3rd rows 4th and 5th rows
-
-
-
Eliminated
Eliminated Eliminated
Narrow
Narrow
Wide
Wide
Width adjustment
Width adjustment
screw (Left)
screw (Right)
NOTE
The actual detection area may become smaller depending on the ambient light, the color / material of the object and
the floor as well as the entry speed of the object.
3
Dipswitch settings
Not applicable
1,2 : Sensitivity
1 2 3 4 5 6 7 9 101112131415 16
8
3,4 : Presence detection timer
5,6 : Frequency
7,8 : Row adjustment
3-1 Setting the sensitivity
Normally set to "Middle". " Low" decreases the sensitivity and "High / S-High"
increases the sensitivity.
3-2 Setting the presence detection timer
The 1st and 2nd rows have the presence detection function.
The presence detection timer can be selected from 4 settings.
NOTE
To enable the presence detection, do not enter the detection area for 10 seconds after setting the timer.
3-3 Setting the frequency
When using more than two sensors close to each other, set the different
frequency for each sensor by combining dipswitch 5 and 6.
Area adjustment tool
4th and 5th rows and
1st to 3rd rows
area width adjustment
adjustment
A
C
Simultaneous
adjustment
4th and 5th rows
Deep
Shallow
Depth angle adjustment screw
for 4th and 5th rows
Blue
Use the area adjustment tool (B) as shown above and
change the depth of the detection area by turning the depth
angle adjustment screw.
[m]
[m]
Deep Shallow
Detection area
INFRARED FINDER
Detection area
Front view
-
Eliminated
9 : Snow mode
10 : Immunity
11 to 15 : Not applicable
16 : Installation mode
Low Middle
1 2 1 2
15 sec. 60 sec. 180 sec.
3 4 3 4
Setting 1 Setting 2 Setting 3 Setting 4
5 6 5 6
3-4 Setting the area depth
The 5th, 4th, and 3rd rows can be eliminated by
combining dipswitches 7 and 8.
*When 2 rows setting is selected, only the
presence detection area remains.
B
Always check the area according to the expected entry speed and determine the appropriate number
NOTE
of rows.
When setting motion and motion / presence detection area sparately, make sure that there is no gap between
two areas.
3-5 Setting the snow mode
Set this switch to ON, if the sensor is used in a region with snow.
Deep
3-6 Setting the immunity
Set this switch to ON, when less influence by the header vibration is required.
3-7 Installation mode
Use this switch to ON when adjusting the presence detection area
close to the door face.
[m]
* During the installation mode, only the 1st row remain.
* Door open state
* Operation LED glows yellow.
CHECKING
Check the operation according to the chart below.
Entry
Status
Operation LED
OA-AXIS I Output
Output from
1st to 3rd
rows *
OA-AXIS II
Output from
3rd to 5th
rows *
*The outputs from the 3rd row overlaps.
INFORM BUILDING OWNER / OPERATOR OF THE FOLLOWING ITEMES
WARNING
1. Always keep the detection window clean. If dirty, wipe the window lightly with a damp cloth.
2. Do not wash the sensor with water.
3. Do not disassemble, rebuild or repair the sensor yourself, otherwise electric shock may occur.
4. When an operation LED blinks green, contact your installer or service engineer.
5. Always contact your installer or service engineer when changing the settings.
[m]
6. Do not paint the detection window.
NOTA NOTE
1. When turning the power on, always walk-test the detection area to ensure proper operation.
2. Do not place any objects that move or emit light in the detection area. (e.g. Plant, illumination, etc.)
TROUBLESHOOTING
Operation
Problem
LED
None
Door does not
open when a
person enters
Unstable
the detection
area.
Unstable
Door opens
when no one
is in the
detection area.
(Ghosting)
High S- High
1 2 1 2
3 4 3 4
Door remains Red
open or
5 6 5 6
Orange
Proper
Twice
Green
blinking
Slow
Green
blinking
Proper
Door remains
closed
5 rows 4 rows
7 8 7 8
Outside of
Entry into Entry into
Power off detection
4th or 5th row 3rd row
area
Motion/Presence
Motion
-
Stand-by
detection active
detection active
Orange
Green
None
(Do not use any cleaner or solvent.)
Possible cause
Power supply voltage. Set to the stated voltage.
Wrong wiring or connection failure. Check the wires and connector.
Wrong detection area positioning. Check ADJUSTMENTS 1 & 2.
Sensitivity is too low. Set the sensitivity higher.
Set the presence detection timer longer.
Short presence detection timer.
Dirty detection window. Wipe the detection window with a damp cloth.
(Do not use any cleaner or solvent.)
Vibration of the header. Set the sensitivity lower or the immunity to ON.
Water drops on the detection window. Use the rain-cover (Separately available).
Or install in a place keeping the waterdrops off.
The detection area overlaps
Check ADJUSTMENTS 3-3.
with that of another sensor.
The detection area overlaps Adjust the detection area to "Deep" (Outside).
with the door / header.
Reflecting objects in the detection area. Remove the objects.
Or reflecting light on the floor.
Sensitivity is too high. Set the sensitivity lower.
It snows and pours. Set the snow mode to ON.
Remove the objects.
Objects that move or emit light in the
detection area.
(Ex.Plant, illumination,etc.)
Wet floor. Check the installation condition referring to
INSTALLATION on the reverse side.
The exhaust emission or fog pen-
etrate into the detection area.
Sudden change in the detection area. Check ADJUSTMENTS 3-1 & 3-2.
If the problem still persists, hard-reset the
sensor.(Turn the power OFF and ON again.)
Wrong wiring or connection failure. Check the wires and connector.
The relay is reaching the end of its Contact your installer or the sales engineer.
life cycle.
Remove highly reflecting objects from the
Signal saturation
detection area. Or lower the sensitivity.
Or change the area angle.
The detection area overlaps with Adjust the detection area to "Deep" (Outside).
the door / header.
Wrong wiring or connection failure. Check the wires and connector.
3 rows 2 rows
7 8 7 8
OFF ON
9
9
ON
OFF
10 10
ON
OFF
16
16
White : COM. White Str. : COM.
Yellow : N.O. Yellow Str. : N.O.
Green : N.C. Green Str. : N.C.
Entry into
Entry into
2nd row 1st row
Presence
detection
Red Blinking Red
Possible countermeasures
