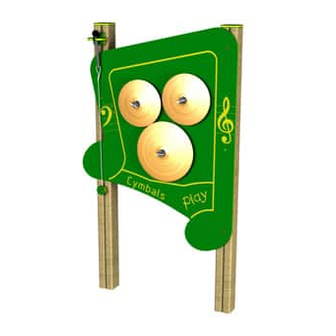

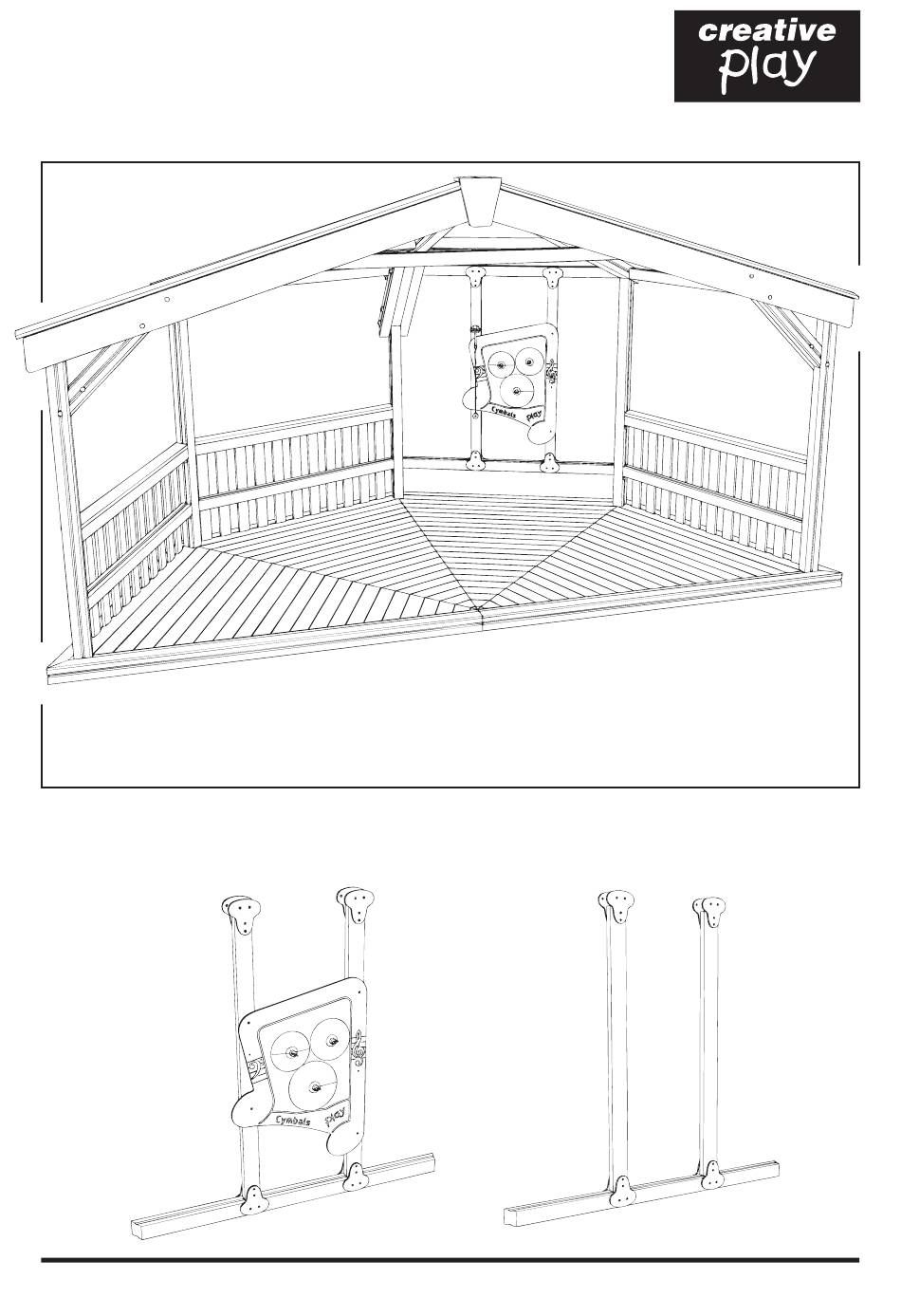

- Page 1 CYMBALS - OCTAVIA OPTION Installation Instructions 1 x board attachment shown above with MUSICAL PLAY BOARDS Can be used for any MUSIC playboards in our range 4,5 & 6m Full & Half Octagonal Shelters BOARD ATTACHMENT FOR REF: MP102(A) - CYMBALS OCTAVIA OPTION...
- Page 2 PARTS required BOARD ATTACHMENT REPLACES SIDE(S) It can not be used in conjunction with standard sides or filled sides (FM80 brass screws) (Pairs of - 90mm x 90mm T’s) (40mm brass screws) (90mm x 90mm UPRIGHT) (angle cleats/brackets) (90mm x 90mm CROSS BAR) PRE-ASSEMBLED MUSIC OBLONG PLAYTEC...
- Page 3 TOOLS required REF: MP102(A)- CYMBALS OCTAVIA OPTION pg 3 of 7...
- Page 4 Installation Instructions Attach T2 timber (crossbar) using angle cleats/brackets and 40mm brass screws 6m HALF SHELTER shown Crossbar will be inline with the SIDES support (400mm) REF: MP102(A)- CYMBALS OCTAVIA OPTION pg 4 of 7...
- Page 5 Installation Instructions Installation Instructions Attach T1 timber (uprights) 90mm x 90mm T’s and 80mm brass screws EXISTING SHELTER ROOF RAFTER TO UPRIGHT CENTRES 715mm REF: MP102(A)- CYMBALS OCTAVIA OPTION pg 5 of 7...
- Page 6 Installation Instructions Installation Instructions FIX MUSIC PLAYBOARD ONTO UPRIGHTS FIX THE ASSEMBLED MUSIC PLAY BOARD ON TO THE TWO UPRIGHTS USING 6 X FM80 BRASS WOOD SCREWS FIX BEATER TO LEFT TIMBER - BELOW MUSIC BOARD USING 1 X FM80 BRASS WOOD SCREW SANDWICH THE BEATER STEEL CORD LOOP BETWEEN THE PLAYTEC RING AND RECESSED PLAYTEC CIRCLE...
- Page 7 Installation Instructions Installation Instructions FIX BEATER HOLDER TO LEFT TIMBER - ABOVE MUSIC BOARD USING 2 X FM80 BRASS WOOD SCREWS PUSH PLAYTEC BLOCK THROUGH THE HOLDER AND MATCH UP THE TWO OBLONG PLAYTECS PIECES TO THE HOLES FIX INTO TIMBER WITH 2 FM80 BRASS WOOD SCREWS. REF: MP102(A)- CYMBALS OCTAVIA OPTION pg 7 of 7...
