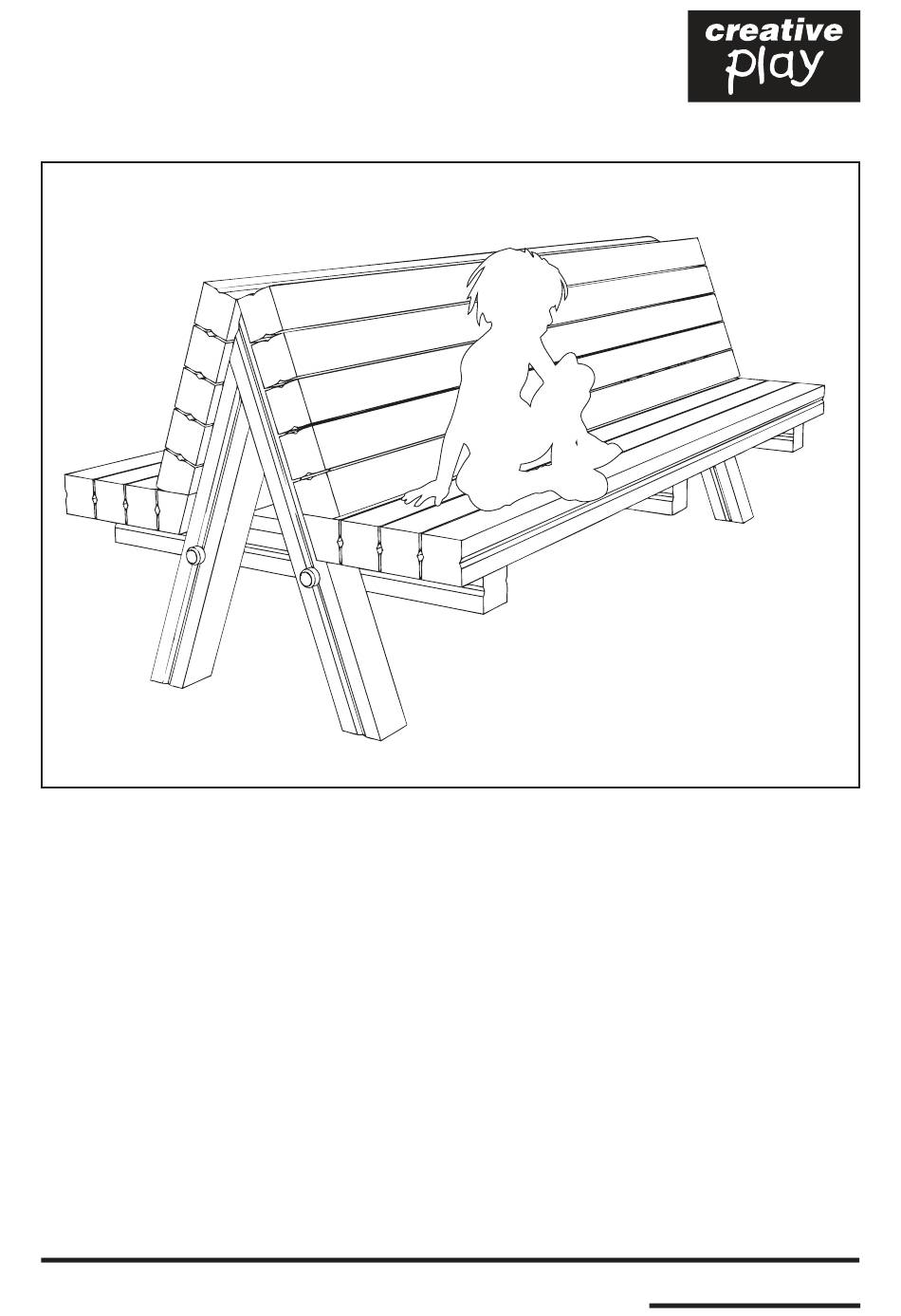

- Page 1 A-FRAME BENCH Assembly Instructions IMPORTANT - REQUIRES CONCRETE FOUNDATIONS REF: CP053/AF - A-FRAME BENCH pg 1 of 7...
-
Page 2: Parts Required
QTY 2 (90mm x 90mm) (120mm brass screws) QTY 1 (90mm x 90mm) QTY 2 (90mm x 90mm) (M12 200 cup square hex) QTY 2 (End Caps) (Nylocs ) (90mm x 90mm) pg 2 of 7 REF: CP053/AF - A-FRAME BENCH... -
Page 3: Tools Required
TOOLS required pg 3 of 7 REF: CP053/AF - A-FRAME BENCH... -
Page 4: Foundation Details
Foundation Details SOIL TIMBER SUPPORT POST CONCRETE pg 4 of 7 REF: CP053/AF - A-FRAME BENCH... - Page 5 Assembly Instructions If the bench IS pre-assembled INSTALL as per FOUNDATION DETAILS Attach T5 & T6 timbers to the T4a TIMBERS Using M12 200 cup square hex bolts, nylocs and end caps pg 5 of 7 REF: CP053/AF - A-FRAME BENCH...
- Page 6 Attach the T3 timbers FIRST then the T1 timbers - Use 2 screws for each slat - Ensure the screws are uniform and screw in to the centre of the T4 timber SIDE VIEW pg 6 of 7 REF: CP053/AF - A-FRAME BENCH...
- Page 7 Attach the T2 timbers FIRST then the T1 timbers - Use 2 screws for each slat - Ensure the screws are uniform and screw in to the centre of the T5/6 timber pg 7 of 7 REF: CP053/AF - A-FRAME BENCH...
