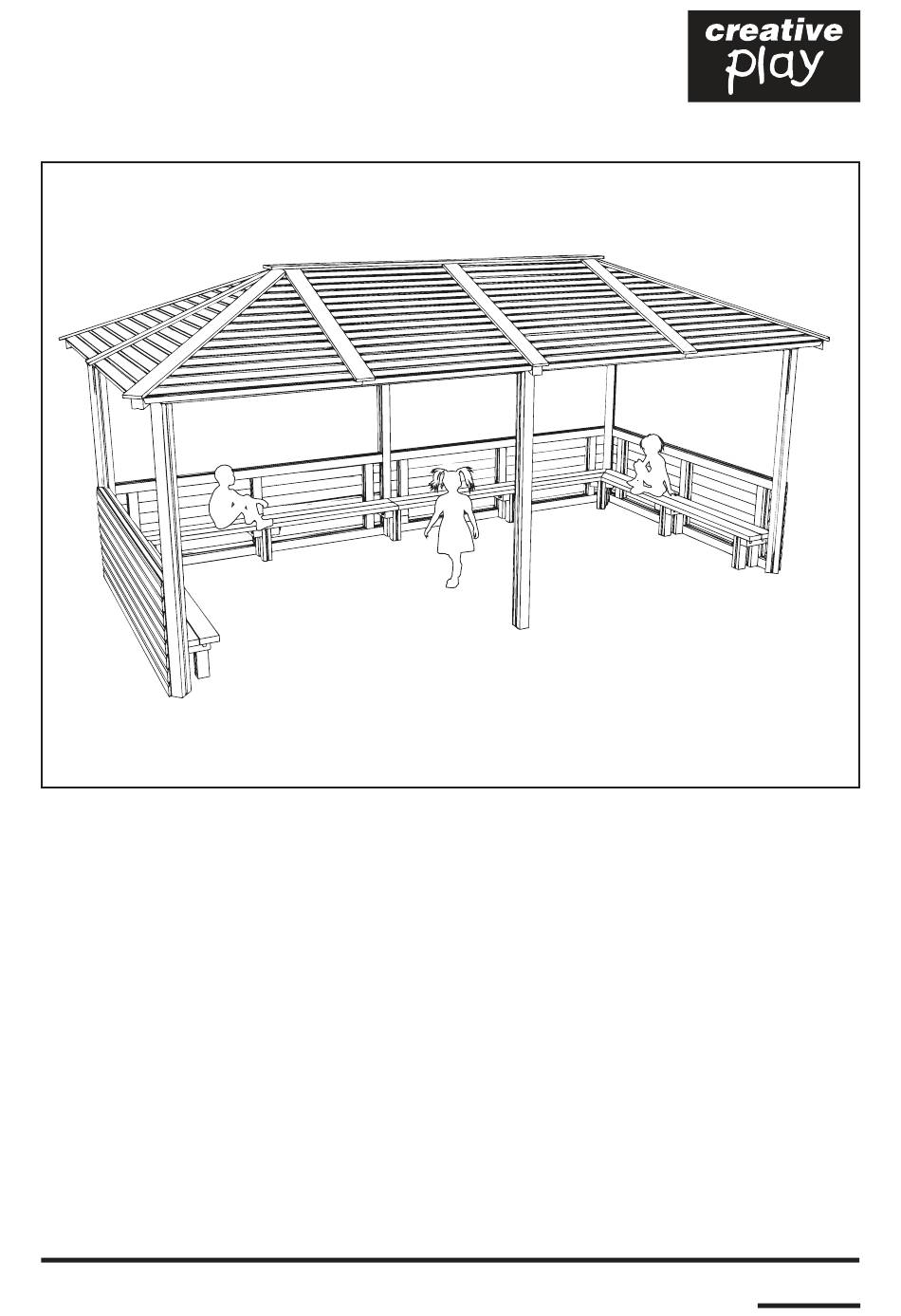

HIPPED ROOF SHELTER
Assembly Instructions
6m x 3m
REF: CP046/HR - 6m x 3m
pg 1 of 26

Advertisement

loading
Need help?

Need help?

Do you have a question about the HIPPED ROOF SHELTER CP046/HR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Creative Play HIPPED ROOF SHELTER CP046/HR

Summary of Contents for Creative Play HIPPED ROOF SHELTER CP046/HR

  • Page 1 HIPPED ROOF SHELTER Assembly Instructions 6m x 3m REF: CP046/HR - 6m x 3m pg 1 of 26...

  • Page 2: Parts Required

    PARTS required (120 x 90) (120 x 90) (90 x 90) (90 x 90) (90 x 90) (90 x 90) (90 x 90) (120 x 90) pg 2 of 26 REF: CP047/HR...
  • Page 3 PARTS required continued... (angle cleats/brackets) 2 per T3/4 timbers, 4 per sides SLS - A (Shiplap side) SLS - B1 SLS - B2 (Shiplap side) (Shiplap side) SEATING ASSEMBLY - QTY 8 - QTY 2 SEAT SLATS SINGLE SUPPORT LEGS 2 x S1, 2 x S2, 2 x S3 &...
  • Page 4 PARTS required continued... ROOF ASSEMBLY QTY’s The roof is made up of 12 seperate assemblies 4 x R1 2 x R2a 2 x R2b (mirror of R2a) 2 x R3a 2 x R3b (mirror of R3a) ROOF TRIM QTY’s 1 x RT1 4 x RT2 6 x RT3 2 x RT4...

  • Page 5: Tools Required

    PARTS required continued... x128 (80mm brass screws) To be used for roof assembly & seat slats x102 (180mm brass screws) (120mm brass screws) (40mm brass screws) To be used for main support beams To be used for roof assembly & main beams To be used for angle cleats x120 approx.

  • Page 6: Foundation Details

    Foundation Details CORNER POSTS INSTALLED @ 45 degrees (distance between posts) (distance between posts) CORNER POSTS INSTALLED @ 45 degrees MAIN BEAMS SEATING FOUNDATIONS SHOWN ABOVE Next page shows the foundations for the SOIL TIMBER SUPPORT POST CONCRETE pg 6 of 26 REF: CP047/HR...
  • Page 7 Foundation Details MAIN SUPPORT FOUNDATIONS SHOWN IN BLACK CENTRAL SUPPORT POST and CENTRAL SEAT SUPPORT POST are BUTTED UP TOGETHER SEATING SEATING FOUNDATIONS SHOWN ABOVE Previous page shows the foundations for the SOIL TIMBER SUPPORT POST CONCRETE pg 7 of 26 REF: CP047/HR...
  • Page 8 Assembly Instructions Construct the main beam assembly BEFORE adding the roof, seats and side assemblies steps Install the T1 and T2 timbers T1 timbers are installed @ 45 degrees pg 8 of 26 REF: CP047/HR...
  • Page 9 Assembly Instructions Install the T3 and T4 timbers using angle cleats/brackets and 40mm brass screws GROUND LEVEL Back edge of the T3 & T4 timbers are in line with the POSTS pg 9 of 26 REF: CP047/HR...
  • Page 10 Assembly Instructions Install the T6 timbers onto the T2 timbers Using 180mm brass screws Install the T7 ridge beam Using 120mm brass screws Offset the screws to ensure they do not ‘cross’ T5 & T6 timbers all sit flush/level with the top edge of the RIDGE BEAM pg 10 of 26 REF: CP047/HR...
  • Page 11 Assembly Instructions Install the T5b timbers onto the T1 & T7 timbers Using 180mm brass screws for the T1 timbers & 120mm brass screws for screwing into the ridge beam Install the T5a timbers onto the T1 & T7 timbers Using 180mm brass screws for the T1 timbers &...
  • Page 12 Assembly Instructions Main beam assembly is now complete Ensure all timbers are secure and correctly installed Install the SHIPLAP sides Using 40mm brass screws and angle cleats/brackets pg 12 of 26 REF: CP047/HR...
  • Page 13 Assembly Instructions Install the remaining SHIPLAP SIDES Using 40mm brass screws and angle cleats/brackets SLS - A SLS - B2 SLS - B1 SLS - A Install SEATING SUPPORTS and SLATS Additional drawings shown on the following pages Support installed against the Support installed against the 90mm 90mm x 90mm side support x 90mm side support timber...
  • Page 14 Assembly Instructions Screw the seat slats to the seat supports Using 80mm brass screws and angle cleats/brackets pg 14 of 26 REF: CP047/HR...
  • Page 15 Assembly Instructions Additional seating information SEAT SUPPORTS VIEW FROM BELOW pg 15 of 26 REF: CP047/HR...
  • Page 16 Assembly Instructions Install the ROOF SECTIONS Install the R1 Roof sections Using brass screws *Roof panels sit flush/level with the T6 timbers Use 8 x 120mm brass screws to attach R1 to T6 timber Profiled edge attached to ridge beam Use 6 x 80mm brass screws to attach R1 to T7 ridge beam timber...
  • Page 17 Assembly Instructions Repeat for the remaining R1 roof sections Offset the screws either side of the T6 timber to ensure screws do not cross pg 17 of 26 REF: CP047/HR...
  • Page 18 Assembly Instructions Attach the R2a roof sections to the T5b timbers Using 8x 120mm brass screws Attach the R2a roof section to the R1 roof section Using 6 x 80mm brass screws (either side) Roof section fit flush/level Offset the screws either side of the T5b timber to ensure screws do not cross pg 18 of 26...
  • Page 19 Assembly Instructions Repeat STEPS 15 & 16 for the R2b roof section Repeat for the opposite R2a and R2b timbers Attach R3a & R3b roof sections to the T5 timbers *Offset the screws either side of the T5a & T5b timbers to ensure Use 8 x 120mm brass Use 8 x 120mm brass screws do not cross the screws...
  • Page 20 Assembly Instructions Repeat STEPS 18 for the remaining R3 roof sections Ensure all roof sections sit flush with the T5/T6/T7 timbers pg 20 of 26 REF: CP047/HR...
  • Page 21 Assembly Instructions Install the ROOF TRIM PIECES Screw the RT2 trim pieces to the T5 timbers Using 6 deck screws evenly spaced for each trim piece (see additional notes) *Ensure the RT2 trim is positioned as above (centred on the T5 timber) pg 21 of 26 REF: CP047/HR...
  • Page 22 Assembly Instructions Repeat for step for the remianing RT2 trim pieces RT2 Trim pieces are cut so they ‘meet’ at the top Overhang @ 48mmfrom T5 timber pg 22 of 26 REF: CP047/HR...
  • Page 23 Assembly Instructions Attach the RT4 trim pieces Using 6 deck screws evenly spaced for each trim piece (see additional notes) Deck screws need to be STAGGERED pg 23 of 26 REF: CP047/HR...
  • Page 24 Assembly Instructions Attach the RT3 trim pieces Using 6 deck screws evenly spaced for each trim piece (see additional notes) STAGGER DECK SCREWS Screwed into T6 timber STAGGER DECK SCREWS Overhang @ 46mmfrom T6 timber pg 24 of 26 REF: CP047/HR...
  • Page 25 Assembly Instructions Attach the RT1 trim piece (9” x 1”) Using 10 deck screws evenly spaced for each trim piece (see additional notes) The RT1 will sit directly onto the RIDGE BEAM *Ensure it is positioned centrally - covering/overhanging the other RT (roof trim) pieces pg 25 of 26 REF: CP047/HR...
  • Page 26 Dimensions pg 26 of 26 REF: CP047/HR...
