Submenu b. Zone setup

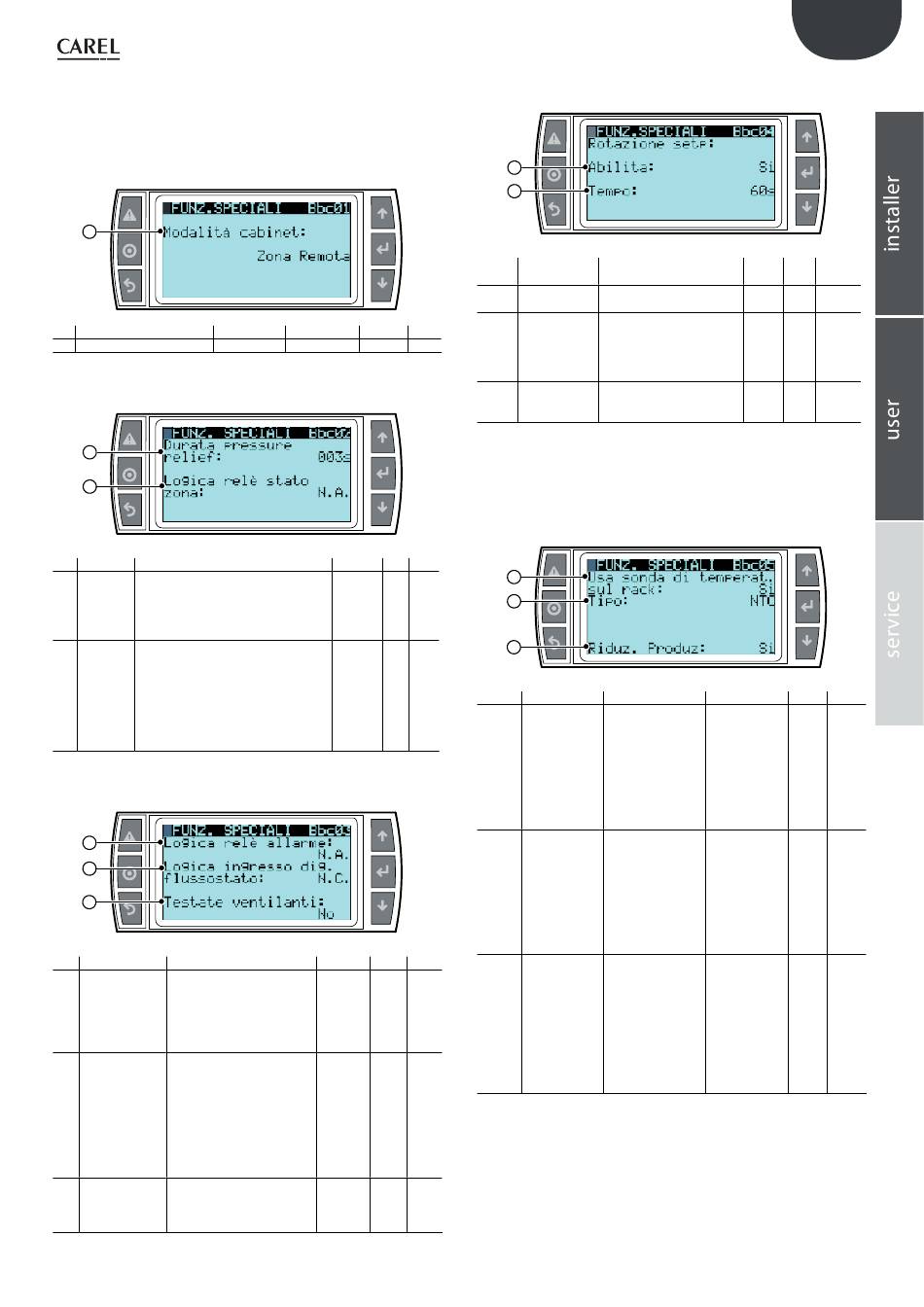

b. Zone setup - c. Special functions
Contains nine screens and their parameters, and any notes and
clarifications contained in chapter xxxxx
Remote area cabinet mode
1
Ref. Display Description
Cabinet working mode
Pressure relief
1
2
Ref. Display Description
Pressure
1 Defines the opening time of the load
relief solenoid valves N.A. of the step in closing
duration phase. This parameter is fundamental
to let the pressurized water inside the
collectors and avoid dripping problems.
Zone
2 Set the relay logic that represents the
status
state of the area through the free C25 -
relay NO26 contact J20 terminal. Se N.A.
logic
Free contact OFF area - none of the steps
of the area are in atomization phase
Closed contact ON area - at least one of
the steps of the area is in atomization
phase
Alarm relay logic and fan blower
1
2
3
Ref. Display Description
1 Alarm relay Set the logic of the J15 alarm
logic
relay
N.A. free contact between the
NO8 - C8 terminals
N.C. closed contact between
the NO8 - C8 terminals
2 Flow switch
Manages the logic of the FLUX-
input logic G0A contact which verifies
the air passage in the duct.
The possible logics are the
following:
N.C. signifies that there is an air
passage in the duct
N.A. signifies that there is no air
passage in the duct
3 fan blower Set to "YES" if you want to enable
present the environment atomization of
the pumping station with the
use of ventilating heads
Range Default Unit
Remote zone
Range Def. Unit
0 - 999 3 sec
N.A. - N.C. N.A.
Range Def. Unit
N.A. - N.C. N.A.
N.A. - N.C. N..C.
YES-NO NO
41
Step rotation
1
2
Ref. Display Description
Steps
rotation
1 Enable
Enable the rotation of the ac-
tivation logic only in constant
pressure mode and if all the
steps have been dimensioned
with the same capacity
2 Time
Time after which the rotation
is performed from one step
to another
Rack temperature probe
It is possible to install a temperature probe immediately before the
distribution system in order to verify if the temperature is optimum for
the proper absorption of the atomized water.
1
2
3
Ref. Display Description
1 Use rak
Enables the
temperature detection of the
probe temperature in the
atomization area.
When the tempera-
ture drops below the
"rack temp. probe
setpoint" a warning
video is signalled.
2 Type Probe type
3 Reduced Enables the reduc-
production
tion of production
if the temperature
in the atomization
area falls below the
"rack temp. probe
setpoint" proportio-
nally with the offset
from the ideal atomi-
zation temperature
"humiFog multizone - pumping
ENG
Range De- Unit
fault
Si/NO NO
3...999 60 seconds
Range Def. Unit
YES - No NO
NTC NTC
0 -10 V
2 - 10 V
0 - 1V
NTC
135 - 1000 ohm
0 - 135 ohm
4 - 20 mA
0 - 20 mA
YES-NO NO
