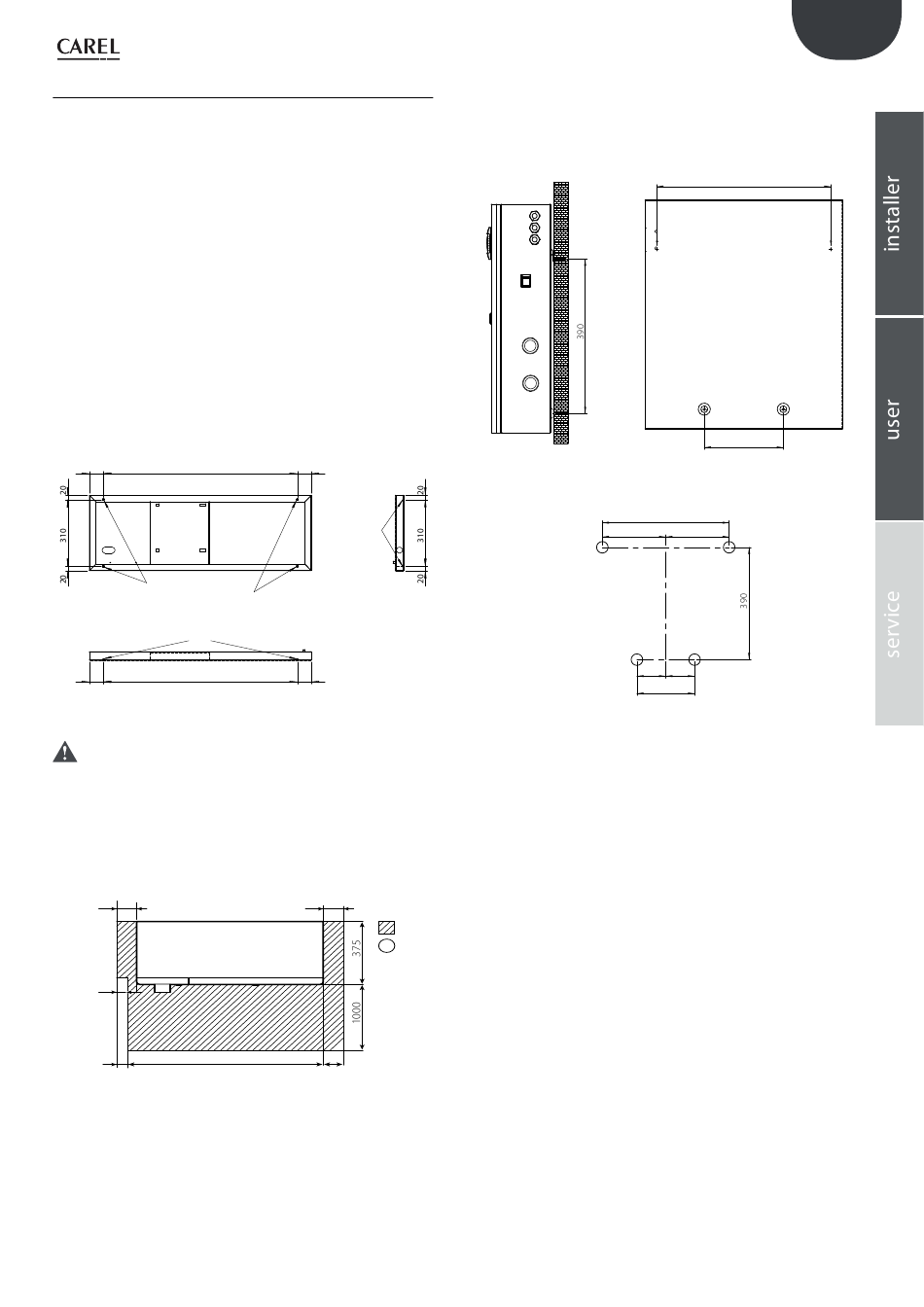

1.10 Positioning the cabinet

Both cabinets: master and slave, should be positioned so as to guarantee
the following:
•
read the values on the display;
•
access the keypad on the display;
•
open the front panels;
•
access to the inside parts for checks and maintenance;
•
connection of the water supply lines;
•
connection to the water distribution lines;
•
power and control connections;
•
prepare a base of at least 200 mm.
in particular, for the Master cabinet:
It can be positioned wherever the following conditions are ensured:
•
clearance for routine maintenance as described in Fig. 1.f
•
humidity 20-80% rH non-condensing
•
temperature 1-40 °C;
•
cabinet compliant with seismic testing standards IEC 60068-2-6, IEC
60068-2-57, IEC 60068-2-64, ISO2041. To ensure compliance with the
above-mentioned standards, the cabinet must be anchored to the
floor using the threaded holes provided (M6 female thread), as shown
in Fig. 1.i.
65 900
INSERTI FILETTATI M6
FEMMINA
M6 F
65 900
Important: the maximum distance between the cabinet and rack/
distribution system is 50 metres, for higher distances contact CAREL
INDUSTRIES.
Positioning procedure:
•
after opening the packaging:
•
position the cabinet in the final position;
•
level the cabinet horizontally.
100
TV
45
55
1075
65
M6 F
65
Fig. 1.i
100
P
100
Fig. 1.j
Slave cabinet
Fasten it to a solid support surface using the screws and bracket supplied.
Make sure there is enough space for the electrical power supply and
control connections.
11 "humiFog multizone - pumping
rear of the cabinet
440
200
drilling template
440
= =
= =
200
Fig. 1.k
