SPECIFICATIONS
5.0
5.1
Power Requirements
Regulated +5VDC and +12/24VDC is required to power this board.
WARNING
Check the polarity and voltage of the external power source and connect the 5VDC and
GND. Overvoltage or reverse-polarity power applied to these terminals can cause
damage to the board, and/or the power source.

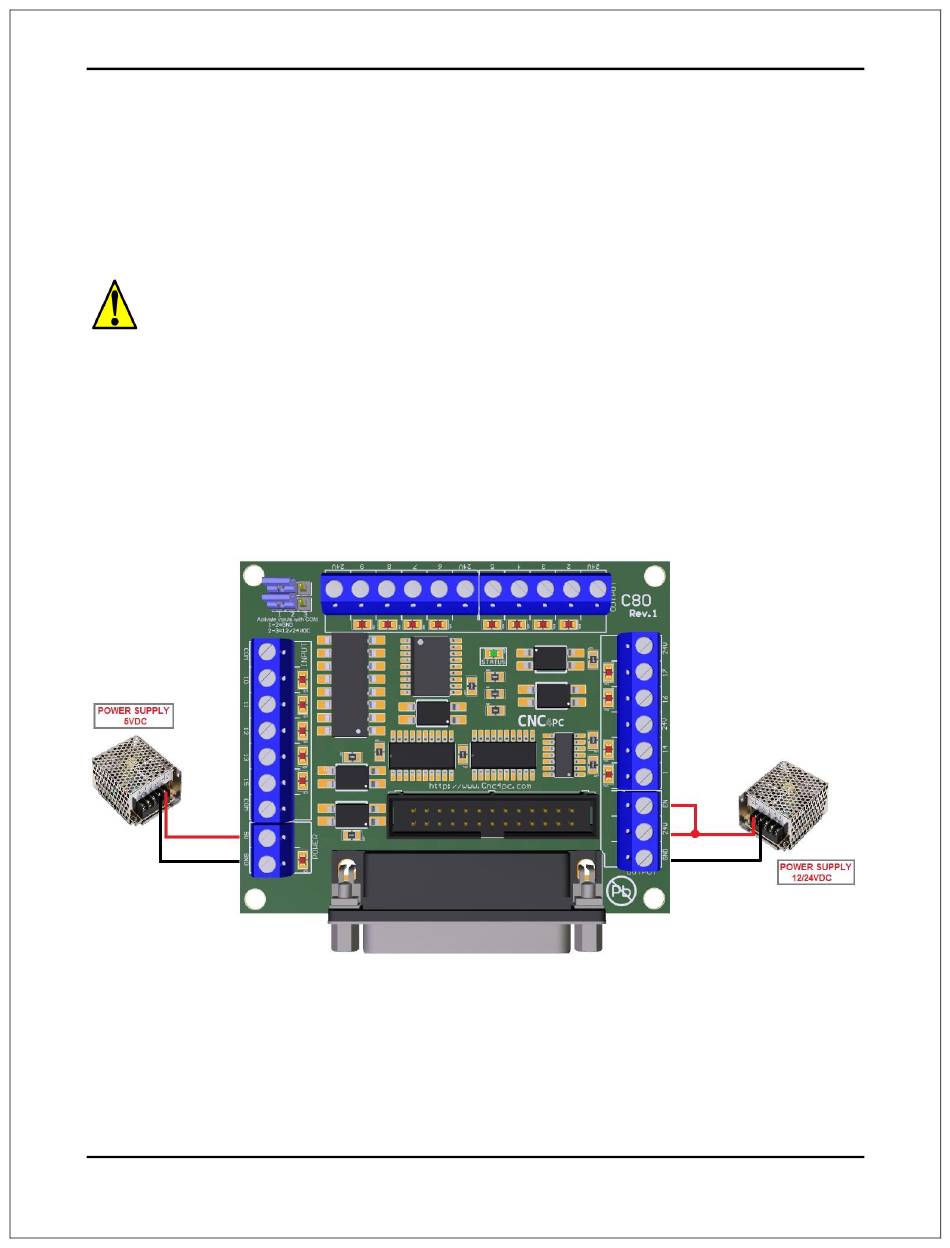

POWER TERMINAL
6.0
To preserve optoisolation two independent power sources should be used. A +5vdc to power
the optos that interact with the controller (which could be a USB cable) and a +24vdc at 200
Amp to power the board..
Note. It can be polarized by Pin 26 of the IDC26
User's Manual
Page 3
