User Manual
WS103 Remote Solution
WS Wireless configurator

Create new configuration

18 | © Danfoss | July 2016

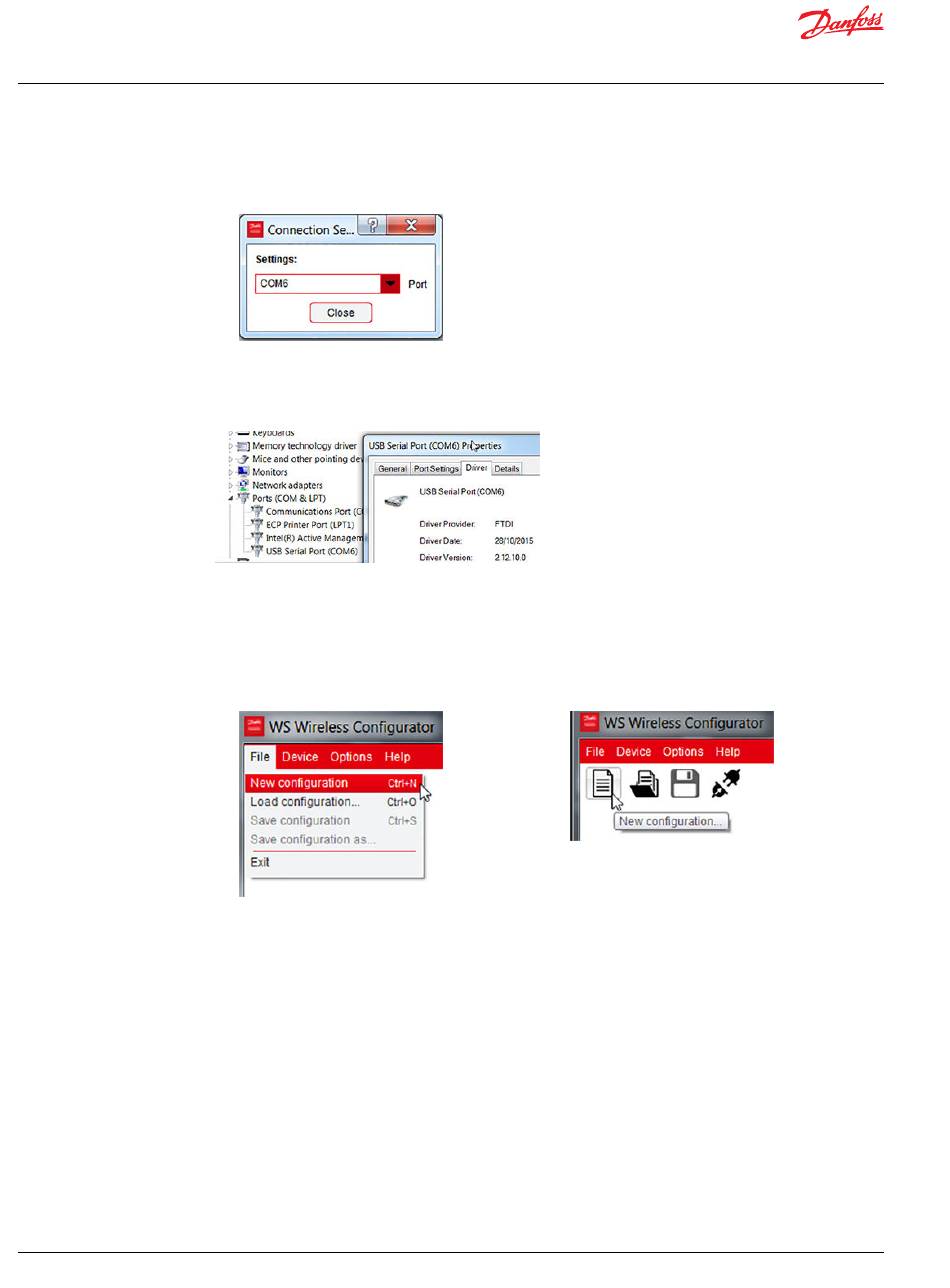

The Connection Settings window will appear.
2. Set the correct COM port assigned to the USB/RS232 cable converter in the Connection Settings
window. Press close.
Double check the COM port assigned to the USB-RS232 converter by verifying in Device Manager >
Ports section the USB Serial Port properties.
Example of USB Serial Port properties
To create a new configuration either:
•
Go to File > New configuration.
•
Click on the New configuration icon .
The new WS103 configuration parameters are included on the following 6 tabs:
•
Device
•
CAN Receive
•
WLAN
•
Bluetooth ®
•
Expert
•
Safety
AN00000339en-US0101
