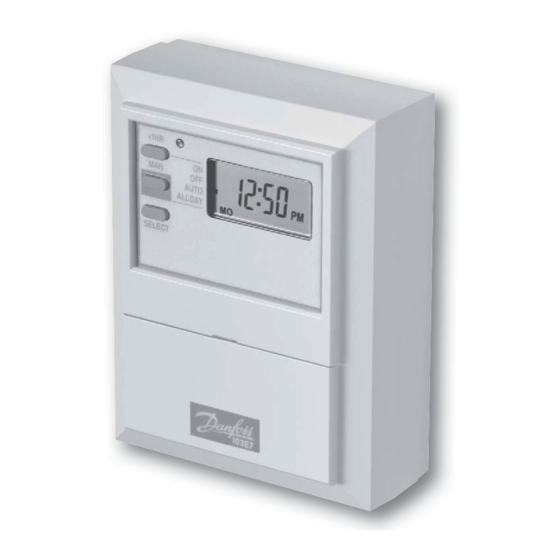

Danfoss 103E7 Installation & User's Instructions
7-day electronic timeswitch for controlling hot water and heating
Hide thumbs
Also See for 103E7:
- Installation & user's instructions (24 pages) ,
- User manual (17 pages) ,
- Installation manual (12 pages)
Related Manuals for Danfoss 103E7
Summary of Contents for Danfoss 103E7
- Page 1 More timers and manuals: http://waterheatertimer.org/Woods-timers-and-manuals.html#TE22 103E7 7-day electronic timeswitch for controlling hot water and heating Installation & User Instructions including Factory Replacement Units (FRU)
-
Page 2: Table Of Contents
Index Installation Product specifi cation Installation Wiring Replacement 10-11 User Your timeswitch Resetting the unit 24hr or AM/PM display Setting the Time and Day Factory preset programmes Changing the preset programmes Setting the programme - 7 day 16-17 Setting the programme - 5/2 day 18-19 Running your programme Temporary user overrides... -
Page 3: Product Specifi Cation
Installation Instructions Please Note: This product should only be installed by a qualifi ed electrician or competent heating installer, and should be in accordance with the current edition of the IEEE wiring regulations. Product specifi cation Specifi cation Power supply 230Vac ±... -
Page 4: Installation
Installation NB. For FRU units - go straight to point 6 below. 1. Loosen the fi xing screw in the base of the unit to release the Wiring Cover. 2. Holding the unit face downwards, press fi rmly in the centre of the wallplate and slide it apart and lift it from the module. - Page 5 5. Electrical connections are simplifi ed by using a Wiring Centre. However, if this is not used, the wallplate terminal identifi cation is as shown. Load Mains Supply (via 3 amp fuse) SPARE If the system being controlled is 230 Vac, then terminals 3 and L must be linked with insulated cable capable of carrying full load current.
-
Page 6: Wiring
10. Then press the SELECT button until the bar lines up with the word OFF and check the system does not operate. 11. When the circuit check has been completed, replace the wiring cover and tighten the fi xing screw. Cut any cable aperture in the wiring cover which may be necessary to accommodate surface mounted cables. - Page 7 Typical Gravity DHW with pumped heating 103E5 103E7 TERMINALS TERMINALS LINK ROOM MAINS 'STAT SUPPLY FUSED 3 AMP CALL BOILER PUMP TERMINALS TERMINALS Typical control of Pump for Central Heating on a Solid Fuel System 103E5 103E7 TERMINALS TERMINALS LINK...
- Page 8 Typical Heating Only system, Boiler and Pump control 103E5 103E7 TERMINALS TERMINALS LINK ROOM MAINS 'STAT SUPPLY FUSED 3 AMP CALL BOILER PUMP TERMINALS TERMINALS Typical control of Low Voltage System requiring voltage free contacts 103E5 103E7 TERMINALS TERMINALS MAINS...
- Page 9 Typical control of Heating when provided by Combination type Boiler (see note below) 103E7 103E7 TERMINALS TERMINALS ROOM MAINS 'STAT SUPPLY FUSED 3 AMP CALL COMBI BOILER INPUT OUTPUT TERMINALS Note: Connection must only be made if input/output of boiler are 230V signals Typical Heating &...
-
Page 12: Your Timeswitch
Your 103E7 timeswitch allows you to switch your heating and hot water on and off at times that suit you. The 103E7 can provide 3 ON periods and 3 OFF periods each day and can offer either 7-day control (a different programme for each day of the week) or 5/2 day control (one set of programmes for weekdays and a different set for weekends). -
Page 13: 24Hr Or Am/Pm Display
Choice of 24hr or AM/PM display Press and hold DAY and NEXT PROGRAMME ON/OFF buttons for 1.5 seconds NEXT/ON/OFF COPY to toggle between 24hr clock and AM/PM display, as required. Setting the correct Time & Day SETTING THE TIME PROGRAMME Press PROGRAMME once NEXT/ON/OFF COPY... -
Page 14: Factory Preset Programmes
Factory Presets The unit is supplied with the following preset programme which will be active after the unit has been reset. Mon-Fri Sat-Sun 1st ON 6.30am 7.30am 1st OFF 8.30am 10.00am 2nd ON 12.00pm 12.00pm 2nd OFF 12.00pm 12.00pm 3rd ON 5.00pm 5.00pm 3rd OFF... -
Page 15: Changing The Preset Programmes
Changing the preset programmes Your installer will have set your unit to operate in one of the following modes: ● 7 day - different settings for each day of the week (page 16-17) - default setting ● 5/2 day - one set of programmes for weekdays and another for weekends (page 18-19) Please follow the correct instructions to programme your unit. -
Page 16: Setting The Programme - 7 Day
Programming the heating & hot water in 7-day mode 1. Press PROGRAMME until PROGRAMME SET ON TIME appears at NEXT/ON/OFF COPY the top of the display and MO appears at the bottom of the display. Use the + and - buttons to set the time you want your heating to fi... - Page 17 Continue programming the PROGRAMME rest of the week by pressing: NEXT/ON/OFF COPY a) NEXT ON/OFF button to To advance to next time move to the next setting, setting b) + and - buttons to amend PROGRAMME the time NEXT/ON/OFF COPY c) DAY to advance to the next To amend TIME day.
-
Page 18: Setting The Programme - 5/2 Day
Programming the heating & hot water in 5/2 day mode 1. Press PROG until SET ON TIME appears at the PROGRAMME top of the display and NEXT/ON/OFF COPY MOTUWETHFR appears at the bottom of the display. Use the + and - buttons to set the time you would like your heating/hot water to fi... - Page 19 3. Continue programming the heating/hot water ON and OFF times for weekday Events 4, 5 & 6 as in Step 2. PROGRAMME 4. Press the DAY button once and SASU will appear at the NEXT/ON/OFF COPY bottom of the display. To advance to next time setting Either press COPY to...
-
Page 20: Running Your Programme
Running your programme The 103E7 controls your hot water and heating together, turning them on and off at the same times. To run the central heating and hot water programme press the SELECT button. As you press SELECT a bar on the display will move... -
Page 21: Temporary User Overrides
Temporary User Overrides Sometimes you may need to change the way you use your heating temporarily, i.e due to unusually cold weather. The 103E7 has two convenient overrides which can be selected without affecting the set programme. Override buttons +1HOUR... -
Page 22: Changing Clocks Forward/Back
Changing clocks forward/back To change from Summer to Winter PROGRAMME (clocks back) NEXT/ON/OFF COPY - press and hold - button To change from Winter to Summer PROGRAMME (clocks forward) NEXT/ON/OFF COPY - press and hold + button NOTE: After the fi rst time this change has been made this feature will only allow the clock to be changed in the correct direction. -
Page 23: Battery Backup
Battery backup In the event of a power cut, the built-in battery will keep your time and programme settings for up to 2 days. After 2 days without mains power the display will become blank and the memory will be lost. When mains power is restored, the unit should be RESET, by pressing the R/S button beneath the fl... -
Page 24: Contact Details
Call our technical department 0845 121 7505 (8.45-5.15 Mon-Thurs, 8.45-4.45 Fri) For a large print version of these instructions please contact the Marketing Services Department on 0845 121 7400. Danfoss Randall Ltd Ampthill Road Bedford MK42 9ER Tel: 01234 364621 Fax: 01234 219705...
