The leak is detected as the analog carrier frequency with associated VBI pulses
harmonics that define the analog channel. The c<Enter> frequency doesn't need to be
exact and depends on the accuracy of the actual modulator at the headend. The
frequency span that is used for scanning for the signal is adjustable via the General
setting.

Max Hold leak level

This function helps in resolving the final location of the leak. The user can see on
the screen what was the max level of the detected signal and return to the antenna
position to judge about the source location.

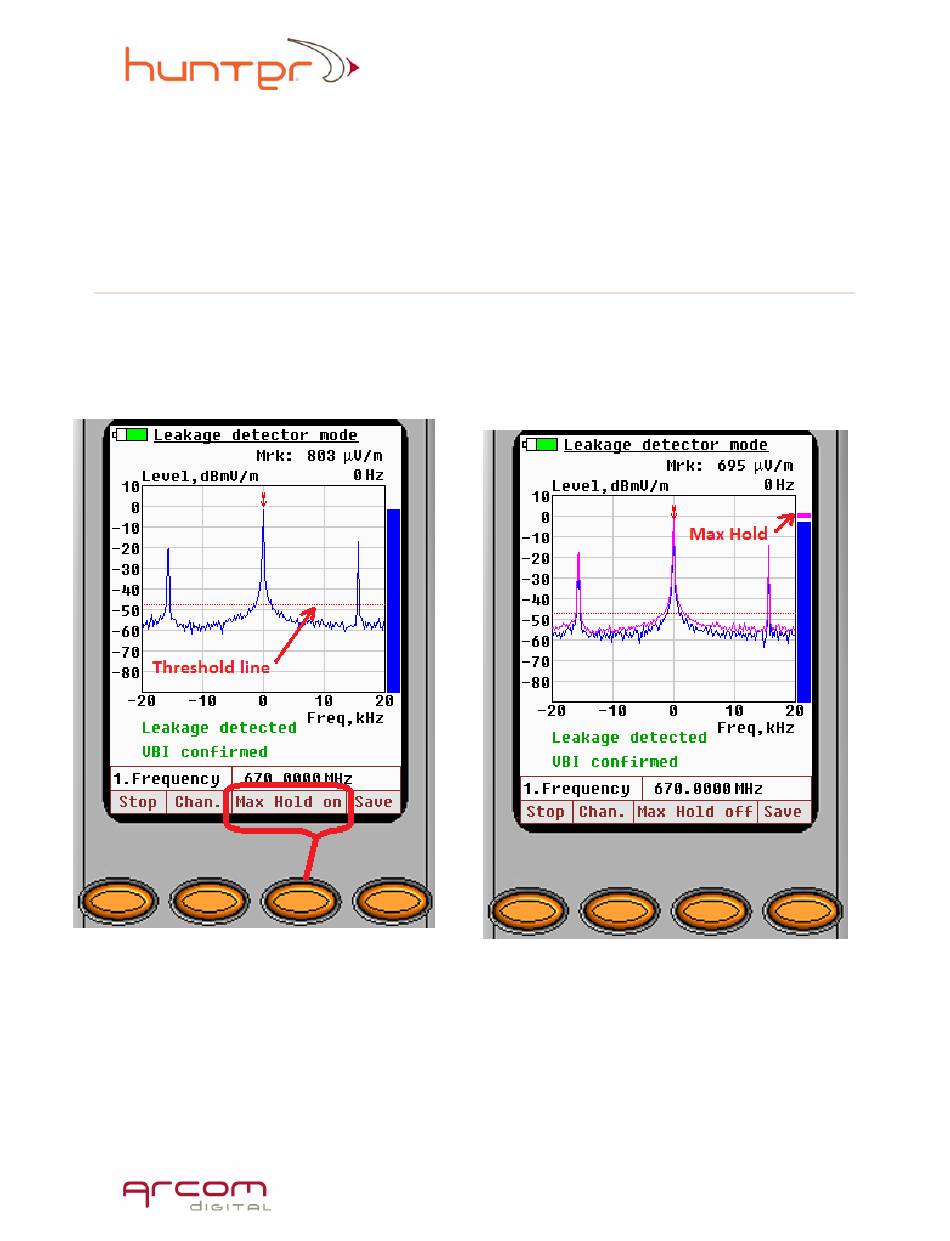

Turn on the Max Hold by pressing the <Max Hold> soft key:
Once the leaking signal reaches the detection threshold that is reflected on the
screen by the dotted red horizontal line and the VBI pulses are identified the sound will
sound (if enabled in the Settings/General settings).
The green caption "Leakage detected – VBI confirmed" will display once the leak is
fully identified.
The leak level is shown on the spectrum screen and the vertical blue indicator bar.
