Setting Up the Data Carrier Frequency

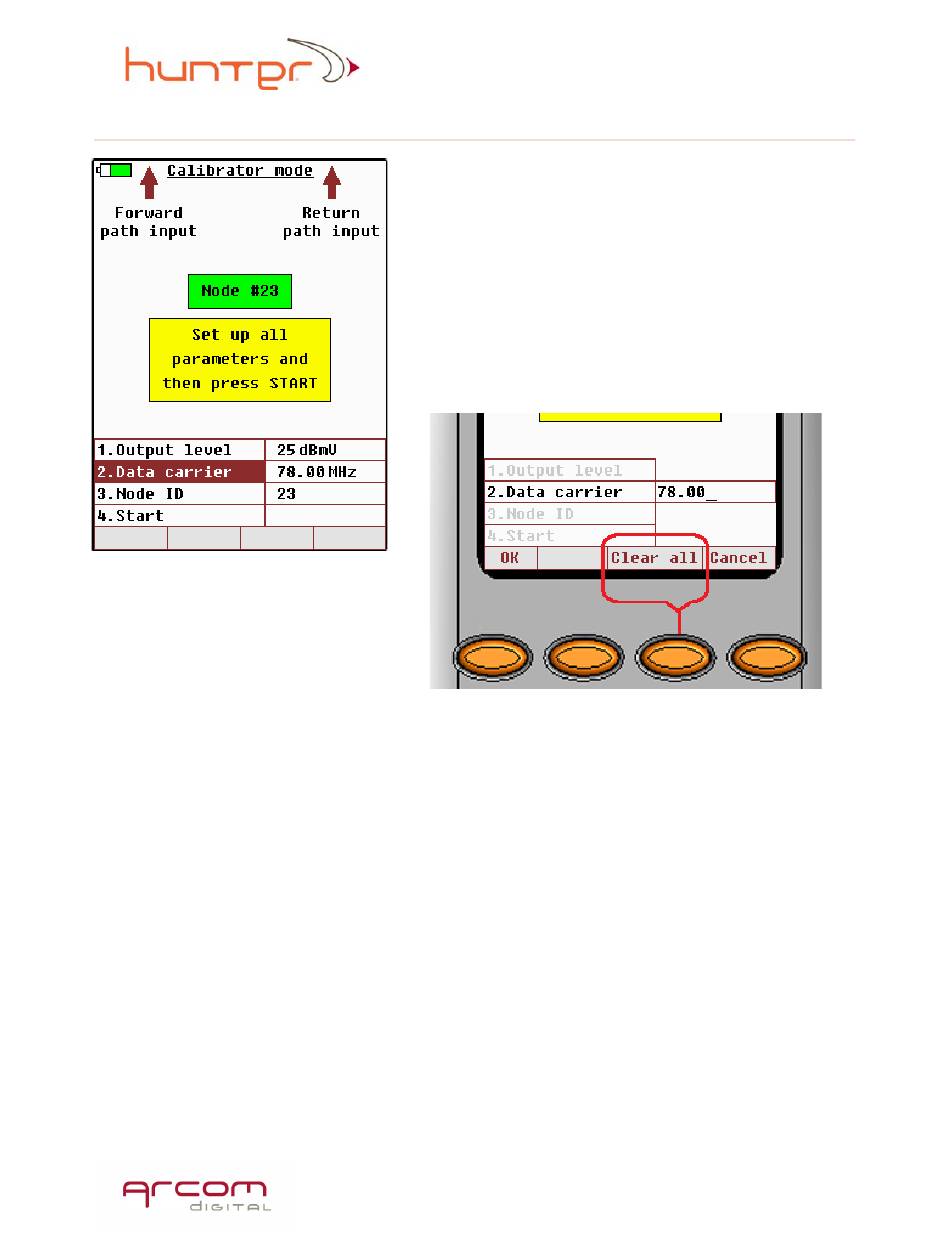

Highlight Data carrier menu item
and press <Enter> to open the
frequency adjustment dialog box:
In the open window press the
Clear all soft button to remove existing setting. Then type the desired frequency digit
by digit using the numerical keypad. Should you make an error, you will have to clear
all the digits with the Clear all soft button and retype the frequency. Once the
frequency is input is correct, press OK soft button to store new data.
In most situations this operation is done once
and will have to be repeated once the FSK carrier
frequency has changed or the Quiver is moved to a
different hub that is using same FSK band.
The Frequency of the FSK receiver is agile in
small range and can be changed from the Calibrator
menu.
To access it open Calibrator item from the
Operation Modes screen:
54
