Connecting to an amplifier

When connecting to an amplifier, great care and attention needs to be given to
ensure the proper test ports are utilized and connected to the proper transmit and
receive ports.

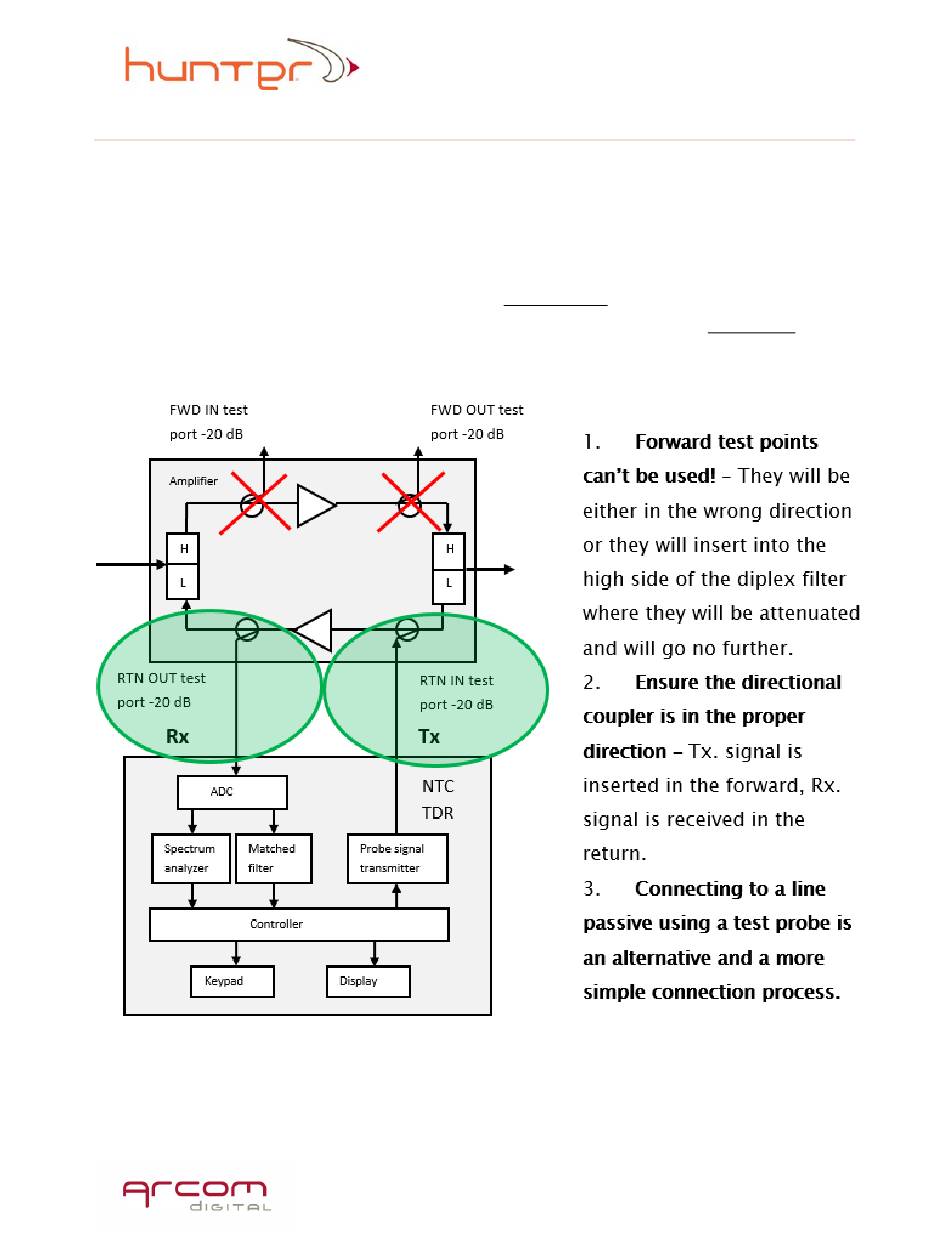

The required configuration is illustrated below – where the 5-42MHz transmitted
signal is inserted in the forward direction via a return input test port such that it can
pass through the diplex filter, and the reflected signal is received by a return out test
port
