Leakage Detector

The Quiver is equipped with the wide band analog leakage detector. The leakage
detection is possible at any analog TV signal carrier frequency within 55-883MHz.
The most easy and effective way for finding the leakage sources is to use frequency
range around 650 -750MHz. The antenna can be a simple piece of the coax cable with
exposed required length of the center conductor, or a loop dipole can be purchased
from Arcom.
To activate the leakage detector, attach the antenna to the left hand side input and
select menu item five by highlighting it with the vertical cursor keys or push 5 on the

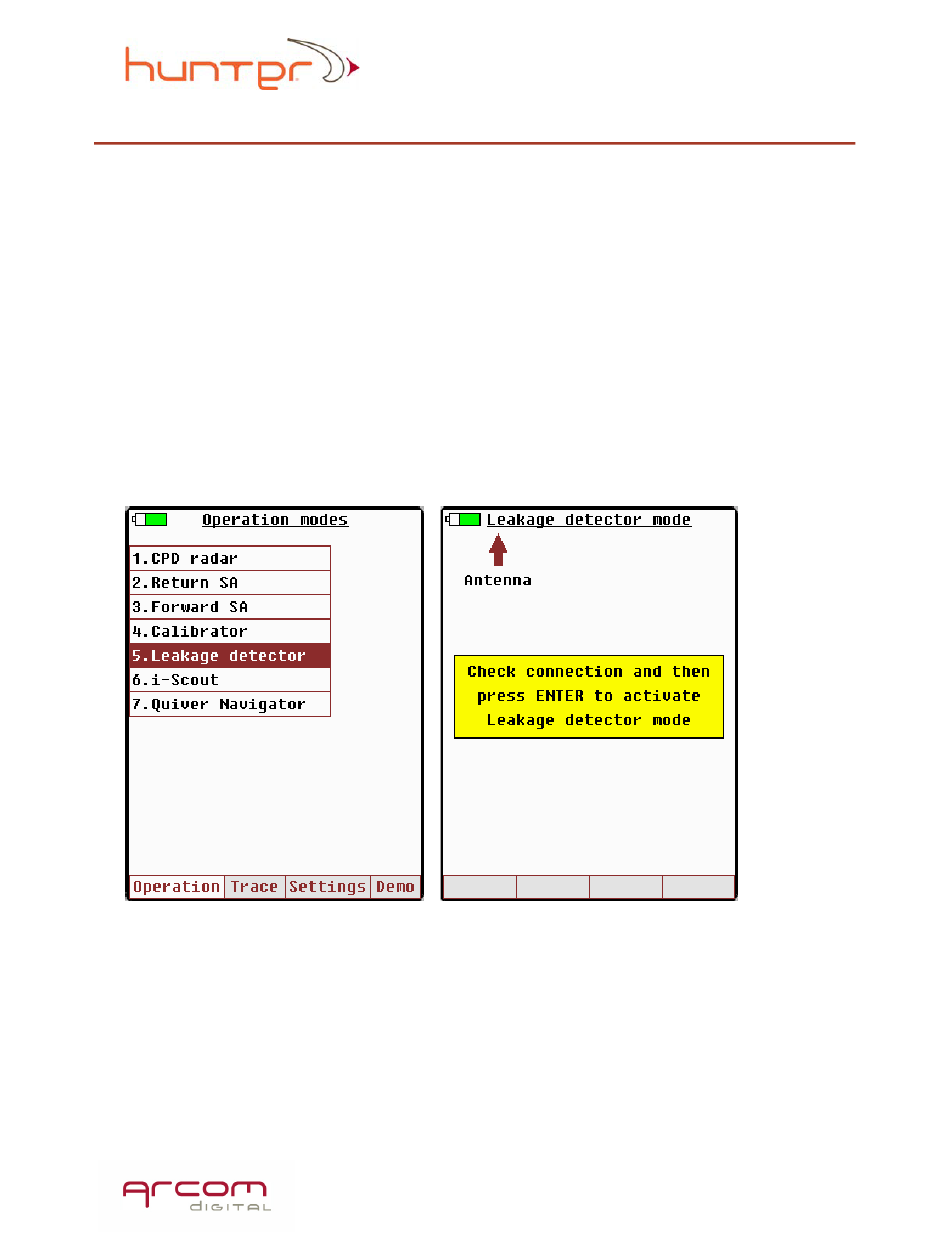

numerical keypad. Then press <Enter> and the following screen will appear:
After checking the connections press <Enter> again.
The detector will start working.
The next step is to select required channel frequency that will be used for
detection. First select value input method between channel or direct frequency input.
This is realized with the <Freq.> soft key. That key toggles between the <Freq.> and
<Chan.>. Then press 1 on the numerical keypad. This action will open the frequency
submenu.
