Then highlight required screenshot type on the list, for CPD radar select 1.CPD
radar or hit key 1 on the keypad and press <Enter> to open the records list.

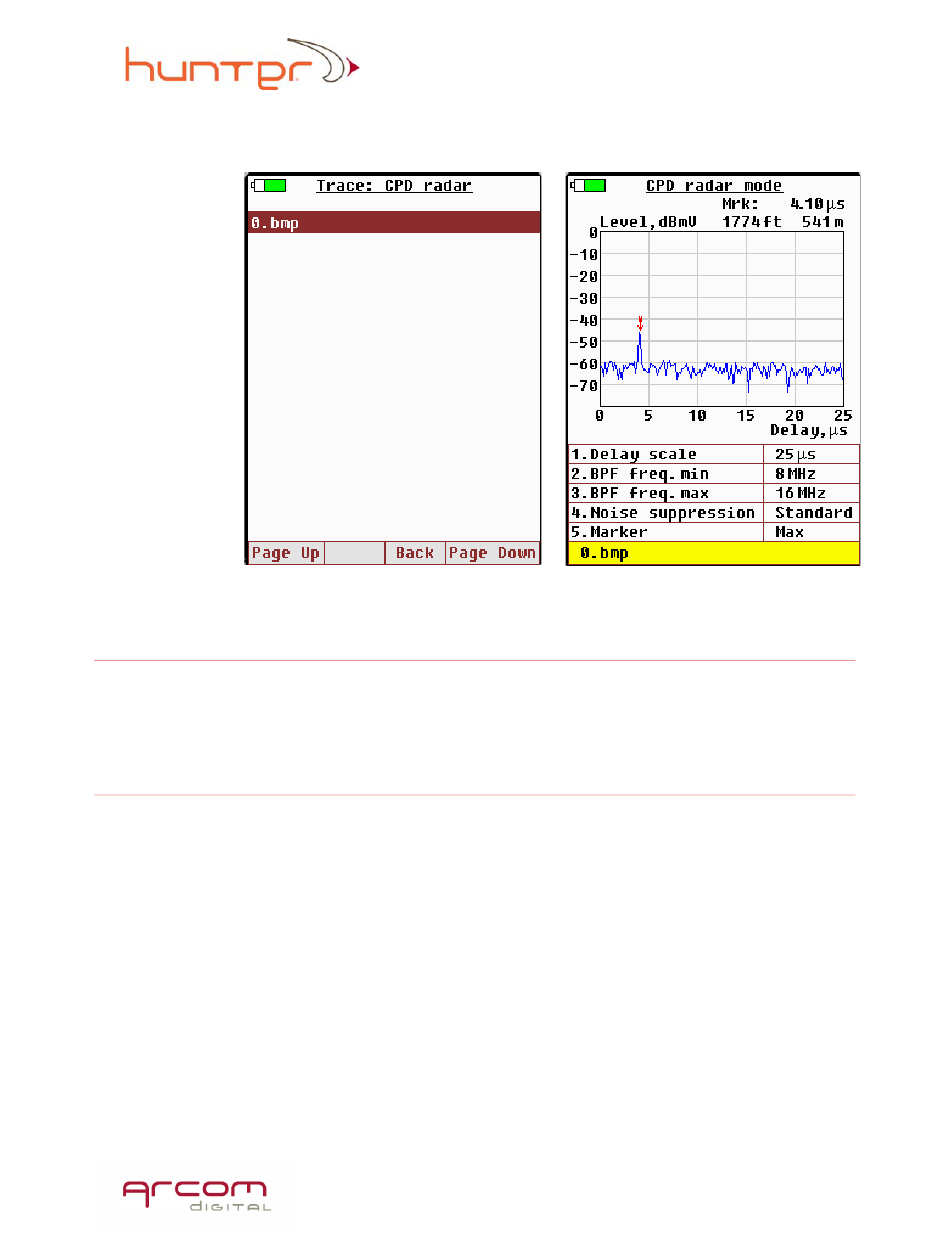

On the
open records
list select
required
record with the
cursor keys ^
and v then
press <Enter>
to open the
record.
Please
Note: While
viewing a
recalled trace, the Marker option is NOT active.

Clearing Traces

Once you have resolved a CPD issue, you can clear the saved traces from memory.
To delete the traces use Q-Browser and the mini USB port on the instrument. Refer to
the Q-Browser manual for the feature description.

Downloading Traces

The traces can be downloaded with the Q-Browser and the mini USB port on the
instrument. Refer to the Q-Browser manual for the feature description.
