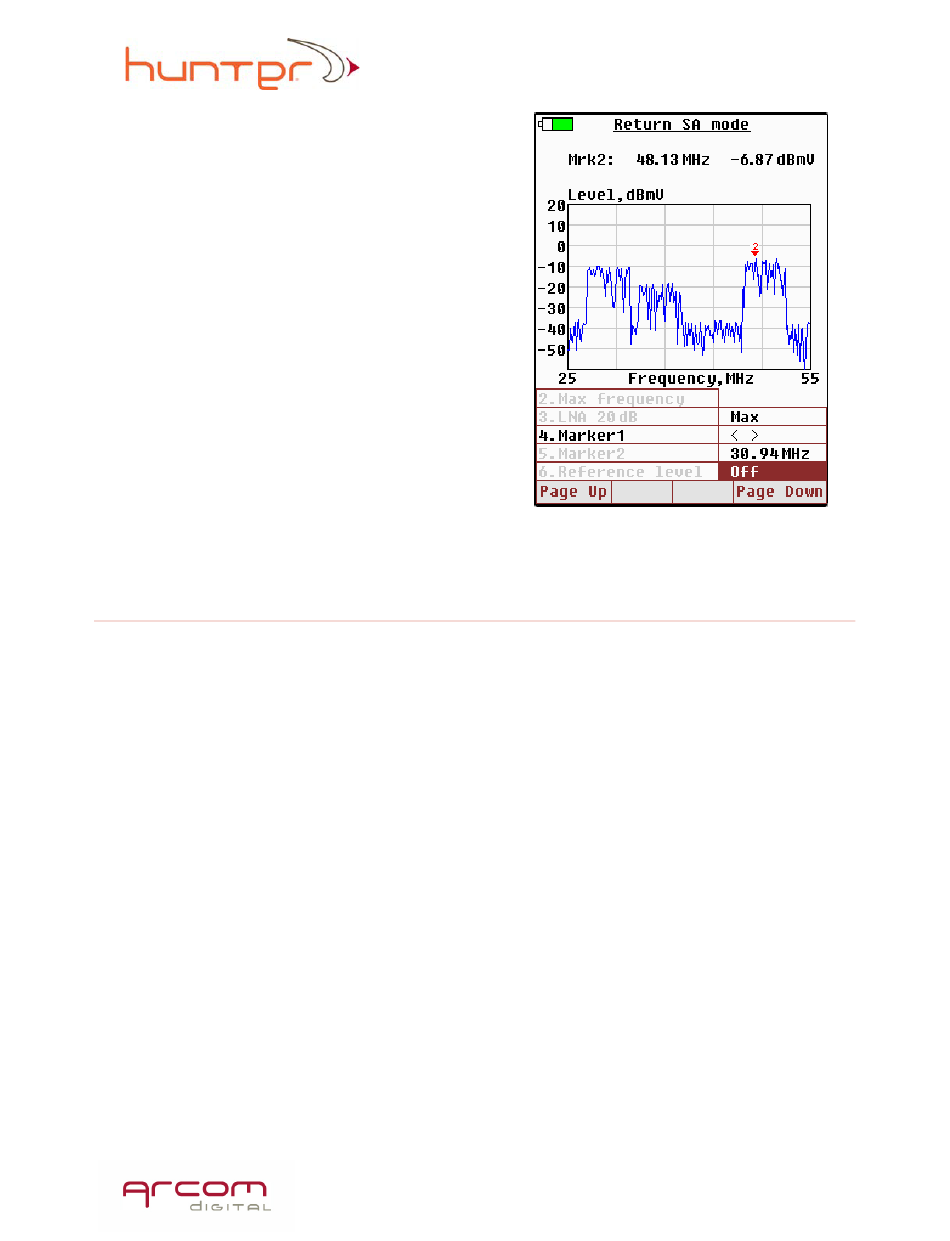

The default mode is Max which means
•
the marker will be put atop of the max
signal level frequency.
The second marker mode is offering
•
free selection of the frequency where
the marker is positioned. When the
second mode is selected the maker
can be navigated with the '< and >'
cursor buttons.
The third mode allows for the direct
•
frequency input and selecting with the
numerical keypad where exactly the
marker should be put.
The fourth mode is Marker OFF where
•
the particular marker is deleted from
the screen.

Using Max Hold

The Quiver has two Max Hold functions available. The basic Max Hold operates as
a typical spectrum analyzer feature. Additionally the current Max Hold result can be
stored on the screen temporarily and with the Hold function another signal source Max
Hold can be compared with the previously stored on the same screen offering easy
signal comparison. This is very helpful in working with noise and impulse noise when
fine details of the spectrum on the two sides of a splitter or tap need to be compared
To activate Max Hold hit <Hold Max> soft key. To deactivate Max Hold press
<Max Hold Off> soft key:
