Although all devices in the network can be calibrated, we recommend only
calibrating the fiber nodes. Node calibration is necessary for proper operation in the
headend view mode and is required in order to optimize scanning time for each node.
When nodes are calibrated, the scanning rate increases. This is not so important for
low node count hubs, but for larger systems it is of benefit.
Calibrator mode is not functional with the Quiver-XT-UB

Calibrator Connection Diagrams

Caution – You cannot put power through a device

Nodes

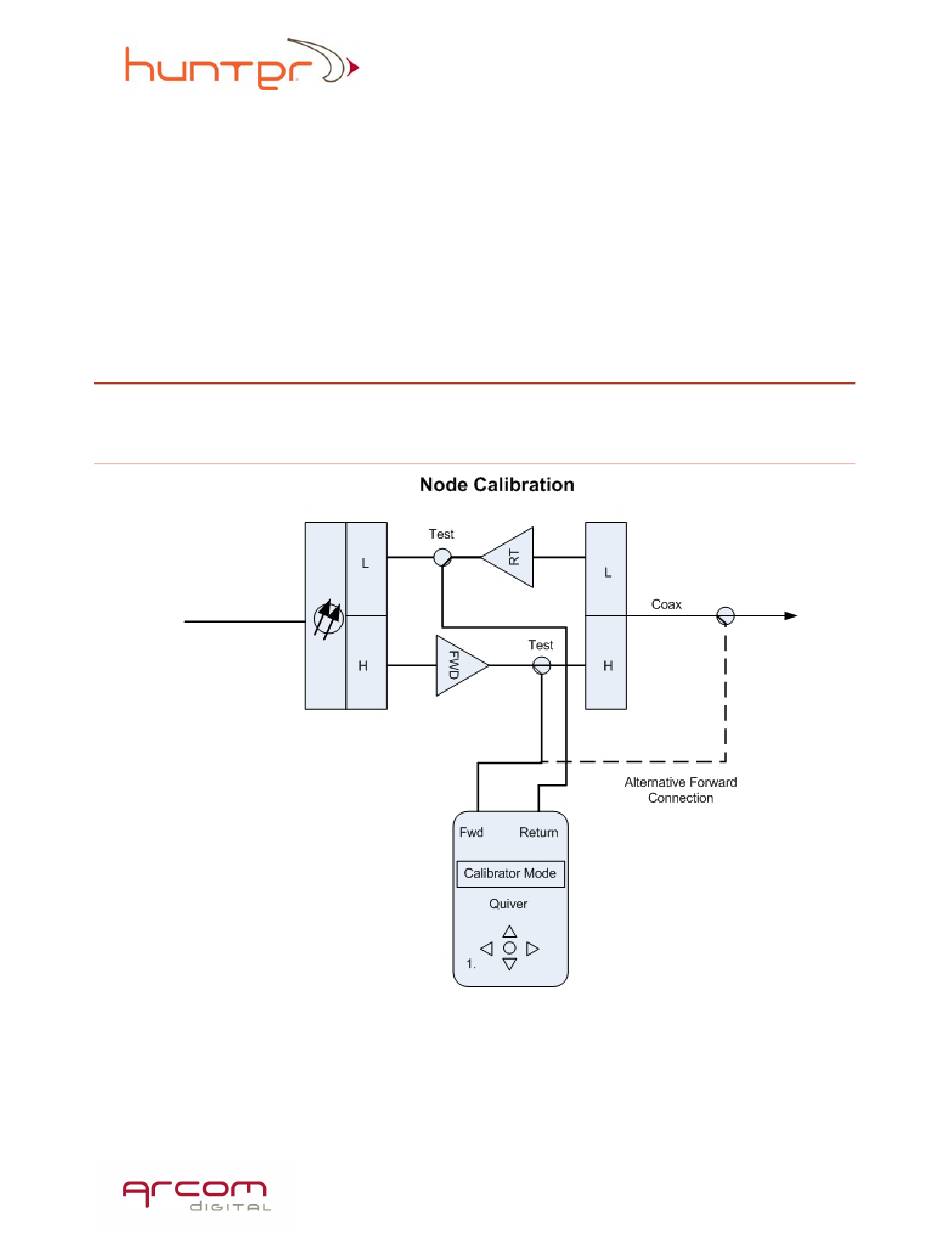

Node Calibration
51
