Spectrum analyzer/Signal level meter modes

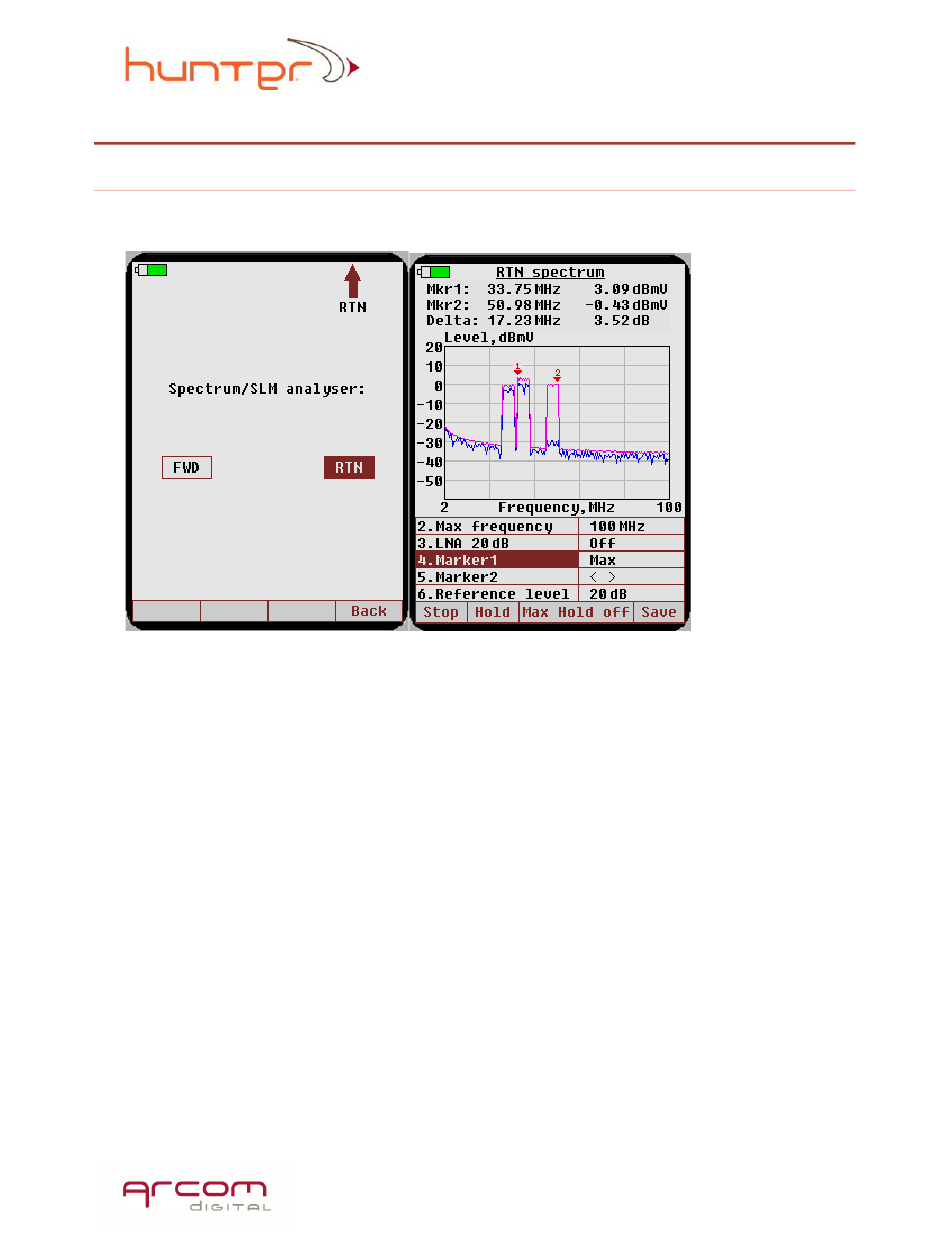

Return spectrum analyzer mode
Bandwidth of the return spectrum analyzer is 100 MHz. Enter RTN mode and
connect return input to the indicated port.
To set up Start frequency, highlight the settings menu item <Min frequency> by
using the cursor keys or hit 1 on the numerical keypad and press <Enter>. Then in the
appearing dialog box type in required frequency using the numerical keypad and press
OK soft key.
35
