Zoom mode in Passive radar

In this mode the CPD correlator works with the full return bandwidth, 5-42/65/85
to provide better time/distance resolution. The return bandwidth of the cross
correlator is selected at Settings – Measurement. Press the Zoom button to access
from the Passive radar screen.

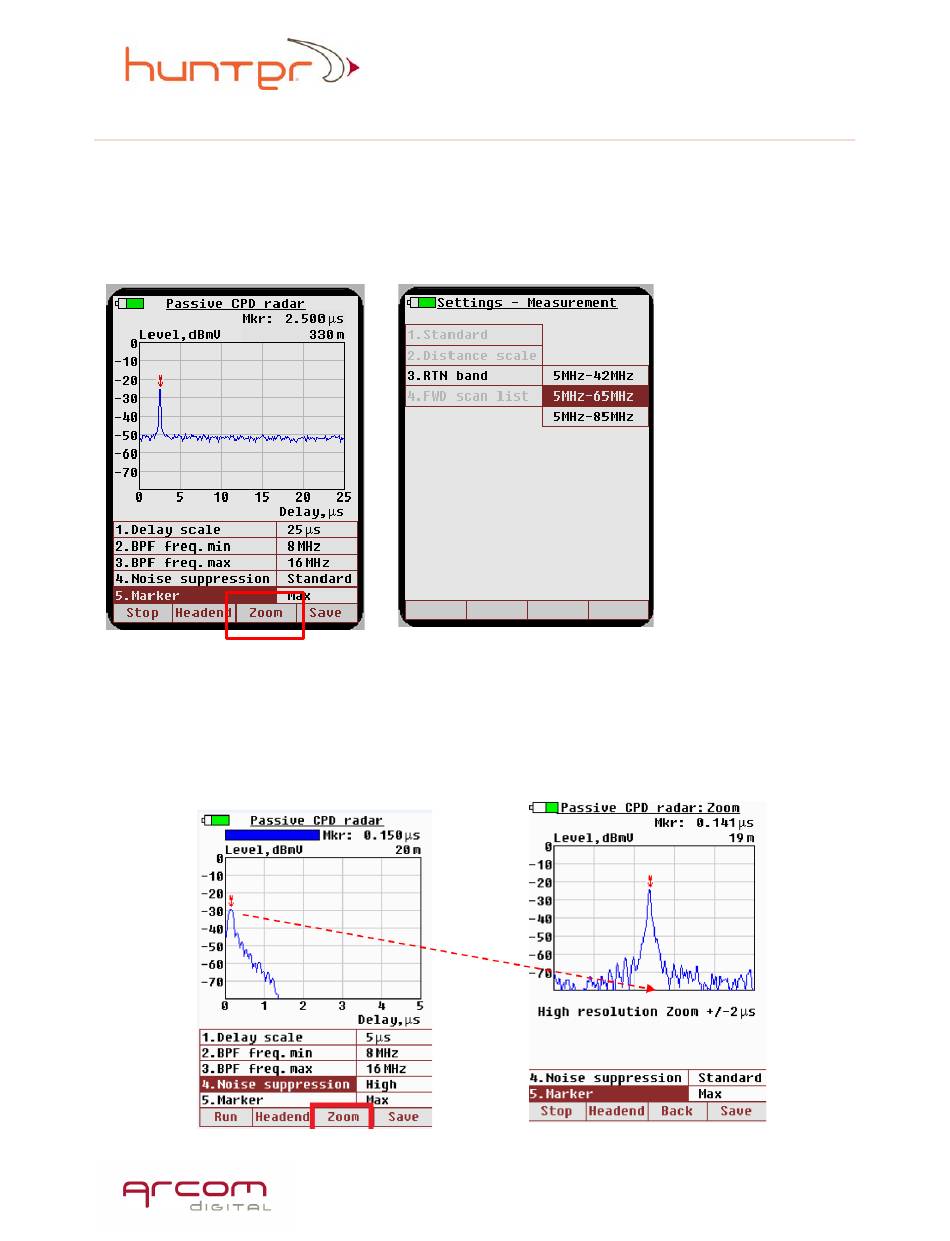

Actual zoom response example is shown below:
In zoom mode the peak with marker is placed in the center of screen –
•
with display x-axis showing +/- 2 µs from marker.
Note - CPD peak time delay in zoom mode is more accurate.
•
