Using the CPD Marker Option

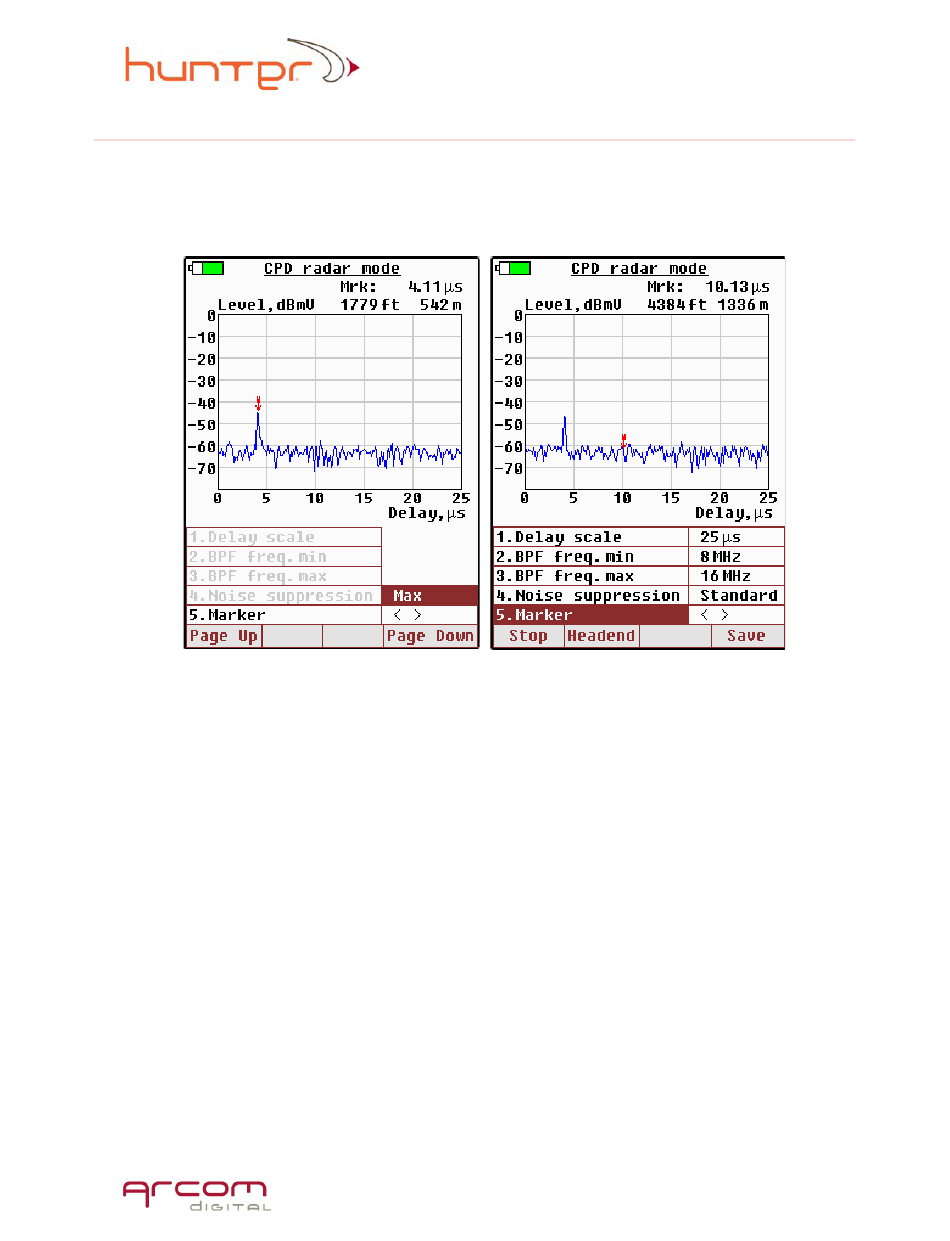

Quiver automatically sets a marker at the maximum level in the CPD signal
response. To move marker to a next or previous peak, use the ∨ to highlight menu
item Marker or hit 5 on keypad and press <Enter> to open the dialog box then use the
^ and v cursor keys select '<>' item and press
Then use < and > cursor keys to move the marker to the right or to the left of the
scale.
The actual time delay value of the marker position displays in the upper right
corner of the screen. Once you have the time delay value of the marker position
(maximum CPD), you will use it to search the system for candidate devices in the
Quiver Navigator software or mobile app. The distance to the CPD source is displayed
right below the delay value.
Please Note: This distance is calculated using averaged time delay for the cable and
does not reflect the data on the system map; it provides an approximate distance in
meters and feet.
