Replacing the Charger Board Assembly

1. Refer to the section 3.7 to take out the internal mechanism.

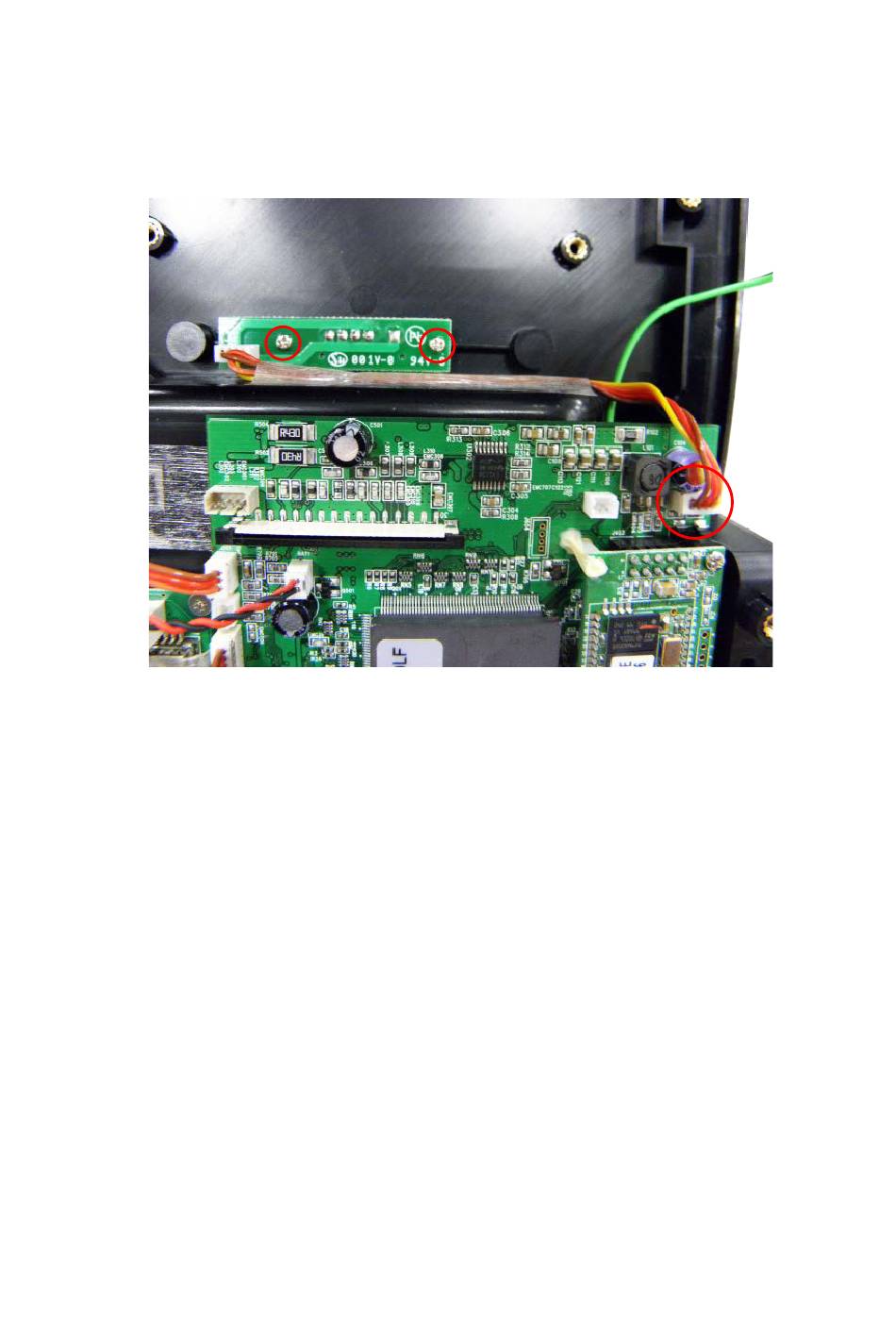

2. Disconnect the connector on the main board. Remove 2 screws to replacing the charger
board assembly.
3. Reassemble the parts in the reverse procedures.
