3.11
Replacing the Peel-off Module

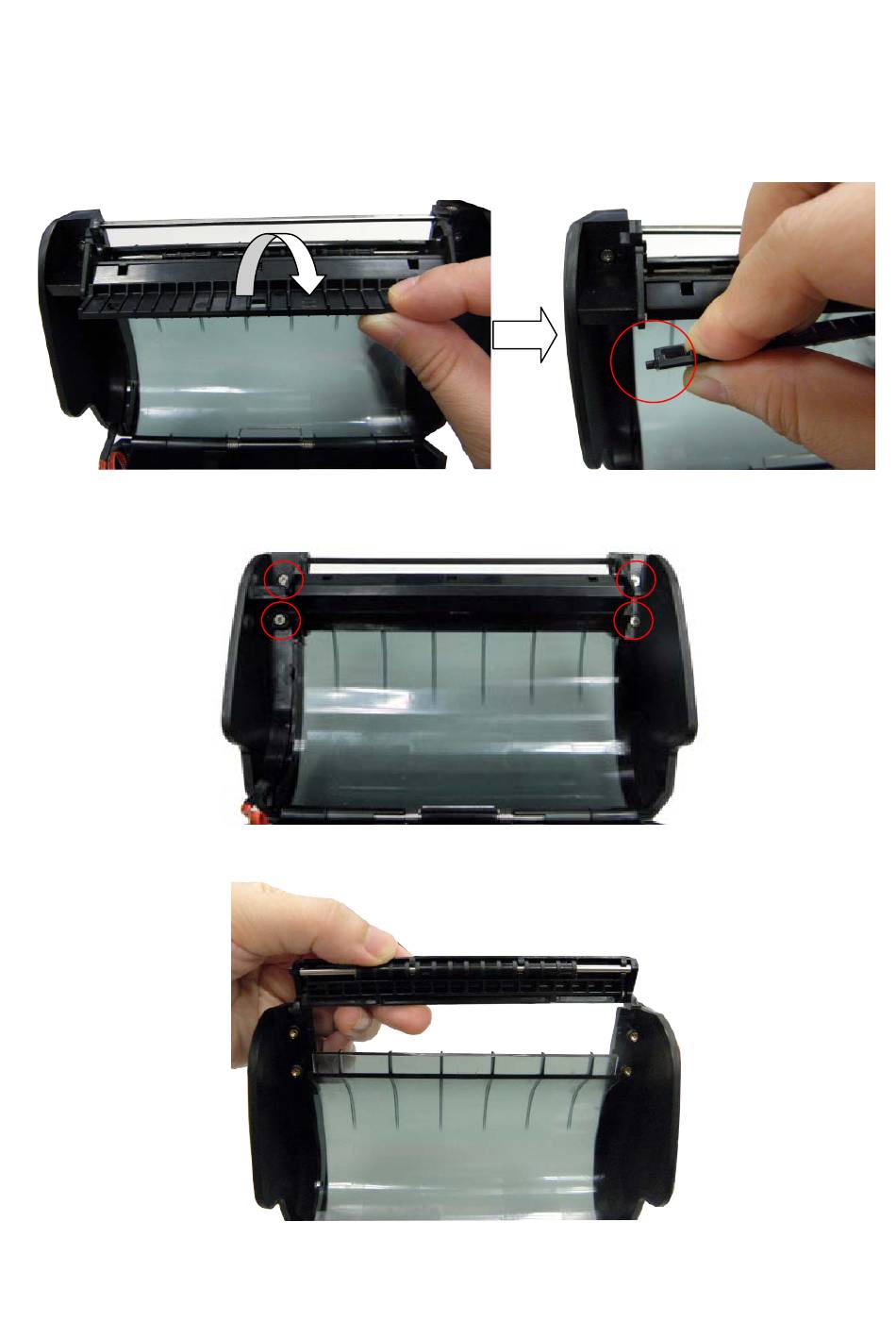

1. Refer to sections 3.1 and 3.7 to remove the platen roller and take out the internal
mechanism.
2. Remove the black mark sensor cover.
3. Remove 4 screws on upper cover to take out the black mark sensor module.
4. Replacing the Peel-off cover.
5. Reassemble the parts in the reverse procedures.
