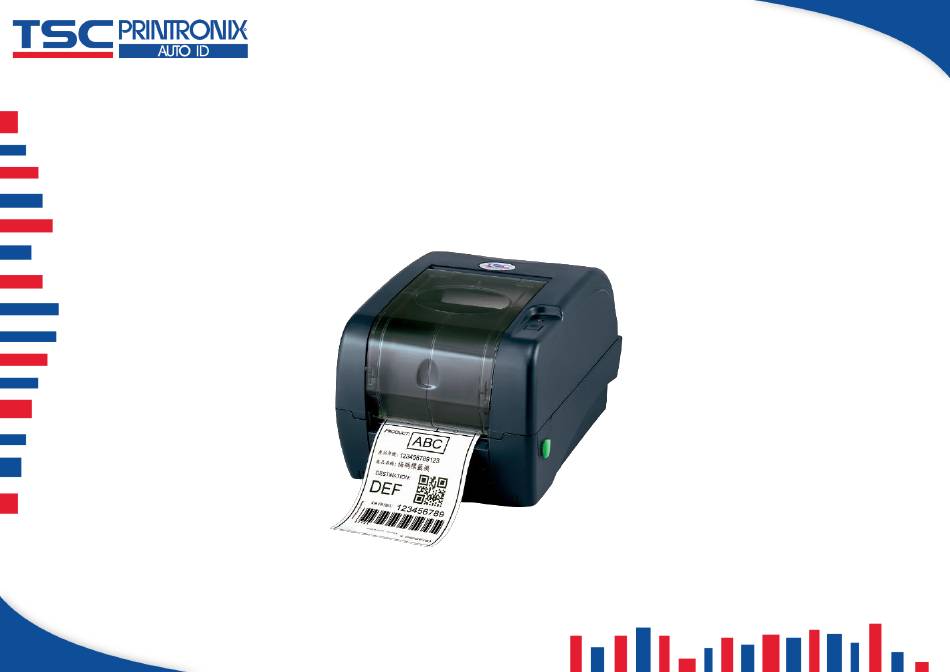

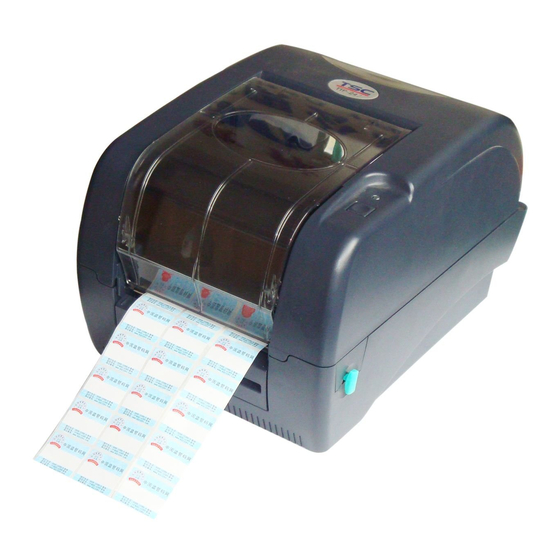

  • Page 1 TTP-247 Series   Thermal Transfer Direct Thermal Desktop Barcode Printers Series Lists: User Manual TTP-247/ TTP-345 TTP-245 Plus / TTP-343 Plus...
  • Page 2 All other trademarks are the property of their respective owners. Information in this document is subject to change without notice and does not represent a commitment on the part of TSC Auto ID Technology Co. No part of this manual may be reproduced or transmitted in any form or by any means, for any purpose other than the purchaser’s personal use, without the...

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction ........................................1 2. Operation Overview ......................................2 2.1 Unpacking and Inspection ....................................2 2.2 Equipment Checklist ....................................2 2.3 Printer Overview ......................................4 2.3.1 Front View ......................................4 2.3.2 Rear View ......................................5 3. Setup ..........................................6 3.1 Setting up the Printer ....................................6 3.2 Instructions to Top Cover Operation................................7 3.3 Loading the Ribbon ......................................9 3.4 Loading the Label Stock.....................................
  • Page 4 5. TSC Console ........................................21 5.1 Start TSC Console ..................................... 21 5.2 Setup Ethernet Interface .................................... 23 5.3 Set WiFi and Add to TSC Console Interface .............................. 25 5.4 Initialize the Printer WiFi Setting ................................28 5.5 Printer Function ......................................29 5.6 Setting Post-Print Action ....................................

  • Page 5: Introduction

    This document provides an easy reference for operating this printer. TSC printers include the Windows labeling software for creating your label template. For system integration, the TSPL/TSPL2 printer programming manual or SDKs can be found on TSC website at: https://www.tscprinters.com.

  • Page 6: Operation Overview

    2. Operation Overview 2.1 Unpacking and Inspection This printer has been specially packaged to withstand damage during shipping. Please carefully inspect the packaging and printer upon receiving the bar code printer. Please retain the packaging materials in case you need to reship the printer. 2.2 Equipment Checklist ...
  • Page 7 Dealer option  Peel off module assembly Support paper: Art paper (Plain paper) Support label length: 1”~6” Support speed: 2~3 ips  Guillotine cutter Full cut: Media thickness: 0.06~ 0.19mm Media type: receipt and label liner w/o glue Partial cut: Media thickness: 0.06~0.12mm Media type: receipt and label liner w/o glue Note: Except for the linerless cutter, all regular/heavy duty/care label cutters DO NOT cut on media with glue.

  • Page 8: Printer Overview

    2.3 Printer Overview 2.3.1 Front View Ribbon Access Cover Clear Window LED Indicator Feed Button Printer Top Cover Top Cover Open Lever...

  • Page 9: Rear View

    2.3.2 Rear View Rear Paper Guide USB Interface Centronics Interface RS-232C DB-9 Interface Power Jack Power Switch Note: The interface picture here is for reference only. Please refer to the product specification for the interfaces availability.

  • Page 10: Setup

    3. Setup 3.1 Setting up the Printer Place the printer on flat surface. Make sure the printer is power off. Connect the printer to the computer with the provided USB cable. Plug in the power cord.  Note: Please switch OFF the printer before plugging in the power cord to printer power jack.

  • Page 11: Instructions To Top Cover Operation

    3.2 Instructions to Top Cover Operation Please take care when opening or closing the printer’s top cover by carefully following these instructions. When Opening: When facing the front of the printer pull the cover release levers on both sides of printer towards you. Lift up the top gradually.
  • Page 12 Please open the top cover to the ultimate angle to close the top cover again. Use both hands to push top cover to close it. Note: Please refer to videos on TSC YouTube or driver CD.

  • Page 13: Loading The Ribbon

    Attach the ribbon leader to the ribbon rewind paper core. Rotate the ribbon rewind paper core until the ribbon leader is thoroughly, firmly encompassed by the black section of the ribbon. Close the ribbon access window. Note: Please refer to videos on TSC YouTube or driver CD.
  • Page 14 Ribbon installation (I) Paper Core Ribbon Access Cover Ribbon Spindle Back Hub Front Hub Ribbon installation (II) Ribbon Lead Tape Ribbon supply spindle Rear Hub Ribbon Rewind Spindle with Paper Core...

  • Page 15: Loading The Label Stock

    3.4 Loading the Label Stock Insert a 1” label spindle into a paper roll ( * f your paper core is 1 inch, remove the 1.5” core adapter from the fixed tab. If label width is 4 inch wide, two fixing tabs are not required.) 1.5”...

  • Page 16: External Label Roll Mount Installation (Option)

    3.5 External Label Roll Mount Installation (Option) Attach the external roll mount to the printer Open the printer top cover. Feed the paper to the external paper feed opening slot. Feed the paper, printing side face up, then adjust the paper guides to fit the paper width. Close the printer top cover by lifting the top cover to the maximum opening angle then push down the top cover gently.

  • Page 17: Peel-Off Module Installation (Option)

    3.6 Peel-off Module Installation (Option) Open the top cover and remove the front panel from the printer. Front Panel Open the top cover Use a screwdriver to screw off 6 screws on the lower inner cover.
  • Page 18 Upside down the printer. Remove two screws at the hinge and remove one screw at memory card cover. Hold the lower cover to lift up the top cover open levers to separate the the mechanism. Arrange the cable through the bezel amd Connect the peel-off panel cable to the 5-pin socket on printer PCB. Bezel 5-pin Socket Peel-off panel Cable...
  • Page 19 Arrange the lower inner cover back to the lower cover. Lift up the peel-off panel to the lower cover to close it. Use a screwdriver to screw down whole screws on the lower inner cover and the lower cover. Close the top cover by arranging the top cover support back to the flute and push it forward then close the cover slowly.

  • Page 20: Loading Label In Peel-Off Mode (Option)

    3.7 Loading Label in Peel-Off Mode (Option) Insert a 1” label spindle into a paper roll. Open the printer top cover. Peel-off panel Backing paper Opening Top Cover Open Lever Install the paper roll on the paper roll mount. Pull out the peel-off cover.
  • Page 21 1. Pull the label outward tightly after closing the top cover. 2. Both thermal paper and plain paper apply for peel-off function but neither PVC nor vynle work at peel-off function. 3. Please refer to videos on TSC YouTube or driver CD.

  • Page 22: Loading Label In Cutter Mode (Option)

    3.8 Loading Label in Cutter Mode (Option) Insert a 1” label spindle into a paper roll. Open the printer top and install a paper roll on the paper roll mount. Feed the paper and lead the paper through the cutter paper opening. Adjust the paper guide to fit the paper width.

  • Page 23: Led And Button Functions

    4. LED and Button Functions 4.1 LED Indicator Color Meaning Solid: Power is on and ready to be used. (Green) Flash :System is downloading data or printer is paused. System is clearing data. (Amber) Solid - Printer head open, cutter error. (Red) Flash - Printing error, such as paper empty, paper jam, ribbon empty, or memory error etc.

  • Page 24: Power-On Utilities

    4.3 Power-on Utilities Power-on Utilities provides the basic functions and can be activated by below procedures: Turn off the power > Hold the Feed button > Open the power > Release the Feed button depending on the the color of the LED. Sequences of the settings: LED Colors Green...

  • Page 25: Tsc Console

    5. TSC Console TSC Console is a management tool combining the Printer Management, Diagnostic Tool, CommTool and Printer Webpage settings, which enables you to adjust printer’s settings/status; change printers’ settings; download graphics, deploy fonts, graphics, label templates or upgrade the firmware to the group of printers, and send additional commands to printers at the same time ※...
  • Page 26 Select the current interface of the printer. The printer will be added to TSC Console’s interface. Select the printer and set the settings.  For more information, please refer to TSC Console User Manual.

  • Page 27: Setup Ethernet Interface

    5.2 Setup Ethernet Interface  Use USB or COM to establish the interface on TSC Console.  Double click to enter the Printer Configuration Page > Click Ethernet tab > Check the IP Address.
  • Page 28  Choose Network > Key in the IP Address > Click Discover to establish the Ehternet interface.  The notification will pop up > Click OK to close the window > The Ethernert interface will be shown on TSC Console.

  • Page 29: Set Wifi And Add To Tsc Console Interface

    5.3 Set WiFi and Add to TSC Console Interface  Use USB or COM Port to set up the interface. (refer to chp.5.1)  Double click to enter the printer configuration page.  Click Get to receive printer’s information. ...
  • Page 30 For WPA-Personal Fill-in the SSID. Select the Encryption option to WPA-Personal. III. Fill-in the Key. Select DHCP to ON. (For OFF option, please fill-in the IP Address, Subnet Mask and Gateway) After setting, click the Set button. Note: Before setting, the entered field will be shown in yellow for reminding.
  • Page 31  After clicking Set button, it'll pop-up the window tip as below shown.  IP address will be shown in the “IP address” field. Note: IP address should be shown within about 5~15 seconds after printer turn on. If not, please refer to steps below to initialize the printer Wi-Fi module settings then to setup it again.

  • Page 32: Initialize The Printer Wifi Setting

    5.4 Initialize the Printer WiFi Setting Return to the main page of TSC Console. Click Functions to expand the page. Click Wi-Fi Default to initialize the printer Wi-Fi module setting to factory default setting.

  • Page 33: Printer Function

    5.5 Printer Function Printer Function could be found in Printer Configuration. “Printer Function” will be shown on the left side of the window. Functions Description Calibrate Sensor Detect media types and the size of the label RTC Setup Synchronize printer with Real Time Clock on PC Factory Default Initialize the printer to default settings Reset Printer...

  • Page 34: Setting Post-Print Action

    When the printer is equipped with other opton kits, ex: cutter, peeler, rewinder, please select the mode after finishing the calibration. Follow below procedure to set the post action for the printing: Refer Chp 5.1 to Connect the printer with TSC Console > Double click the printer >...

  • Page 35: Troubleshooting

    6. TroubleShooting This section lists the common problems that according to the LED status and other problems you may encounter when operating the printer. Also, it provides solutions. LED Status LED Status / Color Printer Status Possible Cause Recovery Procedure * Turn on the power switch.
  • Page 36 Print Problem Problem Possible Cause Recovery Procedure Not Printing Check if interface cable is well connected to the Re-connect cable to interface. interface connector. The serial port cable pin configuration is not pin to pin Please replace the cable with pin to pin connected. connected.
  • Page 37 Adjust the print density and print speed. Check if print density is set properly. Run printer self-test and check the print head test Check print head test pattern if head element is pattern if there is dot missing in the pattern. damaged.

  • Page 38: Maintenance

    7. Maintenance This session presents the clean tools and methods to maintain the printer.  For Cleaning Depending on the media used, the printer may accumulate residues (media dust, adhesives, etc.) as a by-product of normal printing. To maintain the best printing quality, you should remove these residues by cleaning the printer periodically. Regularly clean the print head and supply sensors once change a new media to keep the printer at the optimized performance and extend printer life.
  • Page 39 Cleaning Tools  Cotton swab  Lint-free cloth  Brush with soft non-metallic bristles  Vacuum cleaner  75% Ethanol (for disinfecting)  99% Isopropyl alcohol (for printhead and platen roller cleaning)  Genuine printhead cleaning pen  Mild detergent (without chlorine) Cleaning Process: Printer Part Method...

  • Page 40: Angency Compliance And Approvals

    8. Angency Compliance and Approvals CE Class B: EN55022: 1998+A1: 2000+A2: 2003 EN55024: 1998+A1: 2001+A2: 2003 IEC 61000-4 Series EN61000-3-2: 2006 & EN61000-3-3: 1995+A1: 2001 FCC Part 15, Class B UL, CUL C-Tick: CFR 47, Part 15/CISPR 22 3 Edition: 1997, Class B ANSI C63.4: 2003 Canadian ICES-003 TÜ...
  • Page 41 CAUTION 1. HAZARDOUS MOVING PARTS IN CUTTER MODULE. KEEP FINGER AND OTHER BODY PARTS AWAY. B 급기기 가정용 정보통신기기 이 기기는 가정용으로 전자파 적합등록을 한 기기로서 주거지역에서는 물론 모든 지역에서 사용할 수 있습니다. Model name Resolution TTP-245 Plus 系列 203 dpi TTP-343 Plus 系列...
  • Page 42 設備名稱：熱轉式/熱感式條碼印表機，主型號（型式）：TTP-247 系列 Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 多溴聯苯 六價鉻 多溴二苯醚 Hexavalent Ｕnit 單元 鉛 汞 鎘 Lead Mercury Cadmium Polybrominated chromium Polybrominated (Pb) (Hg) (Cd) biphenyls (PBDE) diphenyl ethers (PBB) ○ ○ ○ ○...
  • Page 43 ○ ○ ○ ○ ○ 馬達 ○ ○ ○ ○ ○ 插座 ○ ○ ○ ○ ○ 線材 備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值。 Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.

  • Page 44: Revise History

    9. Revise History Date Content Editor...
