TSC Alpha-4L Service Manual page 16

Direct thermal portable printer
Hide thumbs Also See for Alpha-4L:
Table of Contents

Advertisement

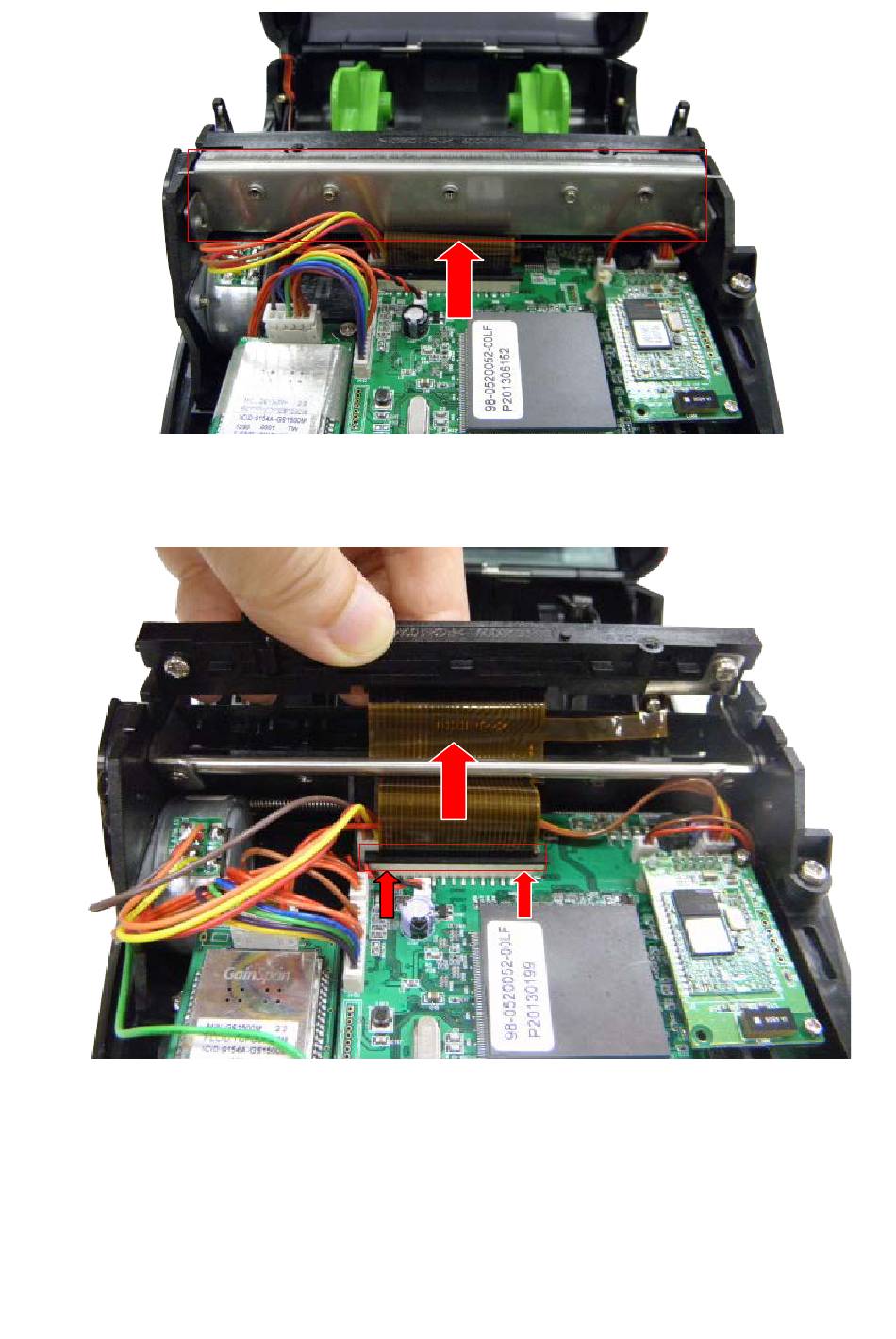

5. Loosen the connector lock (black) then disconnect the flat cable from the main board.
Remove the print head assembly.
2
1
6. Replace the print head assembly.
15
