3.12

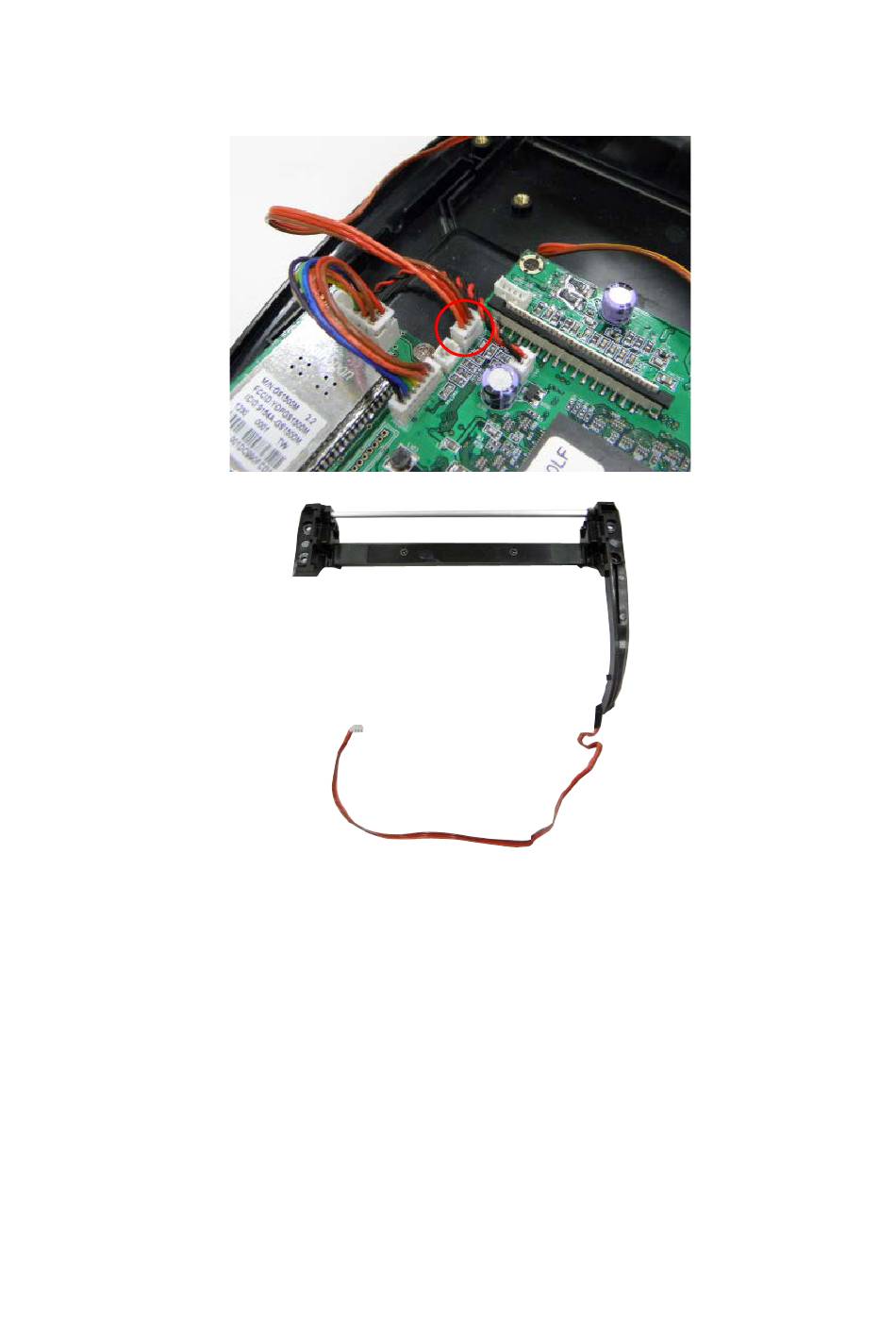

Replacing the Black Mark Sensor Assembly

1. Refer to sections 3.11 to take out the black mark sensor assembly. Disconnect the black
mark sensor connector from main board.
2. Reassemble the parts in the reverse procedures.
26
