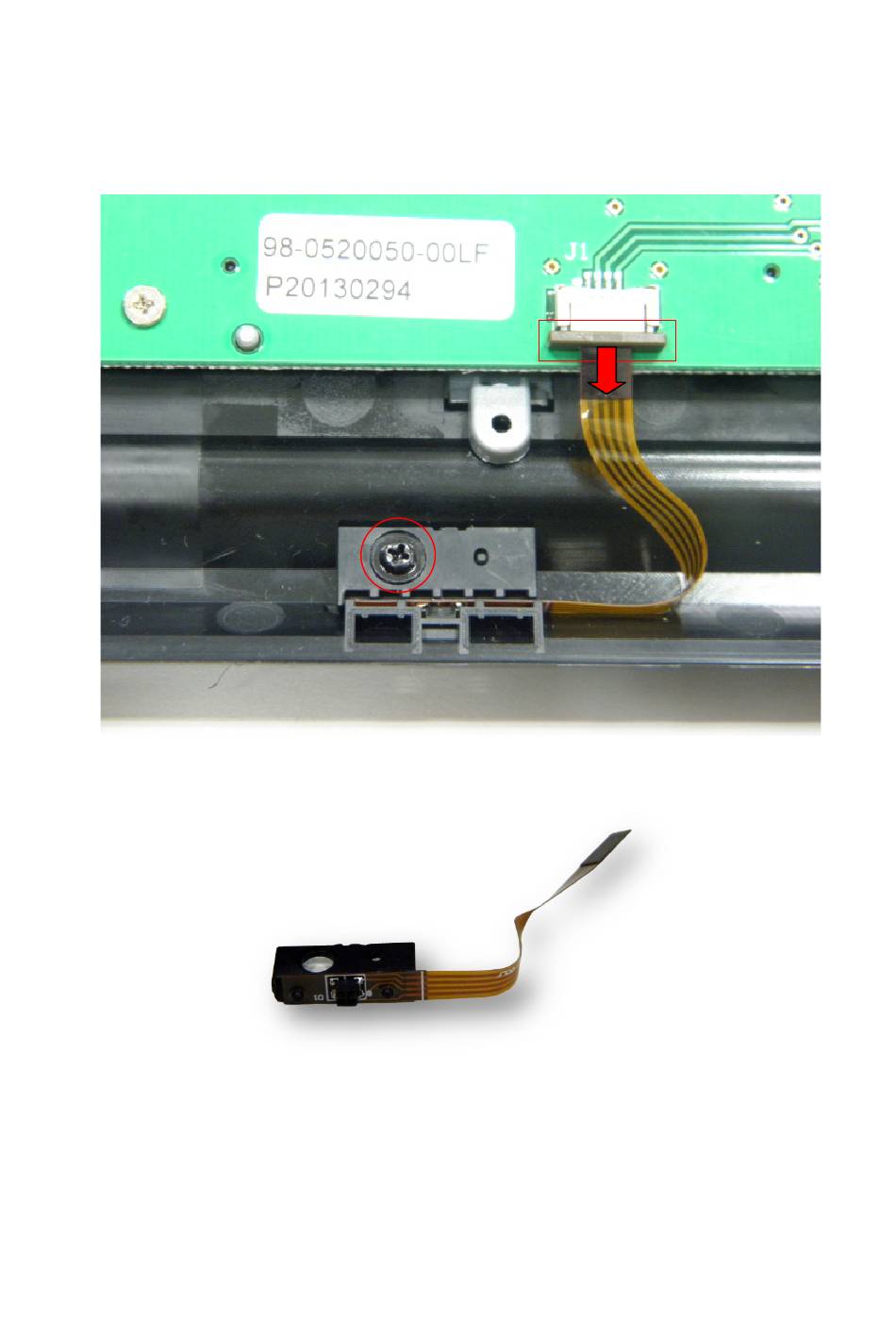

3.4 Replacing the Peel-off Sensor Module

Refer to section 3.2 to remove the upper cover.
1.
Disconnect the peel-off sensor connector by loosen the connector lock for panel board.
2.
Remove 1 screw.
Replace the peel-off sensor module.
3.
Reassemble the parts in the reverse procedures.
4.
18
