3.7 Replacing the Stepping Motor

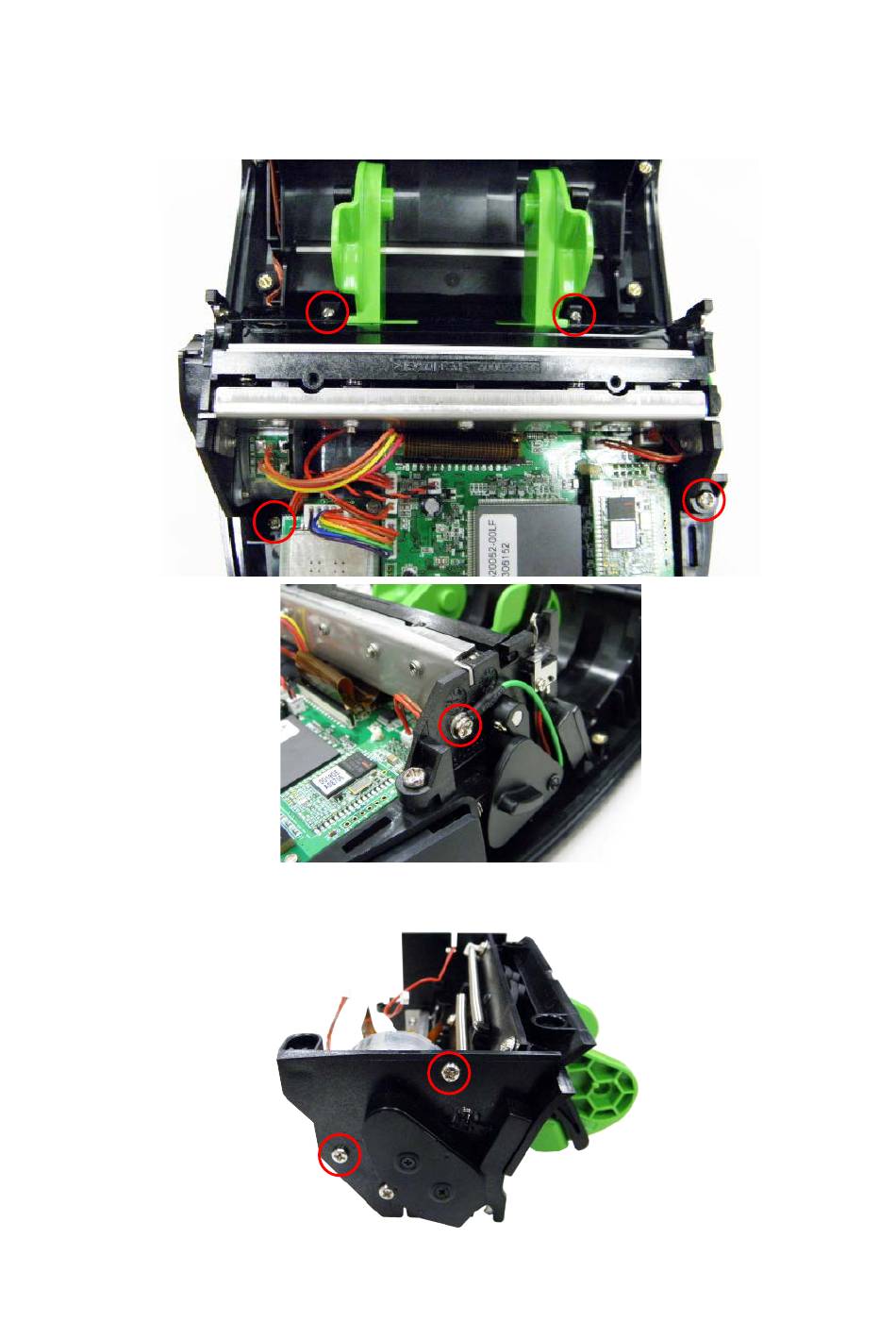

1. Refer to section 3.2 to remove the upper cover.
2. Remove 5 screws. Disconnect the connectors on main board to take out the internal
mechanism.
3. Remove 2 screws to replace the stepping motor.
4. Reassemble the parts in the reverse procedures.
21
