SBC82610 Half-size All-in-One CPU Card Series User's Manual
NOTE:
The COM1 and COM2, ports of SBC82610 are pin header type
connectors whereas for SBC82610 COM1 is a DB-9 connector and com2 &
a pin header

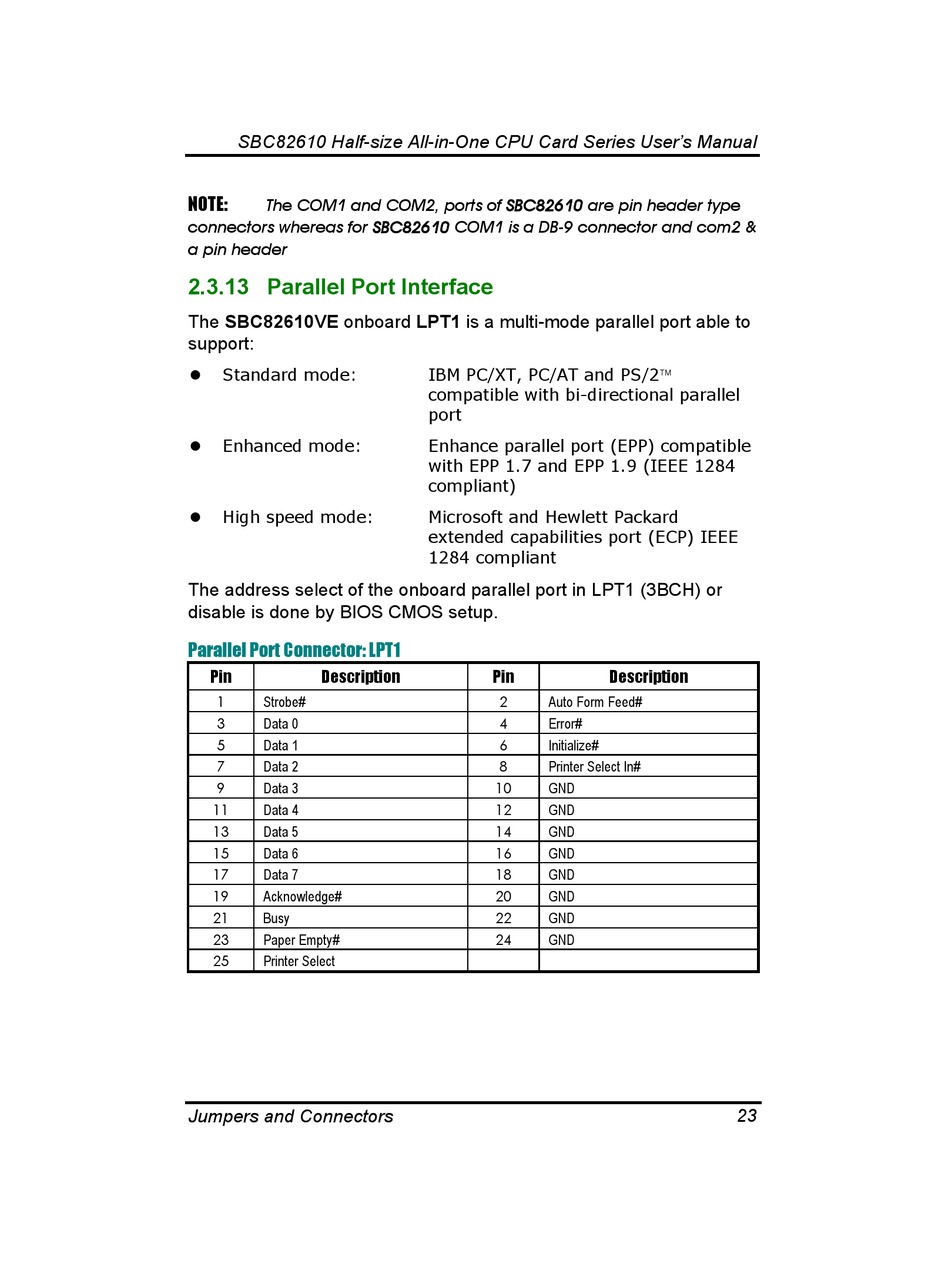

2.3.13 Parallel Port Interface

The SBC82610VE onboard LPT1 is a multi-mode parallel port able to
support:
Standard mode:
Enhanced mode:
High speed mode:
The address select of the onboard parallel port in LPT1 (3BCH) or
disable is done by BIOS CMOS setup.
Parallel Port Connector: LPT1
Pin Description
1
Strobe#
3
Data 0
5
Data 1
7
Data 2
9
Data 3
11
Data 4
13
Data 5
15
Data 6
17
Data 7
19
Acknowledge#
21
Busy
23
Paper Empty#
25
Printer Select
Jumpers and Connectors
IBM PC/XT, PC/AT and PS/2
compatible with bi-directional parallel
port
Enhance parallel port (EPP) compatible
with EPP 1.7 and EPP 1.9 (IEEE 1284
compliant)
Microsoft and Hewlett Packard
extended capabilities port (ECP) IEEE
1284 compliant
Pin
2
Auto Form Feed#
4
Error#
6
Initialize#
8
Printer Select In#
10
GND
12
GND
14
GND
16
GND
18
GND
20
GND
22
GND
24
GND
Description
23
