TP-580TD, TP-580RD Quick Start Guide
This guide helps you install and use your TP-580TD, TP-580RD for the first time.
Go to
firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box
TP-580TD, TP-580RD HDMI Line Transmitter / Receiver
1 Power adapter and cord

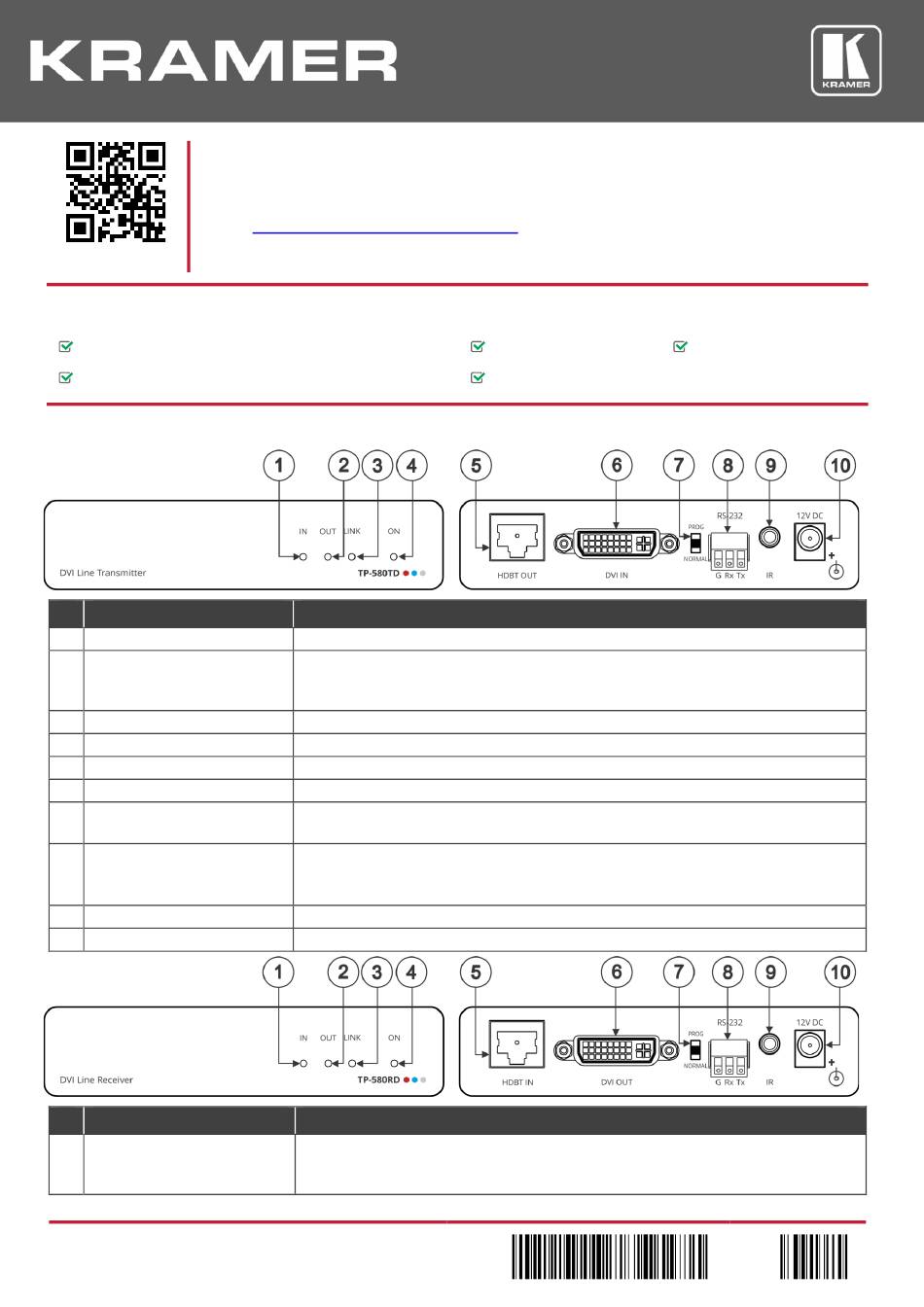

Step 2: Get to know your TP-580TD, TP-580RD
# Feature
1 IN LED
2 OUT LED
3 LINK LED
4 ON LED
5 HDBT IN RJ-45 Connector
6 DVI IN Connector
7 PROG/NORMAL Switch
8 RS-232 3-pin Terminal Block
Connector
9 IR 3.5mm Mini Jack Connector
10 12V DC Power Connector
# Feature
1 IN LED
TP-580TD, TP-580RD Quick Start
(P/N: 2900-300868QS REV 1)
www.kramerav.com/downloads/TP-580TD
Function
Lights green when an active DVI source device input signal is detected.
Lights green when an active, far-end sink (acceptor) DVI output signal is detected via the
HDBaseT link (a DVI signal is detected from a sink device connected to the HDBaseT receiver
that is connected to this output).
Lights green when an HDBT link is established with the HDBaseT receiver.
Lights green when the device receives power.
Connect to the RJ-45 OUT connector on a receiver (for example, TP-580RD).
Connect to a DVI source.
Slide to PROG to upgrade to the latest Kramer firmware via RS-232, or slide to NORMAL for
normal operation.
Connect to a laptop to control TP-580TD or perform firmware upgrade.
Connect to a controller device (for example, SL-240C) to serially control a remote device (for
example, the DVI OUT acceptor) that is connected to TP-580RD.
Connect to an external infrared emitter / sensor.
12V DC connector for powering the unit.
Function
Lights green when an active far-end source DVI input signal is detected via the HDBaseT link
(a DVI signal is detected from a source device connected to the HDBaseT transmitter that is
connected to this input).
to download the latest user manual and check if
4 Rubber feet
1 Quick start guide
P/N:
2900- 300868QS
1 Bracket set
Rev:
1
