Kramer TP-594Txr Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
TP-594Txr HDMI Line Transmitter or

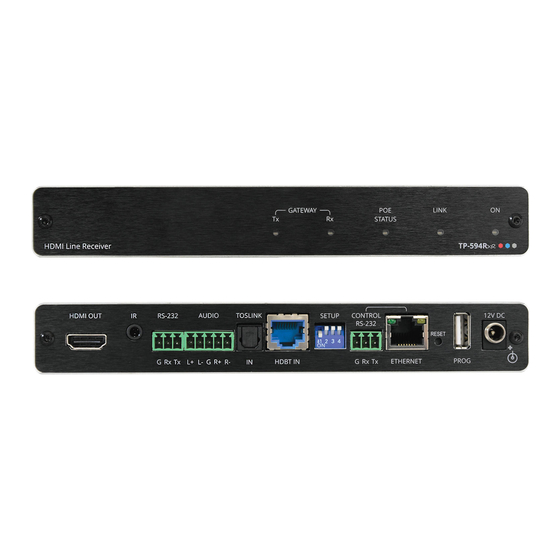

TP-594Rxr HDMI Line Receiver
1 Quick start guide

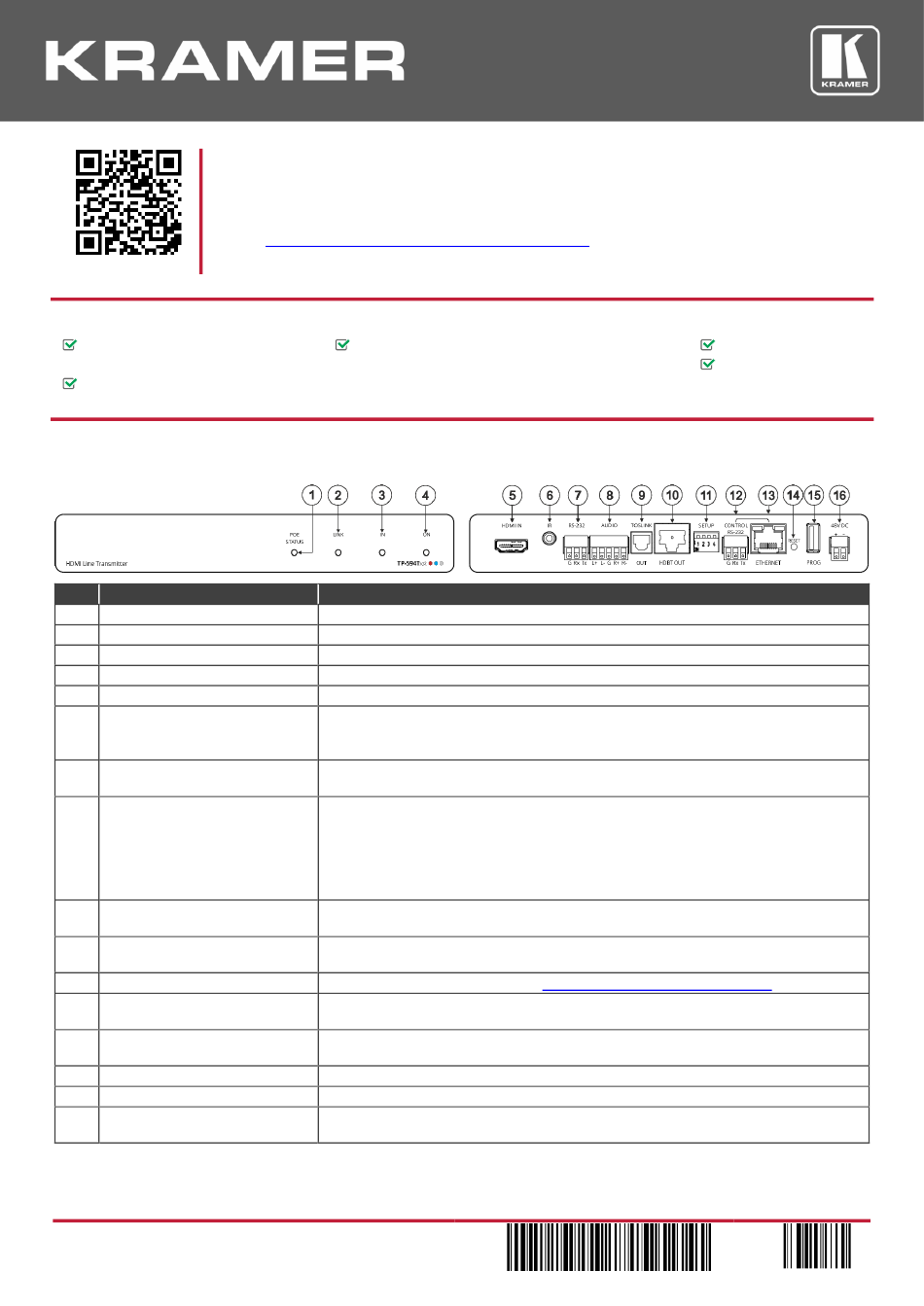

Step 2: Get to know your TP-594Txr / TP-594Rxr
TP-594Txr
# Feature
1 POE STATUS LED
2 LINK LED
3 IN LED
4 ON LED
5 HDMI™ IN Connector
6 IR 3.5mm Mini Jack Connector
7 RS-232 3-pin Terminal Block
Connector
8 AUDIO 5-pin Terminal Block
Connector
9 TOSLINK OUT Connector
10 HDBT OUT Connector
11 SETUP 4-way DIP-switches
12 CONTROL RS-232 3-pin Terminal
Block Connector
13 CONTROL ETHERNET RJ-45
Connector
14 RESET Recessed Button
15 PROG USB Port
16 48V DC Power Terminal Block
Connector
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
TP-594Txr / TP-594Rxr Quick Start
TP-594Txr/TP-594Rxr Quick Start Guide
This guide helps you install and use your TP-594Txr/TP-594Rxr for the first time.
Go to www.kramerav.com/downloads/TP-594Txr, TP-594Rxr
if firmware upgrades are available.
1 48V DC power adapter and cord for TP-594Txr or
1 12V DC power adapter and cord for TP-594Rxr
Function
Lights green when power is provided over the HDBT connection.
Lights green when the HDBT link is valid.
Lights green when an active source device input signal is detected.
Lights green when the device receives power.
Connect to an HDMI source.
Connect to an external IR emitter to control a local device from the receiver (TP-594Rxr)
side.
Connect to an IR sensor to control a remote device connected to the TP-594Rxr receiver.
Connect to a controller device (for example, SL-240C) to control a remote device via serial
controller (for example, the HDMI OUT acceptor) that is connected to TP-594Rxr.
Connect to either a stereo balanced audio source or acceptor (the connection type is
defined via the embedded web pages):
Connect an audio source to extend an audio signal from TP-594Txr to the audio acceptor
on the receiver side via the HDBT line.
Connect an audio acceptor to output the audio signal received from the audio source on
TP-594Rxr via the HDBT line.
Digital audio on a TOSLINK optical female connector, for outputting the digital audio signal
that is extended from the receiver to an audio acceptor.
Connect to the RJ-45 HDBT IN connector on a receiver (for example, TP-594Rxr or
TP-590Rxr) to extend the signals between the TP-594Txr and the receiver.
Set the operation DIP-switches (see
Connect to a PC to control the device.
Connect to a PC to control the device or for LAN extension.
Press and hold to reset settings to factory default values.
Connect to a USB memory device to upgrade the firmware.
Connect to the supplied power adapter.
to download the latest user manual and check
Step 4: Connect the inputs and
P/N: 2 9 0 0 - 3 0 1 0 1 5 QS
1 Bracket set
4 Rubber feet
outputs).
Rev:
2
