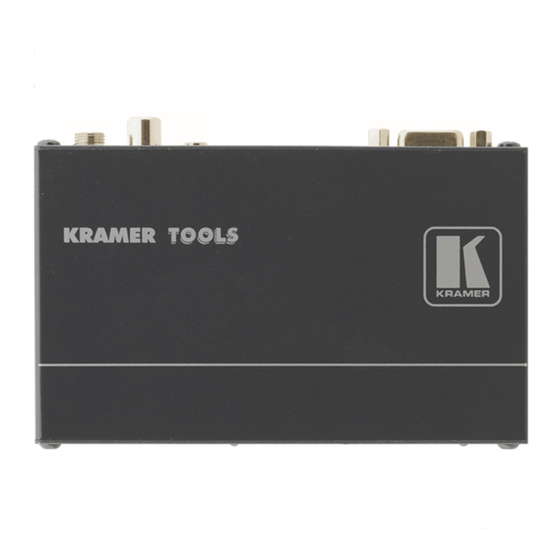

- Page 1 Kramer Electronics, Ltd. USER MANUAL Models: TP-145, XGA / Audio / Data Line Transmitter TP-146, UXGA / Audio / Data Line Receiver...
-
Page 2: Table Of Contents
Figure 5: RS-232 Pinout Connection Figure 6: TP Connector Tables Table 1: TP-145 XGA/Audio/Data Line Transmitter Front and Rear Panel Features Table 2: TP-146 UXGA/Audio/Data Line Receiver Front and Rear Panel Features Table 3: TP-146 Internal Polarity Switches and Descriptions... -
Page 3: Introduction
Our 1,000-plus different models now appear in 11 groups that are clearly defined by function. Thank you for purchasing the Kramer TOOLS TP-145 XGA/Audio/Data Line Transmitter , and/or TP-146 UXGA/Audio/Data Line Receiver which are ideal for: •... -
Page 4: Quick Start
Quick Start This quick start chart summarizes the basic setup and operation steps. Overview The TP-145 and TP-146 are high-performance, Twisted Pair (TP) transmitter and receivers for computer graphics video (including HDTV), unbalanced stereo audio, and RS-232 control commands. The TP-145 converts computer graphics video, unbalanced stereo analog audio, and RS-232 control commands to a TP signal. -
Page 5: Shielded Twisted Pair/Unshielded Twisted Pair
For cases where there is skewing, our Unshielded Twisted Pair (UTP) skew-free cable, Kramer BC-XTP, may be used. Bear in mind though, that we advise using STP cables where possible, since the compliance to electromagnetic interference has been tested using STP cables. -
Page 6: Recommendations For Achieving The Best Performance
• An unbalanced stereo analog audio signal • RS-232 control commands The TP-145 encodes the signals and transmits them over TP cable to a TP-146 receiver. The stereo analog audio signal is converted to a digital audio (S/PDIF) stream before transmission, thus preserving the quality of the audio source signals. -
Page 7: Defining The Tp-146 Uxga/Audio/Data Line Receiver
Defining the TP-146 UXGA/Audio/Data Line Receiver The TP-146 is a high-performance receiver that accepts the computer graphics signal/audio/control data from the Kramer TP-145 via TP cabling at its RJ-45 LINE IN input. The TP-146 outputs a computer graphics signal, an unbalanced stereo analog audio signal, a converted digital audio (S/PDIF) signal, and bi- directional RS-232 control commands and data. -
Page 8: Figure 2: Tp-146 Uxga/Audio/Data Line Receiver Front And Rear Panels
Defining the TP-145/TP-146 (660ft) with a Kramer TP-141/145 transmitter over TP cabling. In addition, the TP-146 features: • Level and Equalization control for the UXGA signal • The capability to change the polarity of the vertical and horizontal sync signals •... -
Page 9: 4.2.1 Internal Polarity And Sync Mode Switches
Default = left (RGBHV/VGA video) Connecting the TP-145 and the TP-146 You can use the TP-145 UXGA/Audio/Data Line Transmitter and the TP-146 UXGA/Audio/Data Line Receiver to configure a TP transmitter and receiver system that transmit video, audio, and RS-232 control signals via TP cable. -
Page 10: Figure 4: Connecting The Uxga/Audio/Data Line Transmitter/Receiver System
The S/PDIF AUDIO OUT RCA connector to a digital AV Receiver 1 Not supplied. The full list of Kramer cables is available from http://www.kramerelectronics.com. Alternatively, you can connect a UXGA source to the UXGA IN 15-pin HD (F) connector, and a separate audio source to the AUDIO IN 3.5mm mini connector... -
Page 11: Transmitting Via Rs-232
4.2.1) Transmitting via RS-232 It is possible to transmit data (for example, using a PC) between the TP-145 and TP-146 via the RS-232 terminal block. Prepare an RS-232 cable with a 9-pin D-sub connector at one end, and a 3 pin... -
Page 12: Acquiring The Edid
TP-145 to the input XGA connector of the display. 2. Connect power to the display and switch it on. 3. Plug the 12V DC power adapter into the power socket on the TP-145 and to the mains electricity. 4. Press the EDID CAPTURE button. -
Page 13: Technical Specifications
Technical Specifications Technical Specifications Table 6 lists the technical specifications of the TP-145 and TP-146. Table 6: Technical Specifications of the TP-145 and TP-146 TP-145 TP-146 INPUTS: Video: 1 XGA on a 15-pin HD connector 1 RJ-45 LINE IN connector Audio: 1 Analog 3.5mm mini connector... - Page 14 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 15 For the latest information on our products and a list of Kramer distributors, visit our Web site www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments, and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
