TP-590TXR Quick Start Guide
This guide helps you install and use your TP-590TXR for the first time.
Go to
Scan for full manual
upgrades are available.
Step 1: Check what's in the box

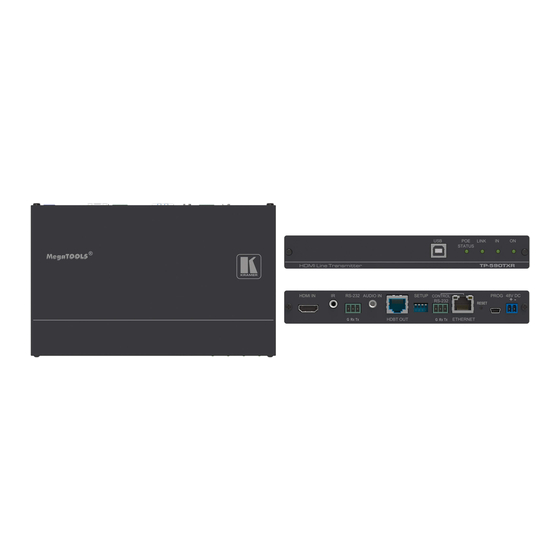

TP-590TXR HDMI Line Transmitter
1 Power supply (48V DC)

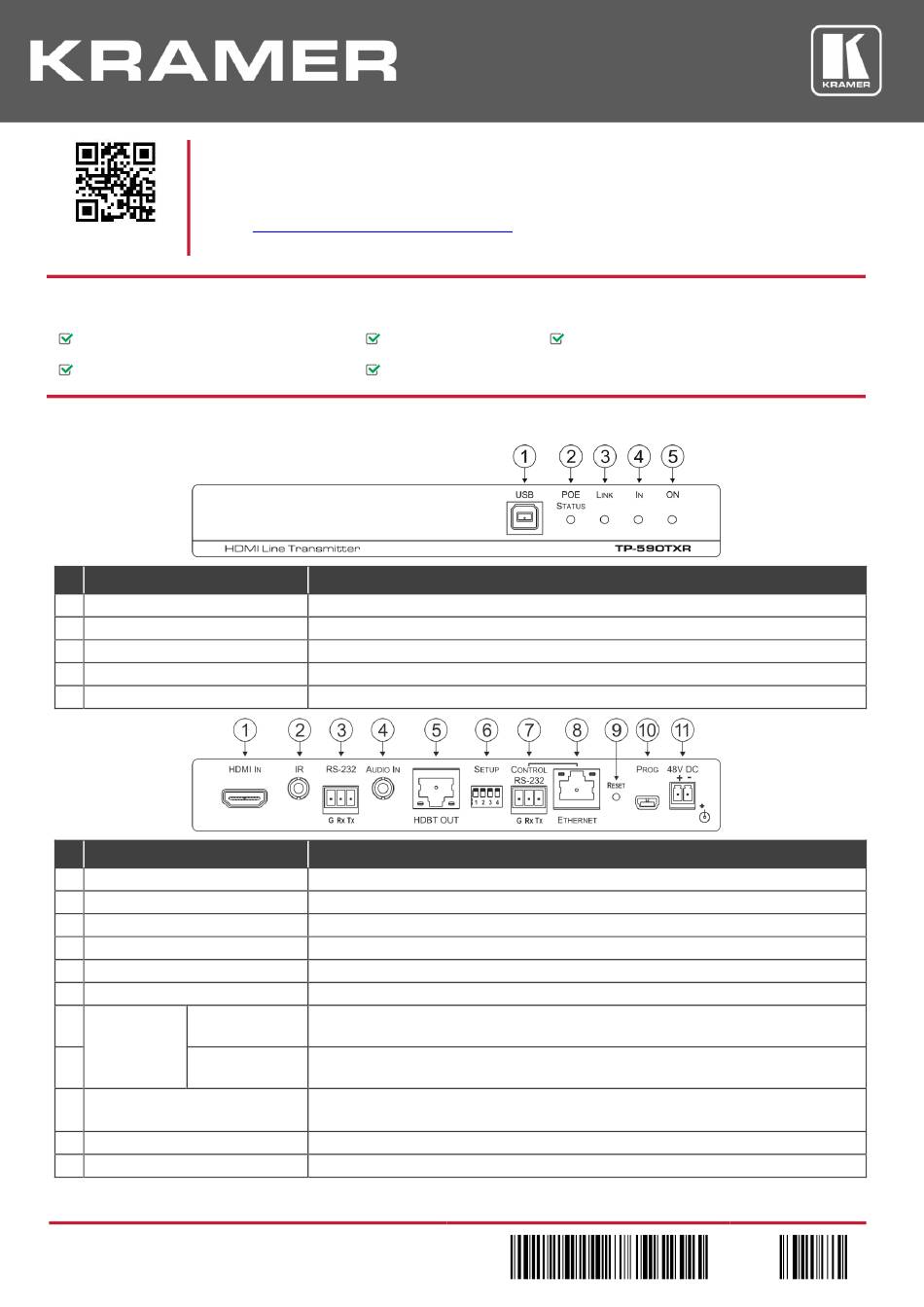

Step 2: Get to know your TP-590TXR
# Feature
1 USB Connector
2 POE STATUS LED
3 LINK LED
4 IN LED
5 ON LED
# Feature
1 HDMI IN Connector
2 IR 3.5mm Mini Jack Connector
3 RS-232 3-pin Terminal Block
4 AUDIO IN 3.5mm Mini Jack
5 HDBT OUT RJ-45 Connector
6 SETUP 4-way DIP-switch
RS-232 3-pin
7
Terminal Block
CONTROL
8 ETHERNET
RJ-45 Connector
9 RESET Switch
10 PROG Mini USB Connector
11 48V DC Power Connector
TP-590TXR Quick Start (P/N: 2900-300864QS REV 2)
www.kramerav.com/downloads/TP-590TXR
4 Rubber feet
1 Quick start guide
Function
Connect to the USB host, (for example, a laptop).
Lights green when power is supplied over the HDBT link.
Lights green when the HDBT link is valid.
Lights green when an HDMI active signal device is connected.
Lights green when the device receives power.
Function
Connect to the HDMI source.
Connect to an external infrared transmitter or sensor.
Connect to an RS-232 controller, (for example, a PC to control the projector).
Connect to the stereo, analog audio source.
Connect to the HDBT IN RJ-45 connector on the HDBT receiver.
Sets the device behavior (see Step 4).
Connect to the serial controller to control this device.
Connect to the Ethernet controller to control this device or to a LAN to transfer network traffic.
Press and hold for 5 seconds to reset the device to factory default settings.
Press and immediately release to power-cycle the device (Reset).
Connect to a PC to perform firmware upgrades.
Connect to the power supply.
to download the latest user manual and check if firmware
1 Bracket set
P/N: 2 9 0 0 - 3 0 0 8 6 4 QS Rev: 2
