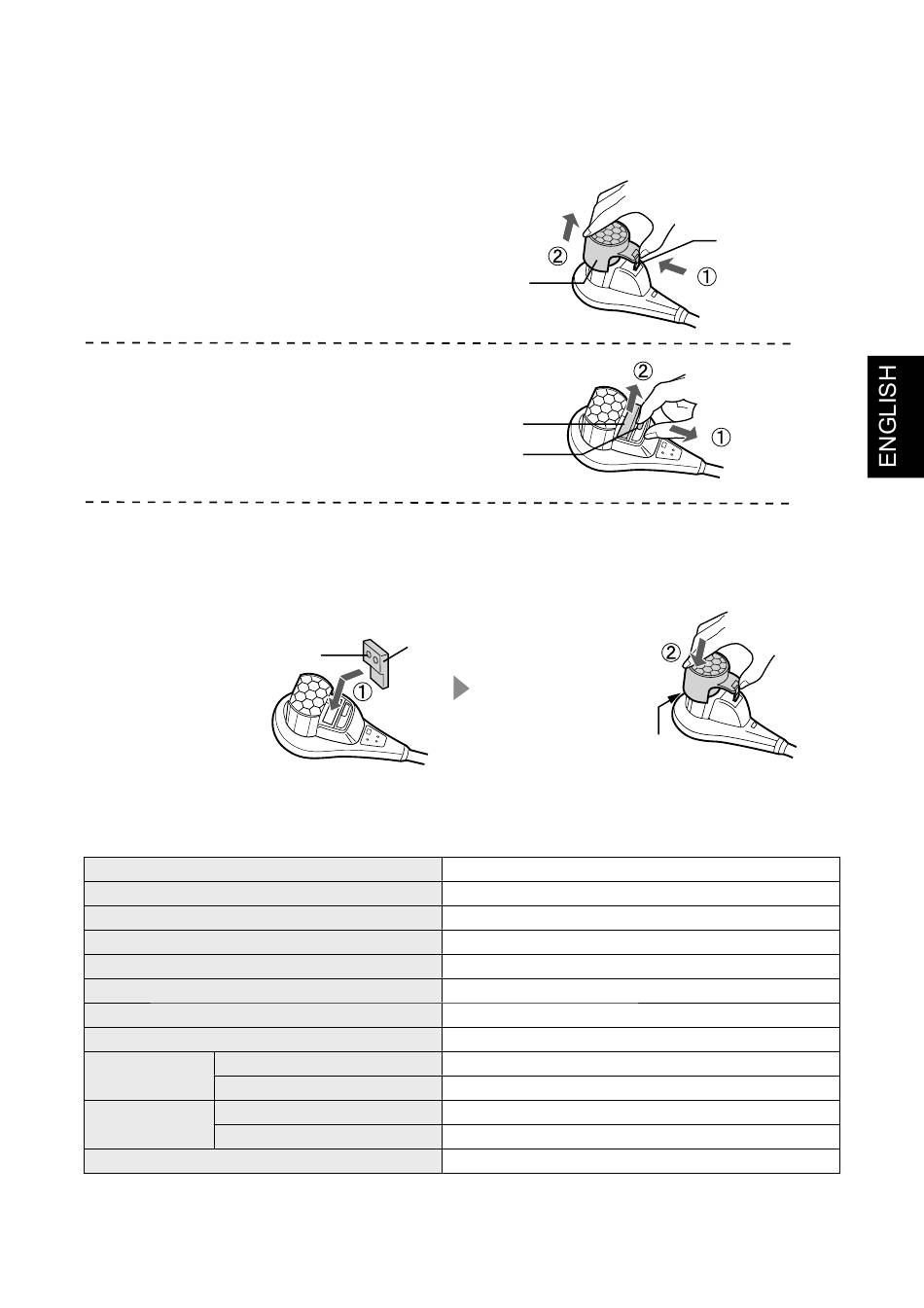

HOW TO REPLACE THE PLASMACLUSTER ION GENERATING UNIT

After replacing the unit, ensure that turn on the Operation Switch is turned on
to see that the Operation Light (blue) is lighting.
1
Remove the Filter Cap
Hold the cap hook.
Remove the fi lter cap.
2
Remove the Unit
Pull the unit fi xing tabs, and
Remove the unit.
3
Reinstall a new Unit and Filter Cap
Insert the unit with the electrode section facing inward.
Ensure that the cap hook and the tabs are in place.
Reinstall a new Unit
Electrode section

SPECIFICATIONS

Model
Power Supply
Operaqtion Mode
Ion Density (ions/cm
)
3
Total luminous fl ux (lm)
Airfl ow Volume (m
/min)
3
Power Consumption (W)
Operating noise level (dBA)
When installing the stand
Dimensions
*3
(mm)
When installing the clamp
When installing the stand
Weight (kg)
When installing the clamp
Cord length (m)
*1 It is the value measured at point in wind blowing direction from air outlet when the product is operated with
a stand opened.
*2 The dimension when the clamp is installed horizontally (not including the clamp screw).
*3 The height is the dimension when the arm is extended straight.
Unit fi xing tab
Unit
*1
*2
Filter cap
Unit
Reinstall the
Filter Cap
IG-DL1Y
220-240V, 50/60 Hz
Plasmacluster Ion Operation
70 cm : Approx. 100,000 1 m : Approx. 25,000
1.2 (Using the spotlight : 1.8)
190(W) x 565(H) x 200(D)
90(W) x 605(H) x 110(D)
Approx. 1.2
Approx. 0.7
Approx. 1.8
E-11
Cap hook
Tab
10
0.14
25
