Field wiring, signal termination and conditioning

You can use the following MCC screw terminal boards and relay racks with the PCI-CTR10 board using the
C37FF-x or C37FFS-x cable.
! — 37-conductor, shielded signal connection/screw terminal box that provides two independent 37-
SCB37
pin connections. Details on this product are available at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1166.
! — 4 x 4, 37-pin screw terminal board. Details on this product are available at
CIO-MINI37
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=255.
!
CIO-MINI37-VERT
this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=256.
!
CIO-TERMINAL
Details on this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=282.
! — PCI backplate with 37-pin connector/cable. Details on this product are available on our web site
BP-37/P
at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=103&pf_id=1520.
20
37

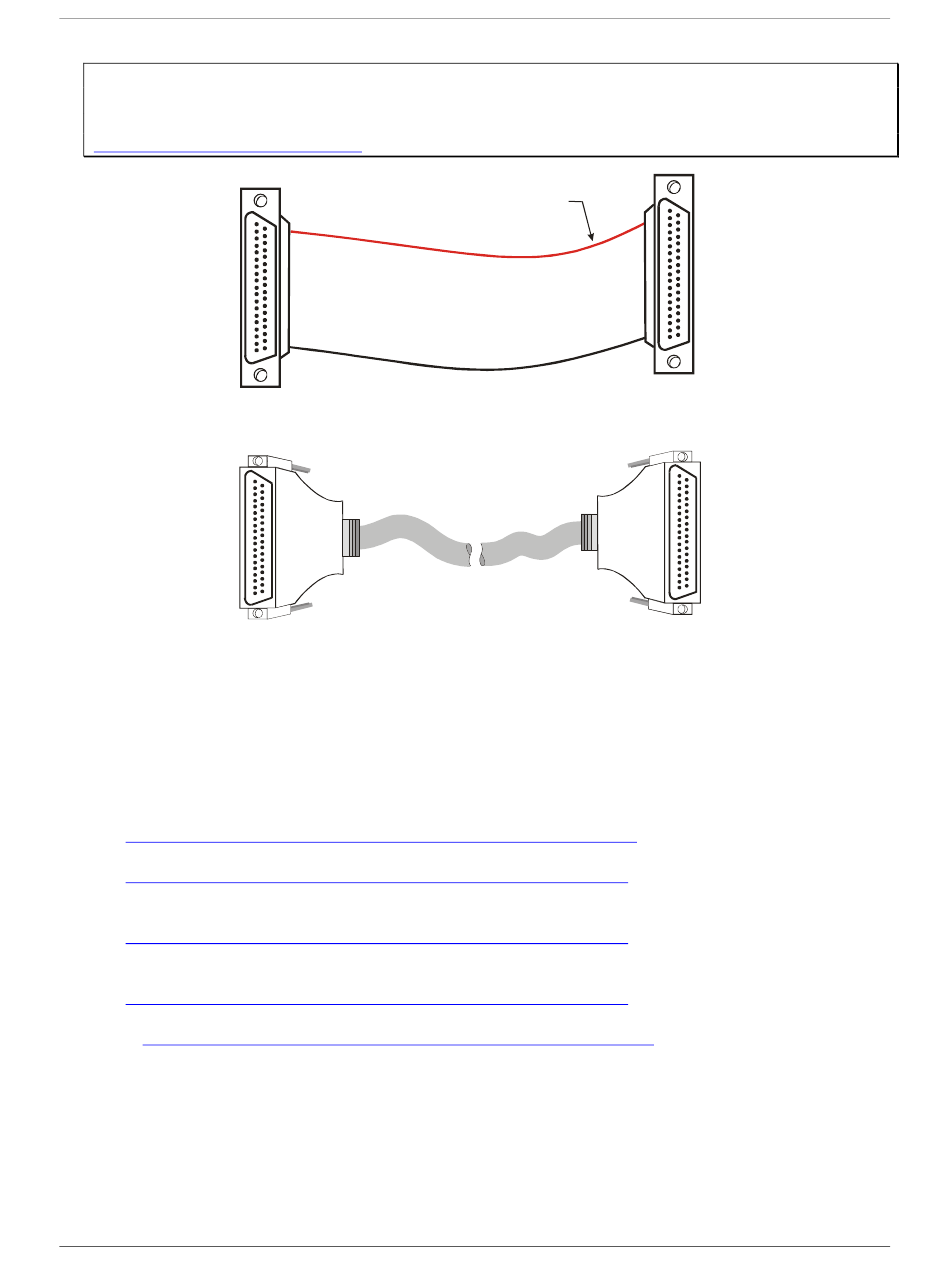

Figure 2-2. C37FF-x cable
20
37
Figure 2-3. C37FFS-x cable
— 37-pin screw terminal accessory with vertical 37-pin male D connector. Details on
— 16 X 4 universal screw terminal board with on-board prototype area and circuitry.
The red stripe
identifies pin # 1
