fri-jado
euro products

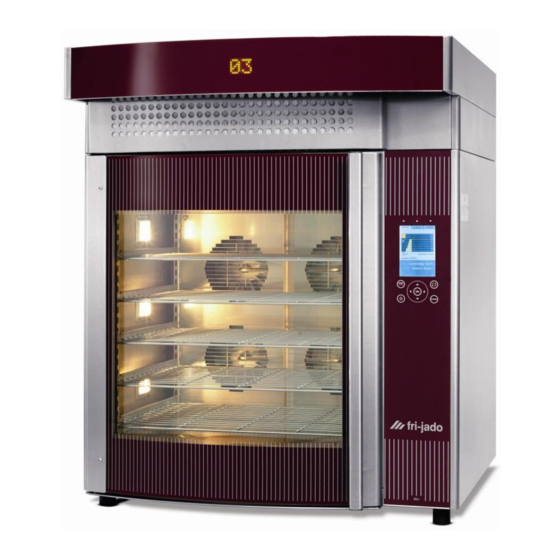

Bakestar intelligent
Technische handleiding
Service Manual
NL
1-1
GB
2-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS 3 i / p and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fri-Jado BS 3 i / p

Summary of Contents for Fri-Jado BS 3 i / p

  • Page 1 Bakestar intelligent Technische handleiding Service Manual fri-jado euro products...
  • Page 2 KEEP THIS MANUAL FOR FUTURE REFERENCE! © 1999 Fri-Jado BV, Etten-Leur, The Netherlands For the duration and the conditions of the guarantee we suggest you contact your supplier. You are also referred to our general sales and delivery conditions that are available on request.

  • Page 3: Table Of Contents

    Installation diagrams and flowcharts 2-36 14.1 Installation diagram Memory Excellent 5 2-36 14.2 Flowchart Memory Excellent 3 2-37 14.3 Flowchart Memory Excellent 5 2-38 14.4 Flowchart Memory Excellent 8 2-39 14.5 Flowchart Memory Excellent 10 2-40 fri-jado 9123627/0515 GB/ 2-1 euro products...

  • Page 4: Foreword

    This manual is intended for the adjustment, maintenance and repair of the Memory Excellent. Maintenance and repair to the Memory Excellent may only be undertaken by an authorised Fri-Jado supplier or service organisation. Failing to observe this stipulation may endanger the guarantee of your valuable oven.

  • Page 5: Installation Oven

    2 Installation of the oven 2.1 Placement of the oven The oven must be placed on a flat surface, e.g. a strong countertop or Fri-Jado euro oven base. Make sure the oven is stable and cannot slide or fall. Check the spaces at the top and bottom of the oven door. These spaces should be the same height on both the left- and right-hand sides.

  • Page 6: Technical Data

    Technical data 3 Technical data Power connection 400/230V 3N~50…60Hz Type BS 3 i / p BS 5 i / p BS 8 i / p BS 10 i / p Power 8000W 13000W 19100W 23300W Fuses needed with power connection 400V 3N~50…60Hz...

  • Page 7: Placing And Connecting The Ovens

    Placing 5 Placing and connecting the ovens 5.1 Placing and connecting the Bs3 i fri-jado 9123627/0515 GB/ 2-5 euro products...
  • Page 8 Placing 5.2 Placing and connecting the Bs5 i fri-jado GB/ 2-6 9123627/0515 euro products...
  • Page 9 Placing 5.3 Placing and connecting the Bs8 i fri-jado 9123627/0515 GB/ 2-7 euro products...
  • Page 10 Placing 5.4 Placing and connecting the Bs10 i fri-jado GB/ 2-8 9123627/0515 euro products...
  • Page 11 Placing 5.5 Placing and connecting the Bs3 + Bs3 fri-jado 9123627/0515 GB/ 2-9 euro products...
  • Page 12 Placing 5.6 Placing and connecting the Bs5 + Bs3 fri-jado GB/ 2-10 9123627/0515 euro products...
  • Page 13 Placing 5.7 Placing and connecting the Bs5 + Bs5 fri-jado 9123627/0515 GB/ 2-11 euro products...

  • Page 14: Control Panel

    Control panel 6 Control panel fri-jado GB/ 2-12 9123627/0515 euro products...

  • Page 15: Parameters

    Every data-adjustment must be followed by pressing button. 7.3 Exit the parameter menu You exit the screen by using the same combination of buttons as when you entered the menu fri-jado 9123627/0515 GB/ 2-13 euro products...

  • Page 16: Service Menu

    The counters in the screen have the following meaning: OUT: aa-bb aa= Output driver off I/O module 1 defect. bb= not used. INP: aa-bb aa= Intput driver off I/O module 1 defect. bb= not used. fri-jado GB/ 2-14 9123627/0515 euro products...
  • Page 17 Keyboard scanning driver 1 front board defect. bb= Keyboard scanning driver 2 front board defect. DSP: aa-bb aa= 7 segments display driver front board defect. bb= 7 segments display driver front board defect. fri-jado 9123627/0515 GB/ 2-15 euro products...

  • Page 18: I/O Status

    Ventilator speed 1 T2 = Ventilator speed 2 T3 = Ventilator direction T4 = Ventilator change pulse T5 = Ventilator direction change Status led ventilator board Door closed Ventilation valve open Ventilation valve closed fri-jado GB/ 2-16 9123627/0515 euro products...

  • Page 19: Read-Out Analogous Inputs

    Check in the screen READ-OUT ANALOGOUS INPUTS if the calibrated channel gives the correct read-out, equal to the value of the position of the calibration plug. Position 0000 1200 2500 This is 0.°C, 120°C en 250°C. fri-jado 9123627/0515 GB/ 2-17 euro products...
  • Page 20 0000 STP43: DOOR OPEN AUTOMATIC STP44: DOOR OPEN DLY [0.1S] The marked parameters are so called "user" parameters. The machine owner is able to change these in a window next to the clock adjustment. fri-jado GB/ 2-18 9123627/0515 euro products...

  • Page 21: System Parameters

    If the door remains closed, the oven will switch off at a temperature 30°C above the va lue of 50°C entered in the set po ints (parameter 20). fri-jado 9123627/0515 GB/ 2-19...
  • Page 22 STP24 DOOR TIME LOAD This is the length of time which pas ses whilst the product is bein g loaded, before the alarm goes off to advise that the door is open. fri-jado GB/ 2-20 9123627/0515 euro products...
  • Page 23 If this parameter is set to "1" the door will automatically open at the end of the baking time. STP44 [0.1S] This parameter defines the delay between the end of the bak ing time, and the moment the door will actually open, in case param eter 43 is set to "1". fri-jado 9123627/0515 GB/ 2-21 euro products...

  • Page 24: Internal Temperature

    Summary of access codes (Always keep the first button depressed until the 2 beep) PARAMETER MENU > SERVICE MENU > STORE FACTORY DEFAULTS > RESTORE FACTORY DEFAULTS > DEMO MODE ON > DEMO MODE OFF > ENABLE INFRA RED COMMUNICATION > fri-jado GB/ 2-22 9123627/0515 euro products...

  • Page 25: Cpu Board

    CPU board 11 CPU board fri-jado 9123627/0515 GB/ 2-23 euro products...

  • Page 26: Fuse Board

    K1 Heat out 1 V1 Steam out 2 M Valve out 3 Cooling fan out 5 From Fuse F1 out 7 From Fuse F4 Oven light From Fuse F2 Fan in extraction hood out 6 fri-jado GB/ 2-24 9123627/0515 euro products...
  • Page 27 Dip switch 3 can be set temporarily to ON in order not to be disturbed by all kinds of error messages during maintenance work. Dip switch 4 can be used to set the buzzer to quiet (OFF) whilst working. Do not forget to return this switch to ON! fri-jado 9123627/0515 GB/ 2-25 euro products...
  • Page 28 CPU board fri-jado GB/ 2-26 9123627/0515 euro products...
  • Page 29 CPU board fri-jado 9123627/0515 GB/ 2-27 euro products...

  • Page 30: Malfunctions

    50°C, it will switch off automatically. Temperature-sensor interrupted. The temperature indicated does not correspond with the actual temperature. Replace sensor. Switch off the oven with the reset- button at the bottom right-hand side. fri-jado GB/ 2-28 9123627/0515 euro products...

  • Page 31: Fault Codes

    With the buttons you can call up previous messages, and the time and dates of the faults or messages. fri-jado 9123627/0515 GB/ 2-29 euro products...

  • Page 32: Exploded Views

    Exploded view 13 Exploded views 13.1 Exploded view 01 fri-jado GB/ 2-30 9123627/0515 euro products...

  • Page 33: Exploded View

    Exploded views 13.2 Exploded view 02 fri-jado 9123627/0515 GB/ 2-31 euro products...
  • Page 34 Exploded views 13.3 Exploded view 03 fri-jado GB/ 2-32 9123627/0515 euro products...
  • Page 35 Holder, magnet 8L 3704134 Holder, magnet 10L 3704234 Holder, magnet 3L 9172081 Distance bush 9070141 Magnet 3704060 Filling profile 5L 3704125 Filling profile 8L 3704135 Filling profile 10L 3704235 Filling profile 3L 3500107 Drive motor (valve) fri-jado 9123627/0515 GB/ 2-33 euro products...
  • Page 36 Connector plug 2 pole Mate N lock 58,2 3500512 Contact female 3500037 Thermostat 100-320 °C 3500036 Distance sink tube 3701015 Doorlock 61,1 9174163 Distance washer 3500188 RC network 3500069 Power relay 3500335 Transformer 3701022 Transformer 100 VA fri-jado GB/ 2-34 9123627/0515 euro products...
  • Page 37 Heating element, 1000 W 3500073 Heating element, 2000 W 3500055 Tube Drain set complete 107,1 3500054 Drain tube 107,2 3500052 Knee joint 35mm 107,3 3500608 Tube silicon 25x33 107,4 3500053 Reducer 35-28mm 3504271 Ringspanner 10 fri-jado 9123627/0515 GB/ 2-35 euro products...
  • Page 38 14.2 Electric diagram Bs3 i fri-jado GB/ 2-36 9123627/0515 euro products...
  • Page 39 Wiring diagram Bs3i fri-jado 9123627/0515 GB/ 2-37 euro products...
  • Page 40 14.3 Electric diagram Bs5 i fri-jado GB/ 2-38 9123627/0515 euro products...
  • Page 41 Wiring diagram Bs5i fri-jado 9123627/0515 GB/ 2-39 euro products...
  • Page 42 14.4 Electric diagram BS8 i fri-jado GB/ 2-40 9123627/0515 euro products...
  • Page 43 Wiring diagram Bs8i fri-jado 9123627/0515 GB/ 2-41 euro products...
  • Page 44 14.5 Electric diagram Bs10 i fri-jado GB/ 2-42 9123627/0515 euro products...
  • Page 45 Wiring diagram Bs10i fri-jado 9123627/0515 GB/ 2-43 euro products...
  • Page 46 Explanation CPU board fri-jado GB/ 2-44 9123627/0515 euro products...
  • Page 47 Explanation Input & Output board fri-jado 9123627/0515 GB/ 2-45 euro products...
  • Page 48 Explanation Fan board fri-jado GB/ 2-46 9123627/0515 euro products...
  • Page 49 Ihr Euro-Oven Fachshandler Votre revendeur Euro-Oven Su suminitrador de Euro-Oven fri-jado Fri-Jado BV - Oude Kerkstraat 2 - 4878 AA Etten-Leur - The Netherlands - T el. +31 76 50 85 400 - Fax. + 31 76 50 85 444 euro products...

This manual is also suitable for:

Bs 5 i / pBs 8 i / pBs 10 i / p
