Instrument Cooling; Fuse Holder And Power Cord Connector - Tektronix 2213A Instruction Manual

Preparation For Use— 2213A Operators
A
CAUTION
f o r c o n t i n u e d f ir e p r o t e c t io n
REPLACE ONLY W ITH SPECIFIED
TYPE ANO RATEO FUSE DISCONNECT
POWER INPUT BEFORE REPLACING FUSE
LINE VOLTAGE RANGE FUSE 250V
9 0-250V A C IA SLOW
POWER
CORD

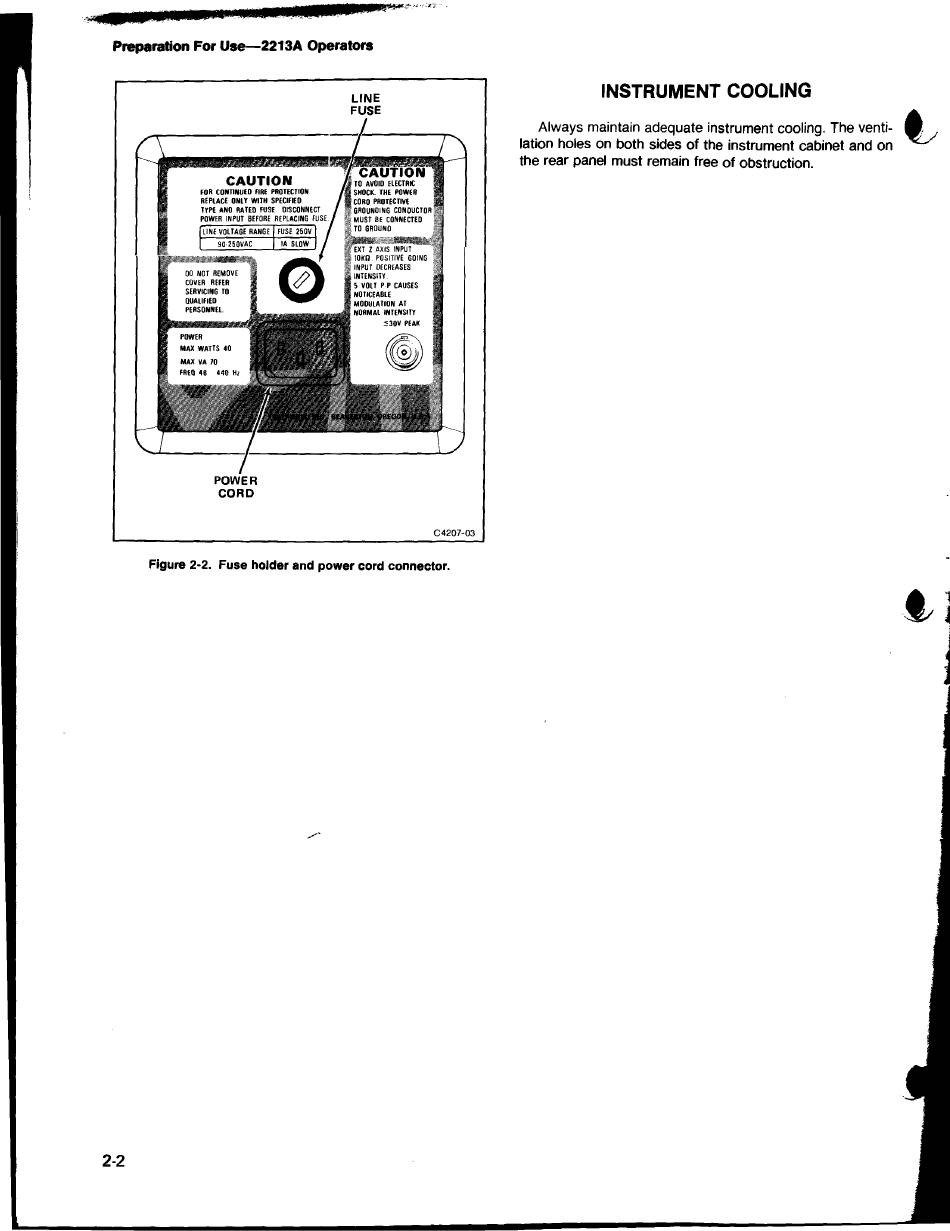

Figure 2-2. Fuse holder and power cord connector.
LINE
FUSE
lation holes on both sides of the instrument cabinet and on
the rear panel must remain free of obstruction.
CAUTION
TO AVOID ELECTRIC
SHOCK. THE POWER
CORO PROTECTIVE
GROUNDING CONDUCTOR "
MUST BE CONNECTED
TO GROUND
C4207-03

INSTRUMENT COOLING

Always maintain adequate instrument cooling. The venti­
