General Information— 2213A Operators
Characteristics
Sweep Rate
Accuracy
+ 15°C to +35°C
0°C to +50°C
POSITION Control Range
Sweep Linearity
Variable Control Range
Delay Time
Delay Positions
MULTIPLIER
Jitter
Deflection Factory
Accuracy
X-Axis
Y-Axis
Bandwidth ( - 3 d B )
X-Axis
Y-Axis
Phase Difference Between X- and
Y-Axis Amplifiers
1-4

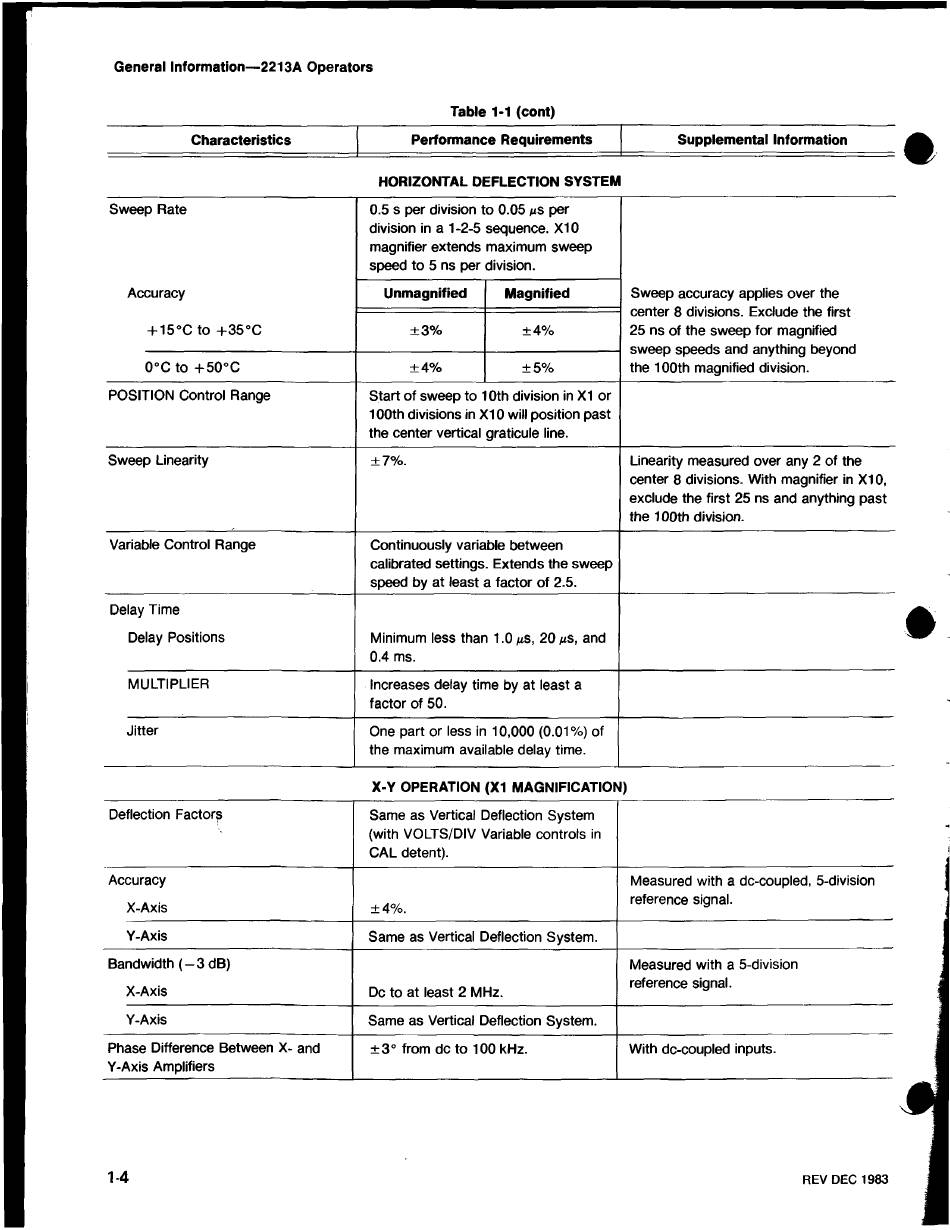

Table 1-1 (cont)
Performance Requirements
HORIZONTAL DEFLECTION SYSTEM
0.5 s per division to 0.05 ns per
division in a 1-2-5 sequence. X I0
magnifier extends maximum sweep
speed to 5 ns per division.
Unmagnified Magnified
±4%
±3%
±4%
±5%
Start of sweep to 10th division in XI or
100th divisions in X I0 will position past
the center vertical graticule line.
±7%.
Continuously variable between
calibrated settings. Extends the sweep
speed by at least a factor of 2.5.
Minimum less than 1.0 ns, 20 vs, and
0.4 ms.
Increases delay time by at least a
factor of 50.
One part or less in 10,000 (0.01%) of
the maximum available delay time.
X-Y OPERATION (XI MAGNIFICATION)
Same as Vertical Deflection System
(with VOLTS/DIV Variable controls in
CAL detent).
±4%.
Same as Vertical Deflection System.
Dc to at least 2 MHz.
Same as Vertical Deflection System.
± 3 ° from dc to 100 kHz.
Supplemental Information
Sweep accuracy applies over the
center 8 divisions. Exclude the first
25 ns of the sweep for magnified
sweep speeds and anything beyond
the 100th magnified division.
Linearity measured over any 2 of the
center 8 divisions. With magnifier in X I0,
exclude the first 25 ns and anything past
the 100th division.
Measured with a dc-coupled, 5-division
reference signal.
Measured with a 5-division
reference signal.
With dc-coupled inputs.
REV DEC 1983
