speeds from 0.5 ms per division to 0.5 s per
division.
BW LIMIT— When pressed in, this button switch
limits the bandwidth of the vertical amplifier and the
Trigger system to approximately 10 MHz. Button
must be pressed a second time to release it and
regain full 60 MHz bandwidth operation. Provides a
method for reducing interference from high-fre­
quency signals when
signals.
2
CH INVERT Switch
play when button is pressed in. Button must be
pressed in a second time to release it and regain a
noninverted display.
M 5J GND Connector —Provides direct connection to the
instrument chassis ground.
M 6 ) SERIAL and Mod Slots
V- " / printed with the instrument's serial number. The Mod
slot contains the option number that is installed in the
instrument.

HORIZONTAL

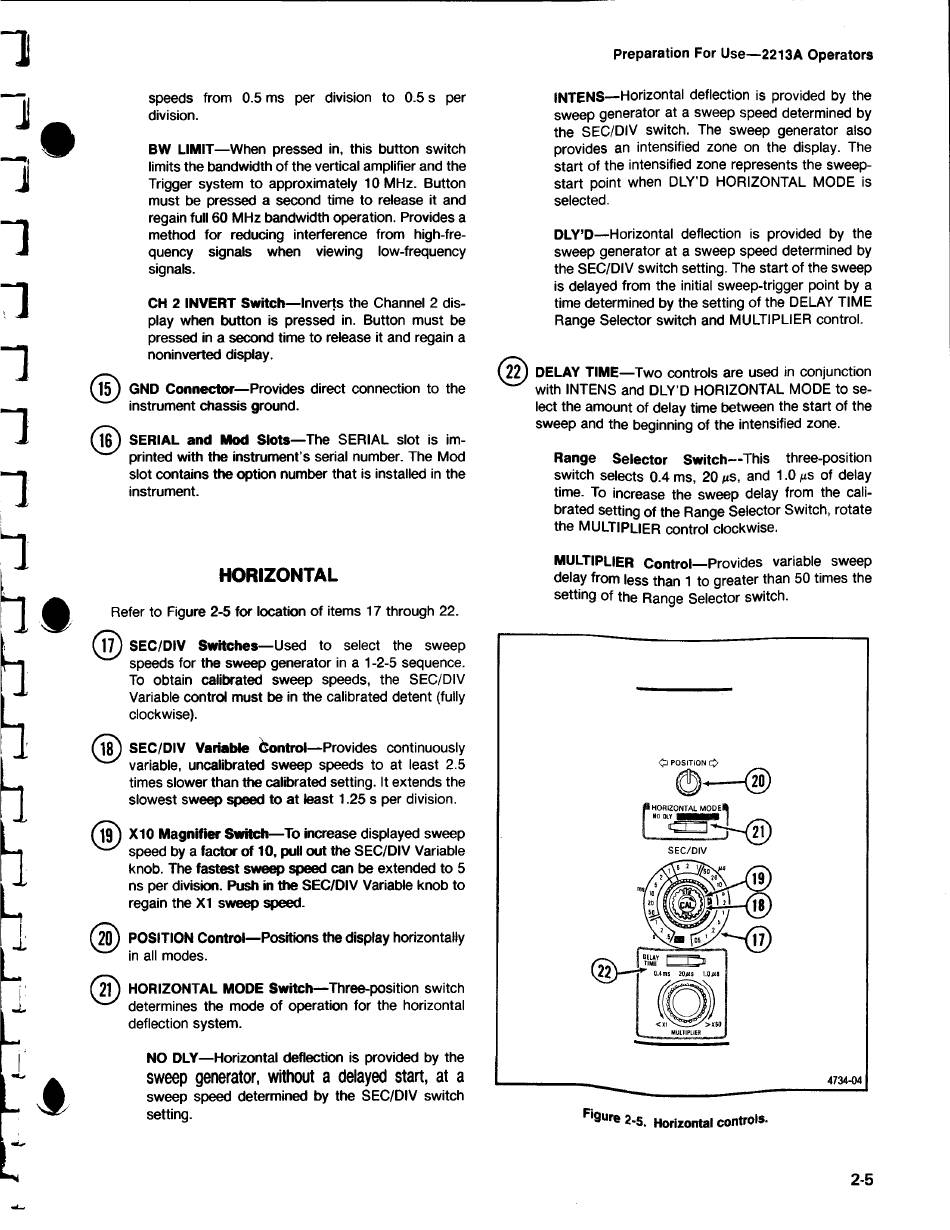

Refer to Figure 2-5 for location of items 17 through 22.
( ] ] J
— Used to select the sweep
SEC/DIV Switches
speeds for the sweep generator in a 1 -2-5 sequence.
To obtain calibrated sweep speeds, the SEC/DIV
Variable control must be in the calibrated detent (fully
clockwise).
M 8J SEC/DIV Variable Control
variable, uncalibrated sweep speeds to at least 2.5
times slower than the calibrated setting. It extends the
slowest sweep speed to at least 1.25 s per division.
( j t j ) X10 — To increase displayed sweep
M agnifier Switch
speed by a factor of 10, pull out the SEC/DIV Variable
knob. The fastest sweep speed can be extended to 5
ns per division. Push in the SEC/DIV Variable knob to
regain the XI sweep speed.
POSITION — Positions the display horizontally
(2 0 ) Control
in all modes.
21
( ) HORIZONTAL MODE Switch—
' ^ determines the mode of operation for the horizontal
deflection system.
NO DLY— Horizontal deflection is provided by the
sweep generator, without a delayed start, at a
sweep speed determined by the SEC/DIV switch
setting.
viewing low-frequency
— Inverts the Channel 2 dis­
— The SERIAL slot is im-
— Provides continuously
Three-position switch
Preparation For Use— 2213A Operators
INTENS— Horizontal deflection is provided by the
sweep generator at a sweep speed determined by
the SEC/DIV switch. The sweep generator also
provides an intensified zone on the display. The
start of the intensified zone represents the sweep-
start point when DLY'D HORIZONTAL MODE is
selected.
DLY'D— Horizontal deflection is provided by the
sweep generator at a sweep speed determined by
the SEC/DIV switch setting. The start of the sweep
is delayed from the initial sweep-trigger point by a
time determined by the setting of the DELAY TIME
Range Selector switch and MULTIPLIER control.
( 2 2 )
DELAY TIME— Two controls are used in conjunction
with INTENS and DLY'D HORIZONTAL MODE to se­
lect the amount of delay time between the start of the
sweep and the beginning of the intensified zone.
Range Selector
switch selects 0.4 ms, 20 ns, and 1.0 ^s of delay
time. To increase the sweep delay from the cali­
brated setting of the Range Selector Switch, rotate
the MULTIPLIER control clockwise.
MULTIPLIER Control— Provides variable sweep
delay from less than 1 to greater than 50 times the
setting of the Range Selector switch.
Switch—This three-position
2-5
