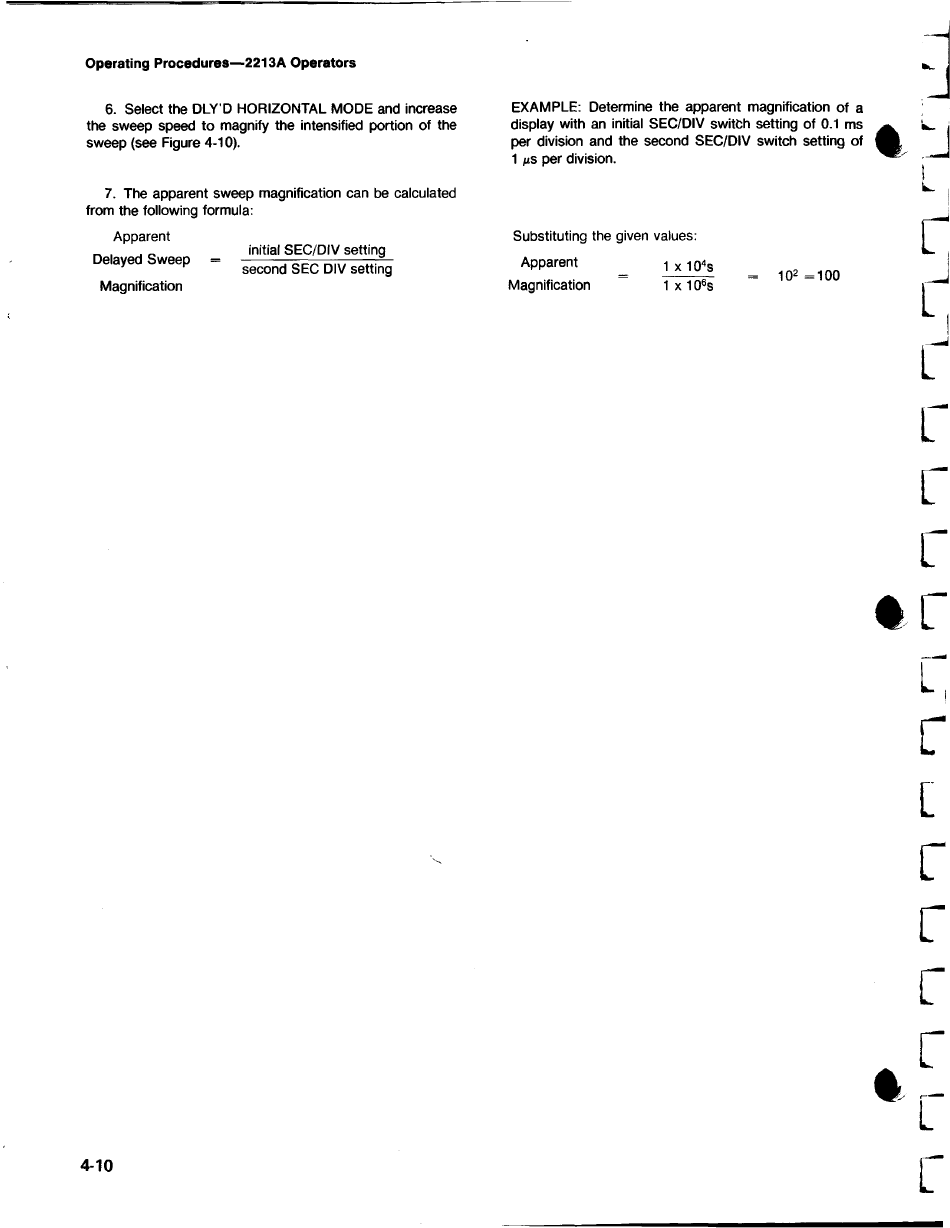

Operating Procedures— 2213A Operators
6. Select the DLY'D HORIZONTAL MODE and increase
the sweep speed to magnify the intensified portion of the
sweep (see Figure 4-10).
7. The apparent sweep magnification can be calculated
from the following formula:
Apparent
initial SEC/DIV setting
Delayed Sweep
second SEC DIV setting
Magnification
4-10
EXAMPLE: Determine the apparent magnification of a
display with an initial SEC/DIV switch setting of 0.1 ms
per division and the second SEC/DIV switch setting of
1 ixs per division.
Substituting the given values:
Apparent l x 1 0 4s
Magnification 1 x 106s
102 =100
