1.3. System configuration

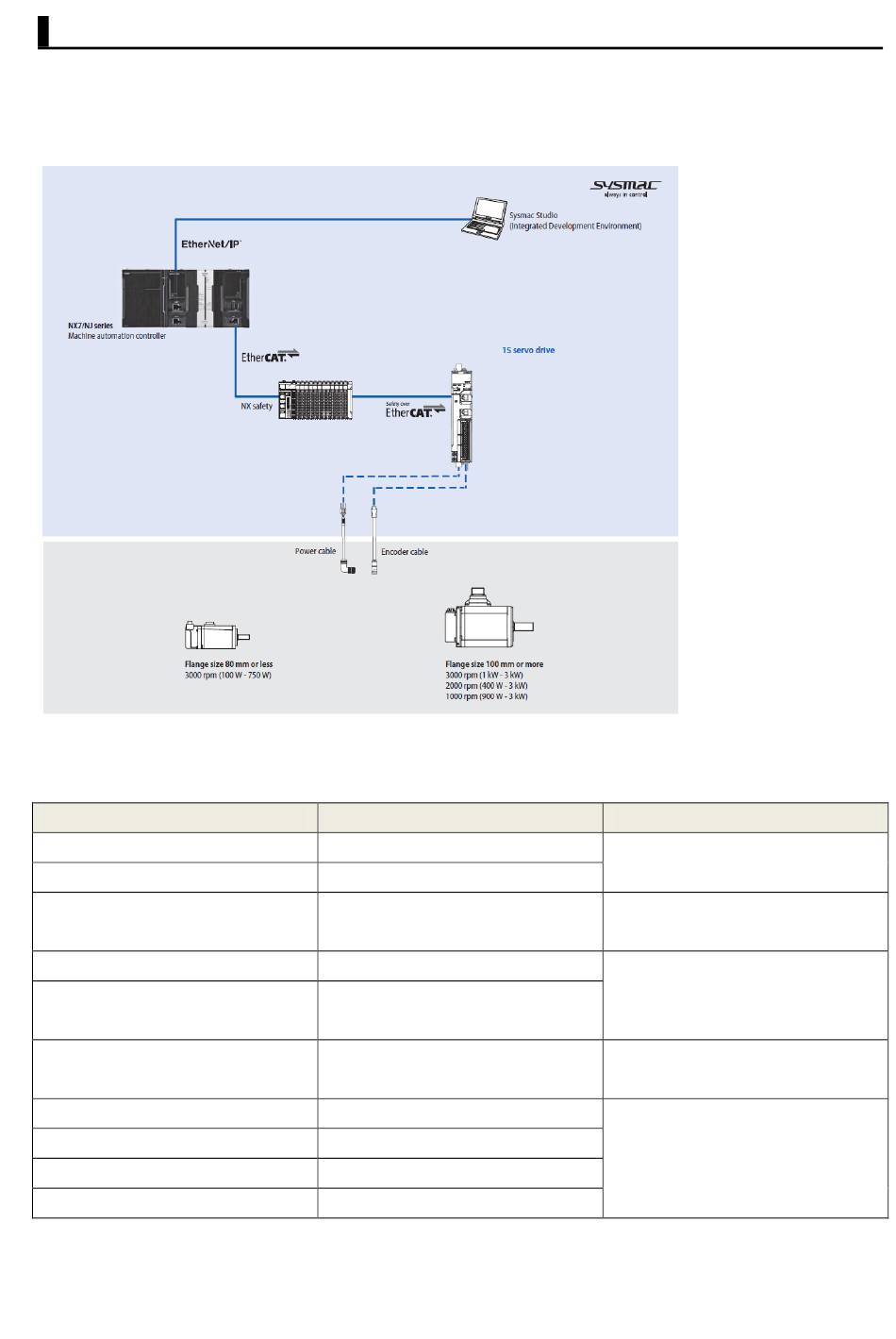

The following figure shows the system configuration and devices that are used in this Guide.
The system configuration is shown in the following figure.
•
Configuration devices
The models of the devices that are described in this Guide are given in the following table. When selecting
devices for an actual application, refer to the device manuals.
Device name
NJ-series CPU Unit
NJ-series Power Supply
NX-series EtherCAT Coupler
NX-series Safety control unit
NX I/0 Series
Ethernet/EtherCAT
communications cables
AC Servo Drives
AC Servo Motors
Power cables
Encoder Cables
Model
NJ501-[]
NJ-P[]3001
NX-ECC[]
NX-SL3300
NX-SID[]
NX-SOD[]
XS5W-T[]
R88D-1SN[]
R88M-1[]
R88A-CA[]
R88A-CR[]
Manual name
NJ-series CPU Unit Hardware
User's Manual (Cat. No. W500)
NX-series EtherCAT Coupler Unit
User's Manual (Cat. No. W519)
NX safety CPU unit Hardware
User's Manual (Cat. No. Z930)
-
1S-series AC Servomotors and
Servo Drives User's Manual (with
Built-in
Communications) (Cat. No. I586)
EtherCAT
