This guide serves the following
ComNet Model Numbers:
CNGE11FX3TX8MS
CNGE11FX3TX8MSPOE
CNGE11FX3TX8MSPOEHO
INSTALLATION AND OPERATION MANUAL
CNGE11FX3TX8MS[POE][HO]
Environmentally Hardened Managed Ethernet Switch
3 SFP + 8 Electrical Ports with Optional 30 or 60 Watt PoE

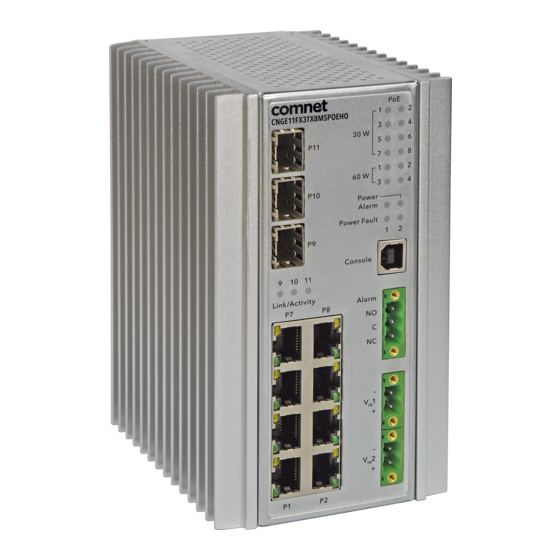

The ComNet CNGE11FX3TX8MS[POE][HO] has three 100/1000Base-FX SFP ports
and eight 10/100/1000Base-TX ports. Two of the SFP ports support 2.5 Gbps
SFPs for high speed communication in bandwidth intensive applications. All SFP
ports utilize ComNet SFP modules for fiber and connector type and distance. The
IEEE802.3-compliant unit offers multiple Ethernet redundancy protocols (MSTP/RSTP/
STP/ERPS (G.8032)) which protect your applications from network interruptions or
temporary malfunctions by redirecting transmission within the network. The switch
provides advanced IP-based management that can limit the maximum bandwidth
for each connected IP device, allowing the user to adjust usage. Two models are
available which supply Power over Ethernet (PoE). The CNGE11FX3TX8MSPOE
model provides eight electrical ports supporting up to thirty watts of power. On the
CNGE11FX3TX8MSPOEHO model, four of the eight PoE ports can support up to sixty
watts of PoE power. All PoE ports are IEEE802.3at compliant.
