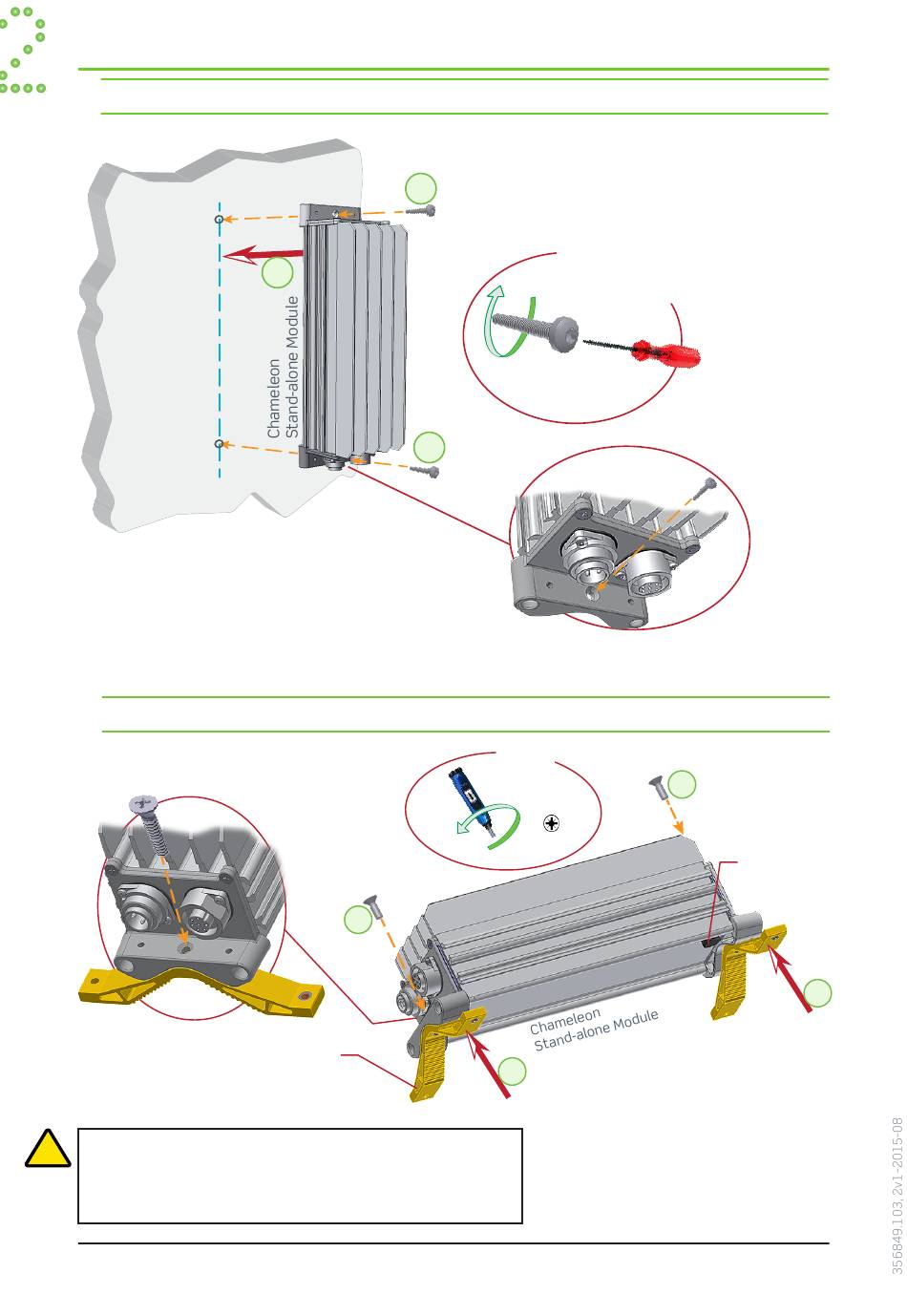

Mechanical Installation
Option 1: Surface Mounting ~ Fasten the Chameleon Module
Option 2: Pole Mounting ~ Fasten Half Pole Clamps to the Module
!
WARNING:
Do not open, close or change the Pressure Equalization Vent, which
Device
provides pressure equalization and condensation reduction, and re-
Hazard
sists liquid immersion, dust and dirt while allowing the product to
breath during changing environmental conditions
6
1
4
Half Pole Clamp
Quick Installation Guide • Chameleon 48V, 650W, HE, IP65, Stand-alone Module
2
(2x)
Suitable acid proof (A4)
Screw or Bolt
CW
3
M5 (2x)
T-PZ2
T1
CW
3
•••
2
Pressure
Equalization Vent
1
