Select the cable connector type that corresponds to your cable outer diameter,
±0.2 mm
Cable Type
Function Outer Diameter
Input Cable 12—17 mm
7.0—13 mm
Input Cable 6.0—9.5 mm
Input Cable 8—10 mm
Input Cable 10—12 mm
Input Cable 12—14 mm
Output Cable 12—17 mm
7.0—13 mm
Output Cable 6—8 mm
Output Cable 8—10 mm
Output Cable 10—12 mm
Output Cable 12—14 mm
Circular
Cross Section
Quick Installation Guide • Chameleon 48V, 650W, HE, IP65, Stand-alone Module

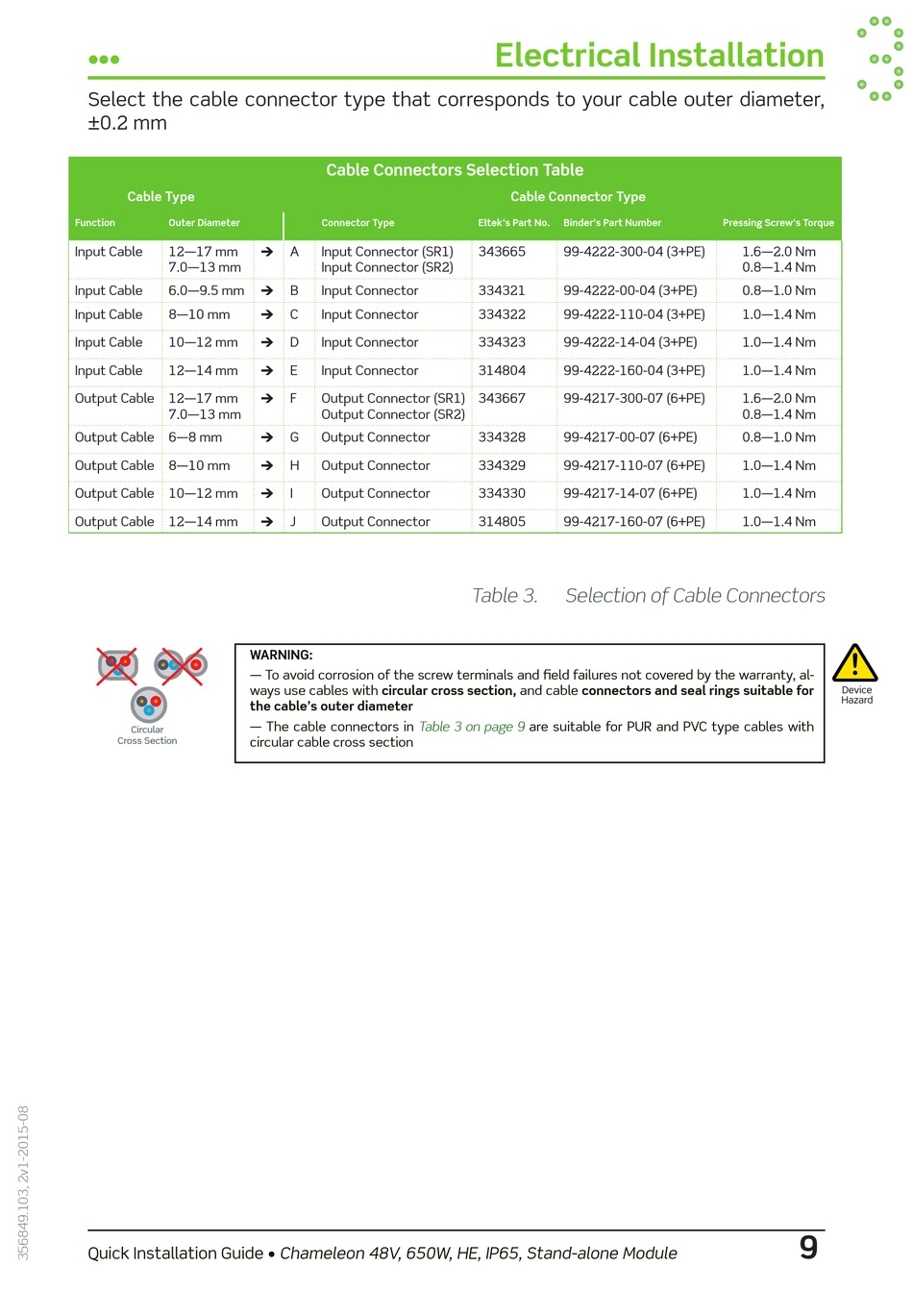

Cable Connectors Selection Table
Connector Type
A Input Connector (SR1)

Input Connector (SR2)
B Input Connector

C Input Connector

D Input Connector

E Input Connector

F Output Connector (SR1)

Output Connector (SR2)
G Output Connector

H Output Connector

I Output Connector

J Output Connector

WARNING:
— To avoid corrosion of the screw terminals and field failures not covered by the warranty, al-
ways use cables with circular cross section, and cable connectors and seal rings suitable for
the cable's outer diameter
— The cable connectors in Table 3 on page 9
circular cable cross section
Electrical Installation
Cable Connector Type
Eltek's Part No. Binder's Part Number
343665 99-4222-300-04 (3+PE)
334321 99-4222-00-04 (3+PE)
334322 99-4222-110-04 (3+PE)
334323 99-4222-14-04 (3+PE)
314804 99-4222-160-04 (3+PE)
343667 99-4217-300-07 (6+PE)
334328 99-4217-00-07 (6+PE)
334329 99-4217-110-07 (6+PE)
334330 99-4217-14-07 (6+PE)
314805 99-4217-160-07 (6+PE)
Table 3. Selection of Cable Connectors
are suitable for PUR and PVC type cables with
Pressing Screw's Torque
1.6 —2.0 Nm
0.8 —1.4 Nm
0.8 —1.0 Nm
1.0 —1.4 Nm
1.0 —1.4 Nm
1.0 —1.4 Nm
1.6 —2.0 Nm
0.8 —1.4 Nm
0.8 —1.0 Nm
1.0 —1.4 Nm
1.0 —1.4 Nm
1.0 —1.4 Nm
!
Device
Hazard
