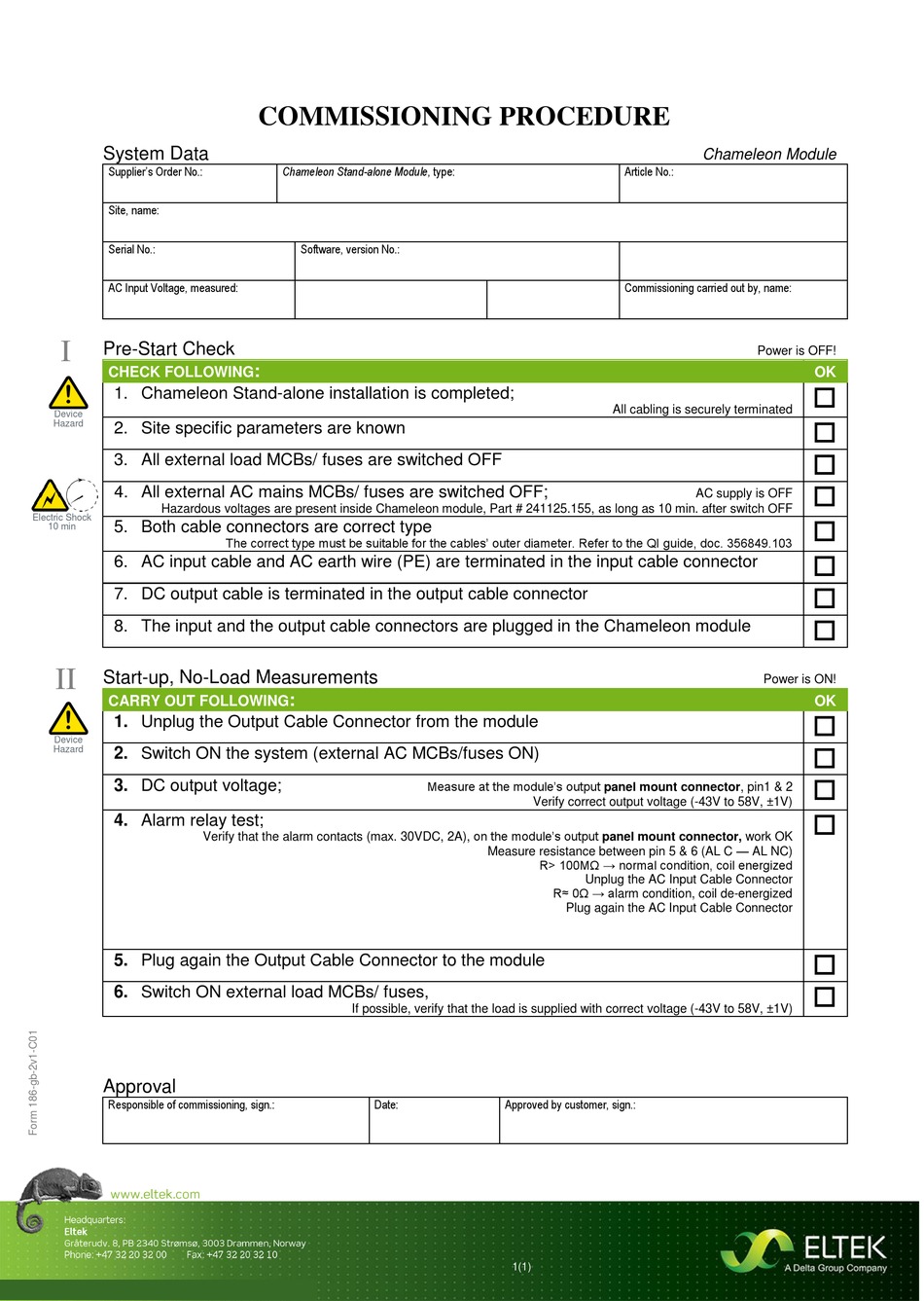

Commissioning Procedure - Eltek Chameleon Stand-alone Quick Installation Manual

System Data
Supplier's Order No.:
Site, name:
Serial No.:
AC Input Voltage, measured:
I
Pre-Start Check
CHECK FOLLOWING
!
1. Chameleon Stand-alone installation is completed;
Device
Hazard
2. Site specific parameters are known
3. All external load MCBs/ fuses are switched OFF
4. All external AC mains MCBs/ fuses are switched OFF;
Hazardous voltages are present inside Chameleon module, Part # 241125.155, as long as 10 min. after switch OFF
Electric Shock
5. Both cable connectors are correct type
10 min
6. AC input cable and AC earth wire (PE) are terminated in the input cable connector
7. DC output cable is terminated in the output cable connector
8. The input and the output cable connectors are plugged in the Chameleon module
II
Start-up, No-Load Measurements
CARRY OUT FOLLOWING
!
1. Unplug the Output Cable Connector from the module
Device
Hazard
2. Switch ON the system (external AC MCBs/fuses ON)
3. DC output voltage;
4. Alarm relay test;
Verify that the alarm contacts (max. 30VDC, 2A), on the module's output panel mount connector, work OK
5. Plug again the Output Cable Connector to the module
6. Switch ON external load MCBs/ fuses,
Approval
Responsible of commissioning, sign.:

COMMISSIONING PROCEDURE

Chameleon Stand-alone Module, type:
Software, version No.:
:
The correct type must be suitable for the cables' outer diameter. Refer to the QI guide, doc. 356849.103
:
If possible, verify that the load is supplied with correct voltage (-43V to 58V, ±1V)
Date:
Measure at the module's output panel mount connector, pin1 & 2
Verify correct output voltage (-43V to 58V, ±1V)
Measure resistance between pin 5 & 6 (AL C — AL NC)
R> 100MΩ → normal condition, coil energized
Unplug the AC Input Cable Connector
R≈ 0Ω → alarm condition, coil de-energized
Plug again the AC Input Cable Connector
Approved by customer, sign.:
1(1)
Chameleon Module
Article No.:
Commissioning carried out by, name:
Power is OFF!
All cabling is securely terminated
AC supply is OFF
Power is ON!
OK








OK






