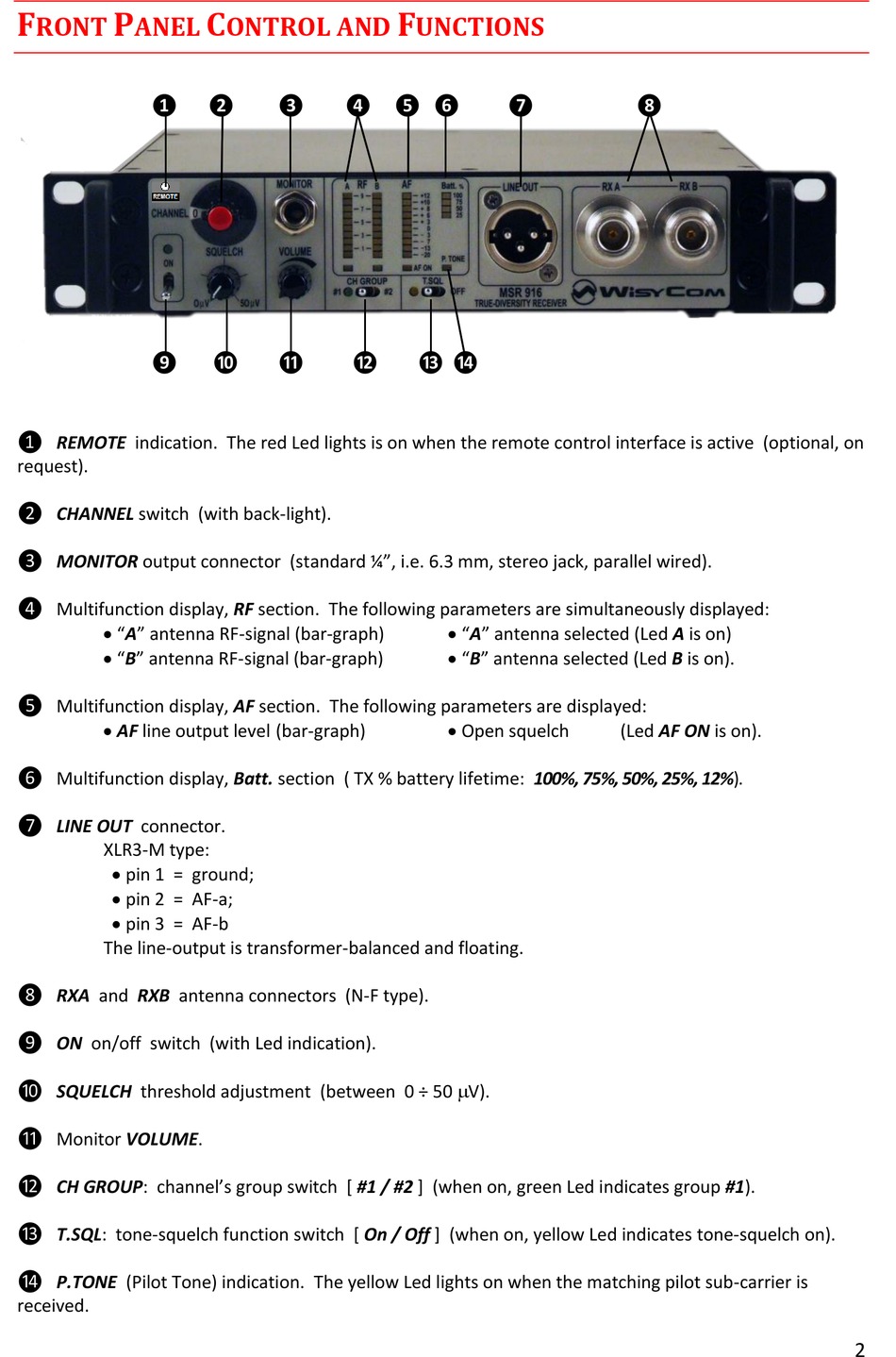

F P
RONT ANEL
❶
❾
❶ REMOTE indication. The red Led lights is on when the remote control interface is active (optional, on
request).
❷ CHANNEL switch (with back-light).
❸ MONITOR output connector (standard ¼", i.e. 6.3 mm, stereo jack, parallel wired).
❹ Multifunction display, RF section. The following parameters are simultaneously displayed:
 "A" antenna RF-signal (bar-graph)
 "B" antenna RF-signal (bar-graph)
❺ Multifunction display, AF section. The following parameters are displayed:
 AF line output level (bar-graph)
❻ Multifunction display, Batt. section ( TX % battery lifetime: 100%, 75%, 50%, 25%, 12%).
❼ LINE OUT connector.
XLR3-M type:
 pin 1 = ground;
 pin 2 = AF-a;
 pin 3 = AF-b
The line-output is transformer-balanced and floating.
❽ RXA and RXB antenna connectors (N-F type).
❾ ON on/off switch (with Led indication).
❿ SQUELCH threshold adjustment (between 0 ÷ 50 V).
⓫ Monitor VOLUME.
⓬ CH GROUP: channel's group switch [ #1 / #2 ] (when on, green Led indicates group #1).
⓭ T.SQL: tone-squelch function switch [ On / Off ] (when on, yellow Led indicates tone-squelch on).
⓮ P.TONE (Pilot Tone) indication. The yellow Led lights on when the matching pilot sub-carrier is
received.
C
ONTROL AND
❷ ❸ ❹
❿ ⓫ ⓬
F
UNCTIONS
❺ ❻ ❼
⓭ ⓮
 "A" antenna selected (Led A is on)
 "B" antenna selected (Led B is on).
 Open squelch
❽
(Led AF ON is on).
