Bradley Express SS Series Installation Instructions Manual

Lavatory system
Hide thumbs Also See for Express SS Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
IMPORTANT
Read this entire installation manual
to ensure proper installation, then
file the manual with the owner or
maintenance department.
Flush all the water supply lines
before making connections.
Wall anchors used must have a
minimum pull-out rating of 1,000
lbs.
Product warranties may be found
under "Product Information" on
our web site at
www.bradleycorp.com.
215-1175 Rev. H; EN 08-805
© 2008 Bradley Corporation
Page 1 of 17
4/24/08

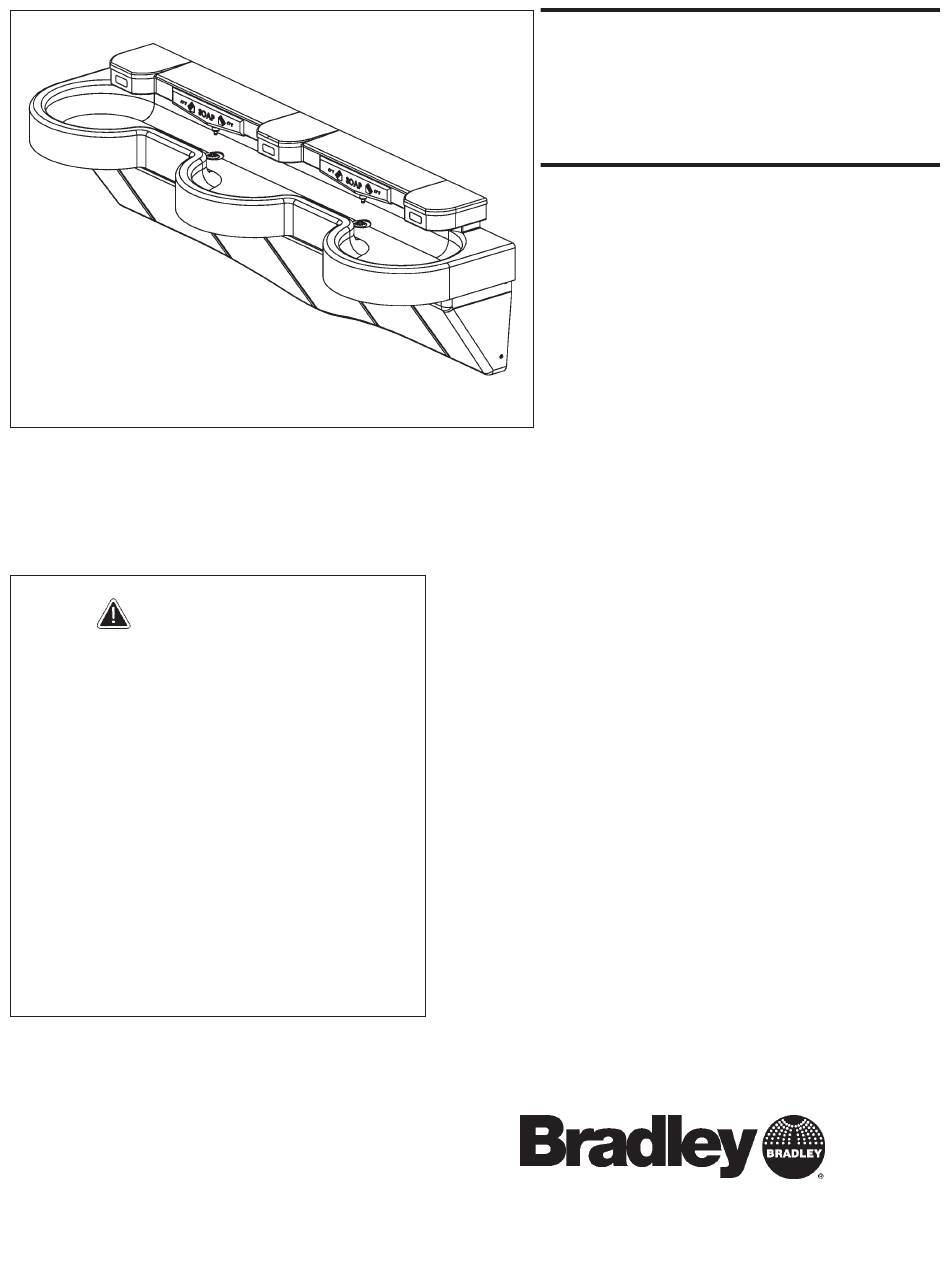

Installation
Instructions
OBSOLETE
SS-3/AZ/WH97TAS

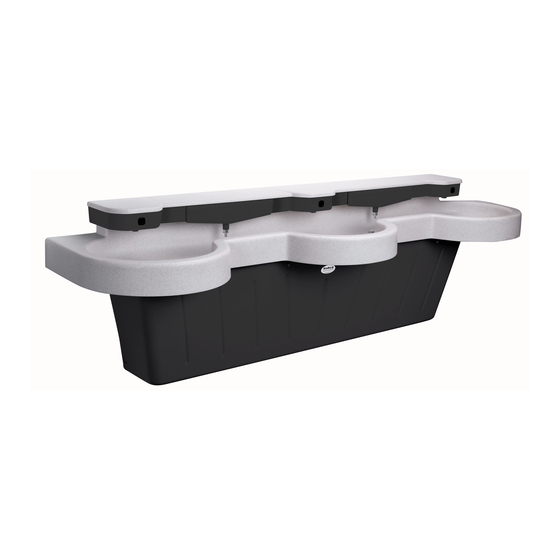

Express® Lavatory
System SS-Series
Complies with Texas Accessibility
Standards (TAS) for Juvenile Height
applications.

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . .2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Installation Instructions . . . . . . . . . . . . . . . . 5-10
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . .10
Cleaning and Maintenance . . . . . . . . . . . . . . . .11
Soap Dispenser Maintenance . . . . . . . . . . . .2-13
Assembly of Components . . . . . . . . . . . . . . .3-14
Check Valve Troublshooting . . . . . . . . . . . . . .15
Solenoid Valve Troubleshooting . . . . . . . . . .5-16
Vernatherm™ Mixing Valve . . . . . . . . . . . . . . .17
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY
http://www.bradleycorp.com
FAX 262-251-5817

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Express SS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley Express SS Series

Summary of Contents for Bradley Express SS Series

  • Page 1: Table Of Contents

    Product warranties may be found under "Product Information" on our web site at www.bradleycorp.com. P.O. Box 309, Menomonee Falls, WI 53052-0309 215-1175 Rev. H; EN 08-805 TEL. 1-800-BRADLEY FAX 262-251-5817 © 2008 Bradley Corporation http://www.bradleycorp.com Page 1 of 17 4/24/08...

  • Page 2: Pre-Installation Information

    • (10) 3/8" wall anchors, bolts and washers to mount frame and bowl to wall (minimum pull-out rating of 1,000 lbs.) • 1/2" NPT tempered supply piping • 1-1/2" NPT drain piping • 110 volt electrical outlet for 110/24 VAC plug-in transformer (supplied) 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805...
  • Page 3 Express® Lavatory System SS-Series Installation - Obsolete SS-3/AZ/WH97TAS SS-3/AZ/WH97TAS Express® Lavatory System Dimensions Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08...

  • Page 4: Dimensions

    Express® Lavatory System SS-Series SS-3/AZ/WH97TAS Installation - Obsolete Dimensions continued . . . Juvenile Height SS-3/AZ/WH97TAS Grades Pre-K thru 5 or 6 Juvenile Height SS-3/AZ/WH97TAS Grades 6 thru 8 or 9 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805...

  • Page 5: Installation Instructions

    NOTE: The anchors will be used to mount the Express® bowl and frame to the wall. Step 1: Rough-in continues... Juvenile Height SS-3/AZ/WH97TAS Express® Lavatory System (grades Pre-K thru 5 or 6) Figure 1 Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08...
  • Page 6 Express® Lavatory System SS-Series SS-3/AZ/WH97TAS Installation - Obsolete Juvenile Height SS-3/AZ/WH97TAS Express® Lavatory System (grades 6 thru 8 or 9) Figure 1a Figure 2 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805...
  • Page 7 3/8" bolts and washers to mount the frame to the wall (see Figure 4). Installation Instructions continue... FRAME (9) TORX-HEAD SCREW PANEL Figure 3 Figure 4 (10) 3/8" BOLTS AND WASHERS FRAME Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08...
  • Page 8 4. Tighten the screws installed in procedure #2 above to secure the bowl assembly to the frame. Do not overtighten. Installation Instructions continue... BACK VIEW Figure 5 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805...
  • Page 9 3/8" TUBE VERNATHERM™ THERMOSTATIC 3/8" FEMALE ELBOW MIXING VALVE CONNECTOR FLEXIBLE FLEXIBLE SUPPLY SUPPLY HOSE HOSE CONNECT CONNECT TO 1/2" TO 1/2" NPT NPT COLD HOT WATER STOP/STRAINER/CHECK WATER SUPPLY VALVE SUPPLY Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08...

  • Page 10: Wiring Diagram

    Note: For Express® units with optional soap dispensers, see pages 12-13 for soap dispenser maintenance instructions. Wiring Diagram 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805...

  • Page 11: Cleaning And Maintenance

    • Repair kit: In the unlikely event your Terreon® surface becomes damaged, it can easily and expensively be repaired. Contact your Bradley representative to order a repair kit and be sure to specify color when ordering.

  • Page 12: Soap Dispenser Maintenance

    Figure 7a ACTIVATION LABEL 204-476 (one above each activation zone) SOAP TANK 133-107 (GRAY) 133-131 (PUTTY) 133-131A (COAL) SOAP DISPENSER VALVE S09-007 FILLER HOLE qty. (2) Figure 7b 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805...

  • Page 13: Assembly Of Components

    Assembly of Components Optional Stop/Strainer/Check Valve ELBOW 90°, 3/8" TUBE 269-959 ELBOW 169-639 STOP/STRAINER/CHECK VALVE S60-003 Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08...
  • Page 14 Vernatherm™ Thermostatic Mixing Valve Drain Assembly Assembly S67-571 VERNATHERM VALVE (S01-116B) FLEX HOSE WITH SWIVEL END FILTER 269-653 WASHER 269-1188 STOP/CHECK VALVE S27-102 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805...

  • Page 15: Check Valve Troublshooting

    • reconnect to the adjacent valve and turn on electrical and water supplies to the unit; • pass your hand in front of the sensor. If the station still fails to turn on, replace the sensor (see page 14). Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08...
  • Page 16 Express® Lavatory System SS-Series SS-3/AZ/WH97TAS Installation - Obsolete Figure 12 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805...

  • Page 17: Vernatherm™ Mixing Valve

    No Water Cold Valve shuts off or drips Correct Correct Cold Cold Cold Reversed Cold Cold/below 107° Hot/above 107° Reversed No Water Reversed No Water Cold Cold Reversed Reversed Cold Cold Cold Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08...
